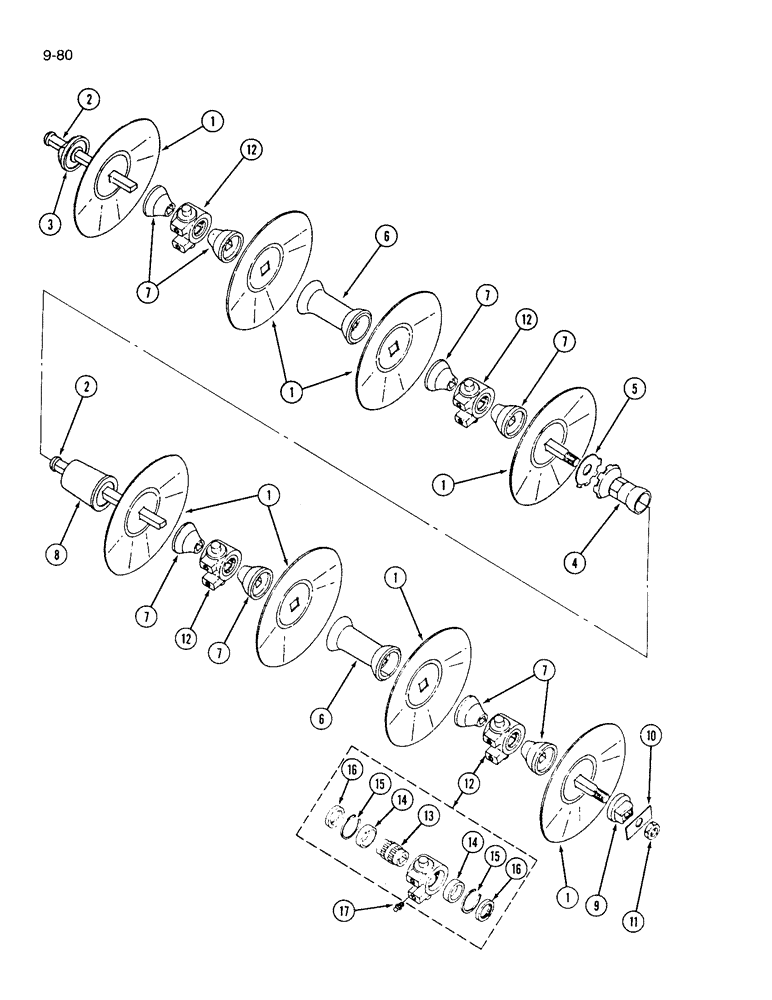

Запчасти Case IH 310 (9-080) - DISK GANG UNIT (09) - CHASSIS/ATTACHMENTS

1

482986R2

DISK HARROW

DISC - solid, 18 inch diameter x 4 mm thick, (24 used on 12 foot)

32шт.

1

482973R1

DISC

- solid, 20 inch diameter x 4.5 mm thick, (24 used on 12 foot)

32шт.

2

598040R1

BOLT,Rnd Cor Sq Hd, 1 1/8" - 7 x 52.60"

- rear, center and front gang arbor, (3 used on 12 foot)

4шт.

3

596769R1

SQ HOLE WASHER

WASHER - rear arbor bolt

1шт.

4

596770R1

CONNECTOR, ELEC

BALL - rear and center gang flex connection (2 used on 12 foot)

3шт.

5

596771R1

LOCK WASHER

LOCK - rear and front ball (2 used on 12 foot)

3шт.

6

596772R1

SPOOL

- rear, center and front gang disk spacing (15 used on 12 foot)

20шт.

7

596773R2

SPOOL

- rear, center and front gang bearing spacing (12 used on 12 foot)

16шт.

8

596779R1

HOLDER

- front and center gang ball (2 used on 12 foot)

3шт.

9

PA4167

WASHER

- front gang bolt

1шт.

10

P34101

LOCK

- arbor bolt nut

1шт.

11

425-1018

NUT,1 1/8"-7, G5

- hex, 1-1/8 inch NC

1шт.

12

596774R11

HOUSING

- rear, center and front gang bearing (6 used on 12 foot)

8шт.

13

469834R91

BEARING ASSY,29.36mm ID x 69.01mm OD x 41.27mm W

CONE - bearing

1шт.

14

518819R1

BEARING CUP,69.01mm OD x 15.08mm W

CUP - bearing

2шт.

15

597793R1

SNAP RING,#268, 2.868", Int

RING - shap, internal, bearing retaining

2шт.

16

597546R91

SEAL

- oil

2шт.

17

18425R91

LUBE NIPPLE,1/8"-27 NPT x .83" lg

FITTING - short straight relief, lube, 1/8 inch PTF (6 used on 12 foot)

8шт.
