Запчасти Case IH 310 (9-078) - GRAIN SEEDING TUBE HOLDER (09) - CHASSIS/ATTACHMENTS

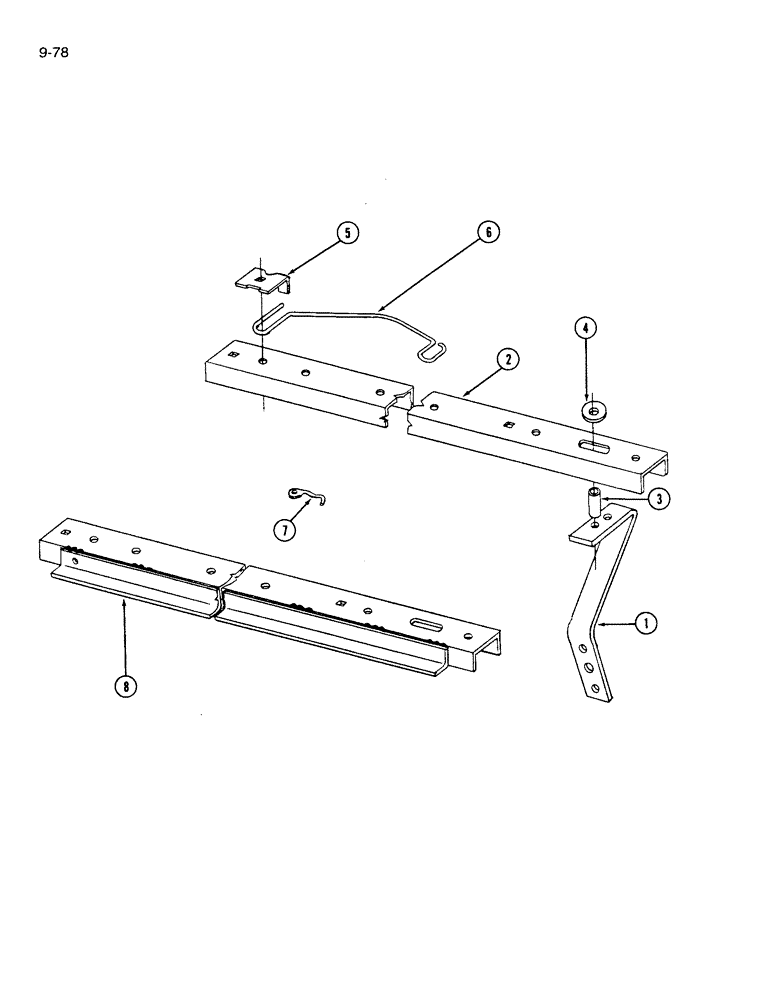

Схема запчастей Case IH 310 - (9-078) - GRAIN SEEDING TUBE HOLDER (09) - CHASSIS/ATTACHMENTS
6
8
2
1
3
7
4
5

Артикул

Название

Примечание

Количество

1

597014R2

BRACE

- channel support

2шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/2 inch

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

2

812958C1

CHANNEL

- tube holder support

1шт.

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

3

432984R2

SPACER,1/2" X-Strng Pipe x 1 7/8"

- pipe, 1/2 x 1-7/8 inch

1шт.

4

23175R1

WASHER - flat, 17/32 x 1-1/4 x 5/32 inch

1шт.

5

814870C1

SUPPORT

- tube holder

6шт.

6

814869C1

HOLDER

- seed tube

6шт.

466971R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT - round head square neck 1/2 NC x 2 inch

6шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

7

596932R2

GUIDE,0.375" Diameter, 2.6, 1.9" Length

- grain tube

1шт.

8

812958C1

CHANNEL

- support

1шт.

Выбрано товаров: 15
