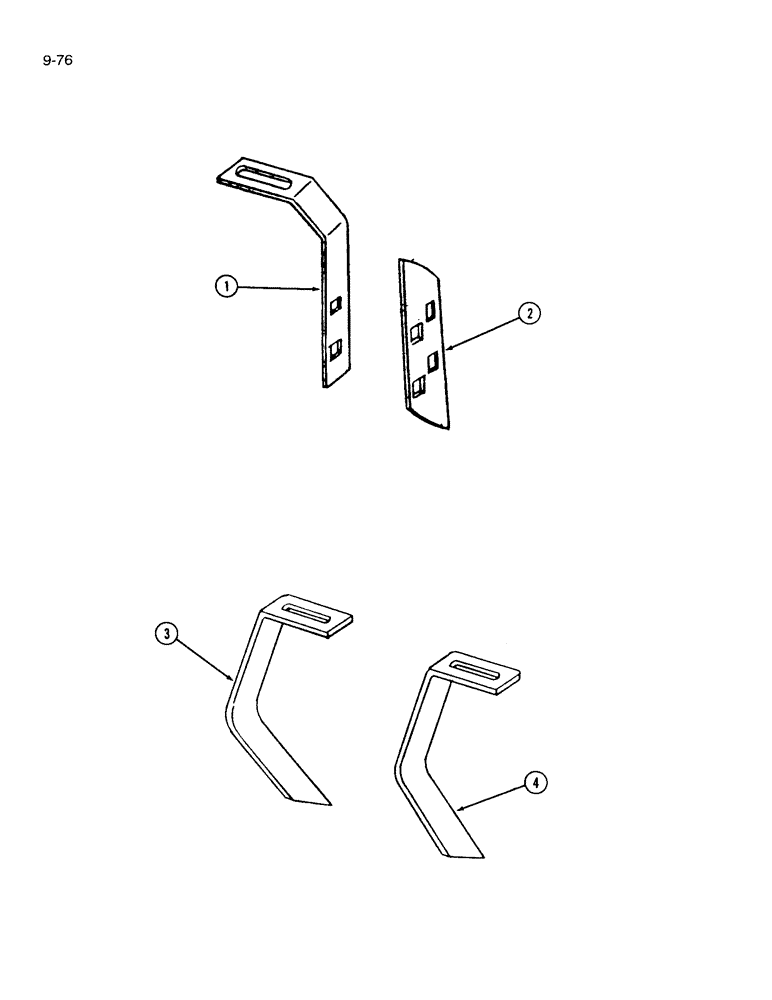

Запчасти Case IH 310 (9-076) - DISK SCRAPER (09) - CHASSIS/ATTACHMENTS

1

597015R1

SUPPORT

- disk scraper

8шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - round head square neck, 1/2 x 1-1/2 inch NC

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

2

597016R1

BLADE

- disk scraper

8шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

16шт.

425-106

NUT,3/8"-16, Cl 5

16шт.

492-11038

LOCK WASHER,3/8"

16шт.

3

598993R2

BAR

- spool trash, not used w/ scraper

5шт.

4

598994R2

BAR

- flex conn, trash, not used w/ scraper

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - round head square neck, 1/2 x 1-1/2 inch NC, trash bar, not used w/ scraper

6шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Trash bar, not used w/ scraper 1/2"-13, G5

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Trash bar, not used w/ scraper 1/2"

6шт.

178374R1

WASHER

- flat, 0.531 x 1.250 x 0.054 inch, trash bar, not used w/ scraper

6шт.
