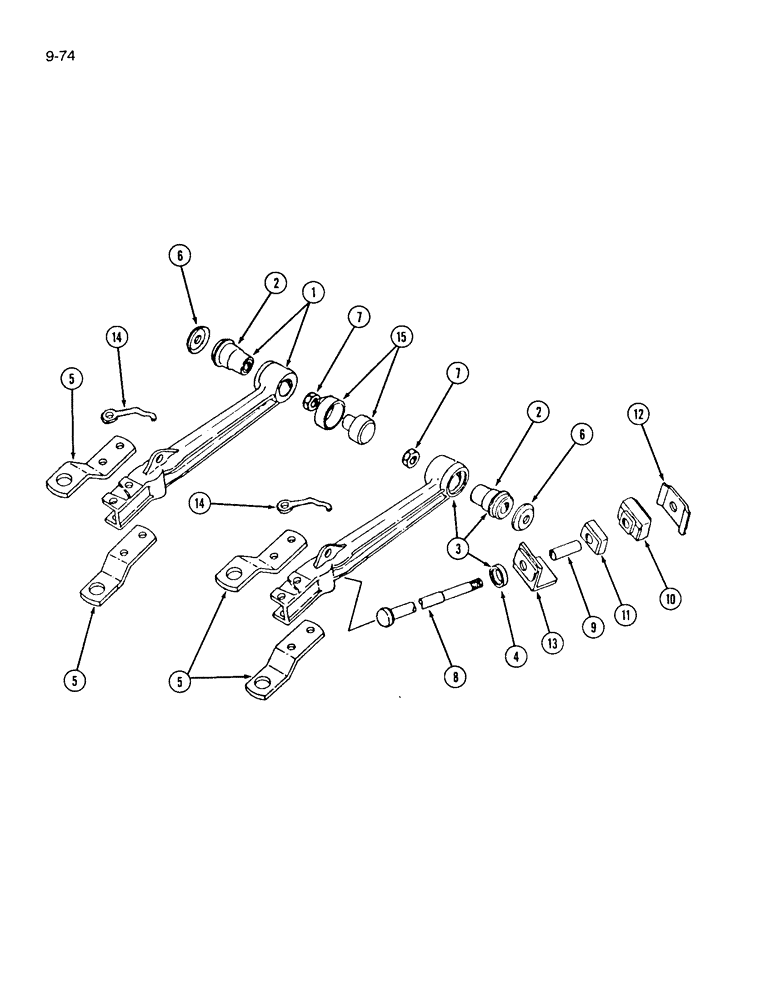

Запчасти Case IH 310 (9-074) - DISK GANG DRAG LINK (09) - CHASSIS/ATTACHMENTS

1

596780R11

LINK

- gang drag, front

1шт.

2

596781R1

BUSHING,15.95mm ID x 52.32mm OD x 65.02mm L

- drag link

2шт.

3

596782R11

LINK

- gang drag, rear

1шт.

4

596783R1

BUSHING

- thrust rod head seat

1шт.

5

596868R1

BRACE

- drag link

4шт.

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

6

596784R1

WASHER

- drag link front bushing

2шт.

7

596785R1

BUSHING

BAR - front bushing

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

318790C1

NUT

- hex slotted, 3/4-16 inch

1шт.

8

596786R1

ROD

- gang, thrust

1шт.

272334

SLOTTED NUT,3/4"-16, G5, Thk

NUT - hex slotted, 3/4-16 inch

1шт.

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.

9

596787R1

BUSHING

- thrust rod

1шт.

10

596788R1

THRUST RING

BUSHING - thrust rod, front

1шт.

11

421595C1

BUSHING

- thrust rod, rear

1шт.

12

596789R1

THRUST WASHER

- thrust rod front bushing

1шт.

13

596790R1

THRUST WASHER

- thrust rod rear bushing

1шт.

14

596932R2

GUIDE,0.375" Diameter, 2.6, 1.9" Length

- grain tube

2шт.

15

597182R91

TOOL KIT

KIT - gang drag link service tool

1шт.
