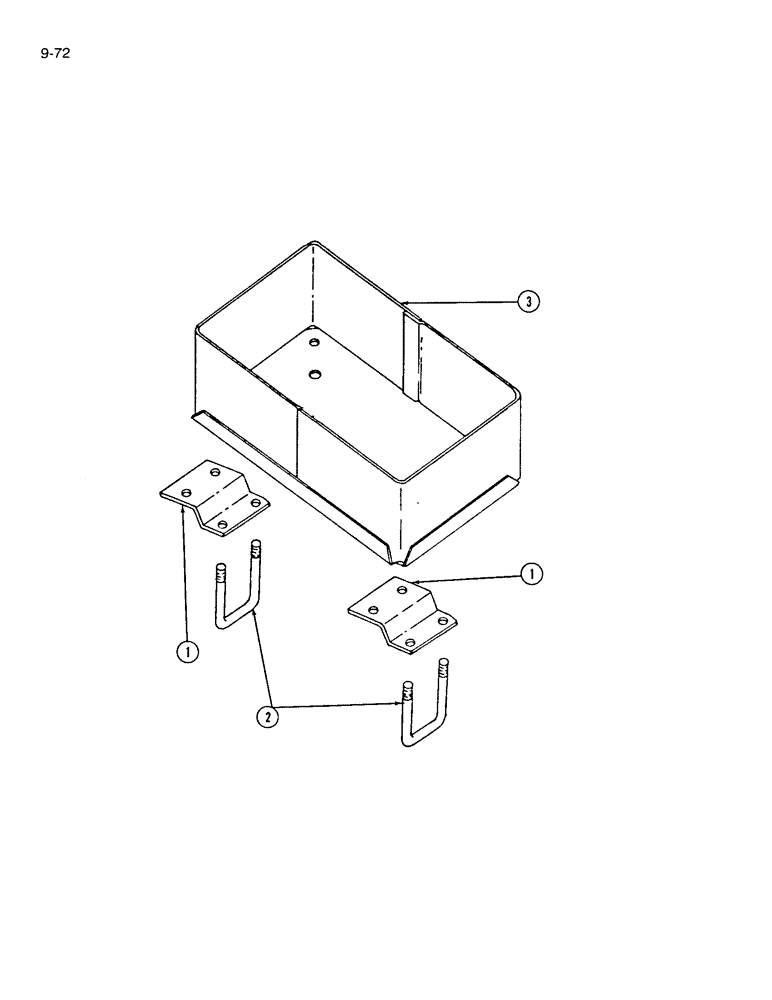

Запчасти Case IH 310 (9-072) - WEIGHT BOX, PRIOR TO 1981 SEASON (09) - CHASSIS/ATTACHMENTS

1

597022R1

BRACKET

- weight box support

2шт.

2

597023R1

BOLT,U, 5/8" - 11 x 7.50"

U-BOLT - support bracket

2шт.

425-1010

NUT,5/8"-11, G5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

3

604769R91

BOX

ASSEMBLY - weight

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/2 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

460908R1

WASHER

- flat, 0.531 x 1.500 x 0.105 inch

4шт.
