Запчасти Case IH 310 (9-064) - ROCKSHAFT, PRIOR TO 1981 SEASON (09) - CHASSIS/ATTACHMENTS

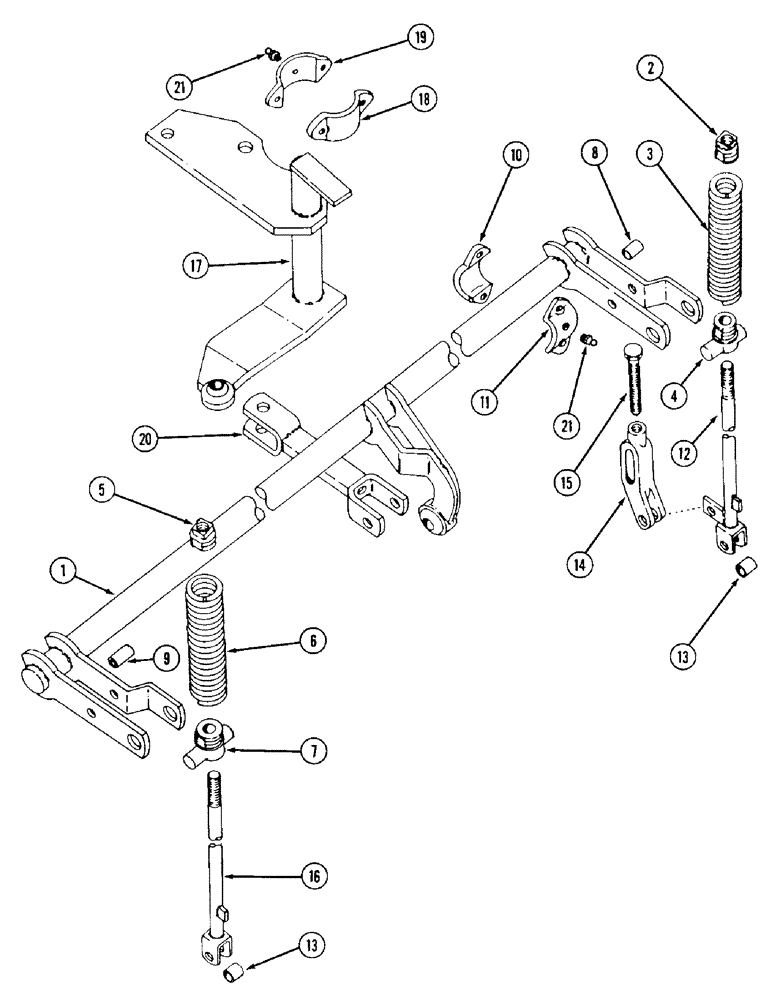

Схема запчастей Case IH 310 - (9-064) - ROCKSHAFT, PRIOR TO 1981 SEASON (09) - CHASSIS/ATTACHMENTS
21
10
11
12
1
19
8
21
16
14
9
4
2
3
13
13
7
17
20
15
18
6
5

Артикул

Название

Примечание

Количество

1

596747R94

ROCKSHAFT

ASSEMBLY - 12 foot, (Consists of 4, 7, 8, and 9)

1шт.

1

596757R94

ROCKSHAFT

ASSEMBLY - 16 foot, (Consists of 4, 7, 8, and 9)

1шт.

2

596793R1

PLUG

- spring, upper (3 used on 12 foot)

4шт.

3

596791R1

SPRING

- gang lift extension, (3 used on 12 foot)

4шт.

4

596755R1

PLUG

- rockshaft arm spring, (3 used on 12 foot)

4шт.

5

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

PLUG - rear spring upper

1шт.

6

596762R1

SPRING - gang lift rear extension

1шт.

7

596756R1

PLUG

- rockshaft arm rear spring

1шт.

8

568217R1

BUSHING,3/4" Tube x 1 1/4"

SPACER - tube, 17/32 ID x 1-1/4 inch, (3 used on 12 foot)

4шт.

433-844

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 3/4", Gr 5

BOLT - round head square neck, 1/2 NC x 3 inch (3 used on 12 foot)

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (3 used on 12 foot) 1/2"-13, G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (3 used on 12 foot) 1/2"

4шт.

9

552920R2

SPACER,3/4" Tube x 1 1/2"

- rockshaft arm, rear

1шт.

598816R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT - round head square neck, 1/2 NC x 3 inch

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

10

597976R1

CAP

- rockshaft bearing, inner, (5 used on 12 foot)

6шт.

11

597977R1

CAP

- rockshaft bearing, outer, (5 used on 12 foot)

6шт.

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

(10 used on 12 foot) Hex, 5/8"-11 x 2 1/2", G5

12шт.

425-1010

NUT,5/8"-11, G5

(10 used on 12 foot) 5/8"-11, G5

12шт.

12

596795R1

ROD

ASSEMBLY - gang lift spring, front

1шт.

425-1012

NUT,3/4"-10, G5

1шт.

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

13

596799R1

BUSHING

- spring rod, connecting, (4 used on 12 foot)

5шт.

14

596801R1

CLEVIS

- front gang stop

1шт.

N42024

HEADED PIN,15.88mm OD x 44.45mm L

PIN - 5/8 x 1-3/4 inch

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

15

596802R1

BOLT,Hex, 5/8" - 18 x 4 1/4", Gr 2

- front gang stop

1шт.

425-1110

NUT,5/8"-18, G5

- hex, 5/8 inch NC

1шт.

16

596800R1

ROD

ASSEMBLY - gang lift spring, (3 used on 12 foot)

4шт.

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(3 used on 12 foot) Hex, 1/2"-13 x 2", G5

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (3 used on 12 foot) 1/2"-13, G5

4шт.

425-1012

NUT,3/4"-10, G5

(3 used on 12 foot) 3/4"-10, G5

4шт.

17

596761R1

LEVER

ASSEMBLY - rockshaft lift

1шт.

18

597976R1

CAP

- lift lever bearing, inner

2шт.

19

597977R1

CAP

- lift lever bearing, outer

2шт.

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

20

596766R1

BAR

ASSEMBLY - lift connecting

1шт.

22095R1

PIN

- headed, 3/4 x 3 inch

2шт.

413-1624

BOLT,Hex, 1" - 8 x 1-1/2", Gr 5

PIN - cotter, 1/4 x 1-1/2 inch

2шт.

21

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.

Выбрано товаров: 43
