Запчасти Case IH 310 (9-062) - HITCH, 16 FRONT TRIPLEXED MACHINE, WITH TRACTOR REAR DUAL OR LARGE SINGLE ON THE LAND OPERATION (09) - CHASSIS/ATTACHMENTS

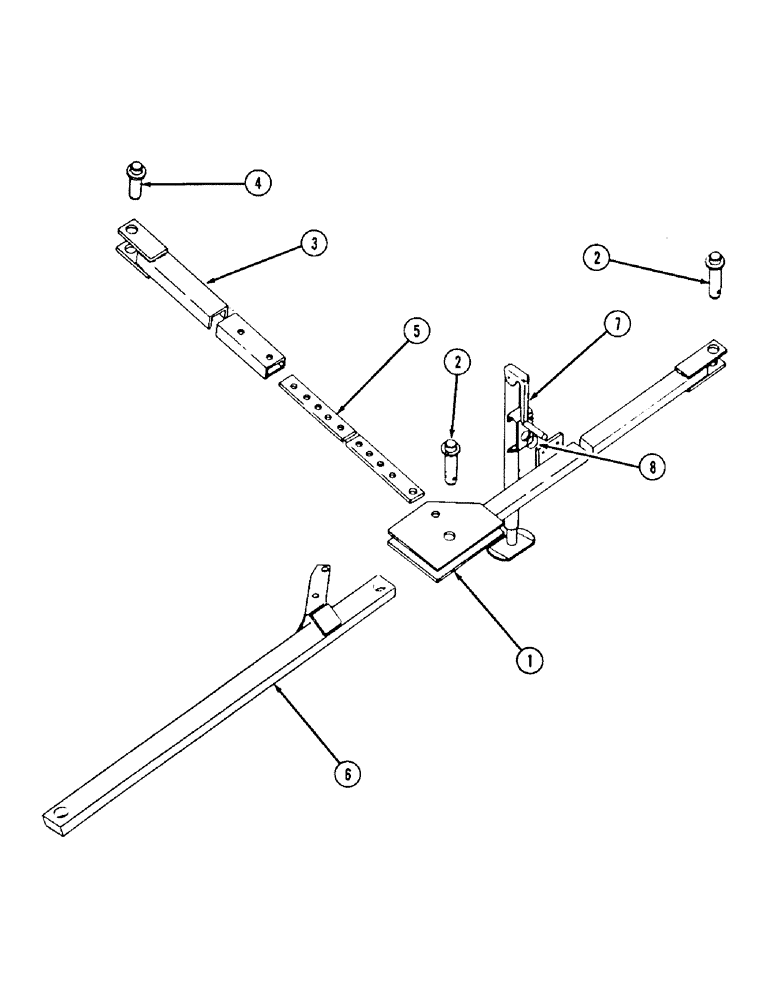

Схема запчастей Case IH 310 - (9-062) - HITCH, 16 FRONT TRIPLEXED MACHINE, WITH TRACTOR REAR DUAL OR LARGE SINGLE ON THE LAND OPERATION (09) - CHASSIS/ATTACHMENTS
7
6
1
3
5
2
2
4
8

Артикул

Название

Примечание

Количество

1

813700C1

BEAM

ASSEMBLY - 16 foot hitch, 171.05 inch

1шт.

2

813707C1

PIN

- hitch beam

2шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

4шт.

21214R1

WASHER

- flat, 1-5/32 x 2 x 7/64 inch

4шт.

3

813712C1

STABILIZER

ASSEMBLY - 16 foot hitch, 76.35 inch

1шт.

4

579043R1

PIN ASSEMBLY - hitch stabilizer

1шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

5

597059R1

BAR

- hitch stabilizer, adjusting, 48.3 inch

1шт.

5

597060R1

BAR

- hitch stabilizer, adjusting, 68.3 inch

1шт.

597061R2

PIN

- headed, 5/8 x 2.2 inch

2шт.

599744R1

AXLE PIN

PIN - hair, internal

2шт.

22313R1

PIN - headed, 7/8 x 3-1/2 inch

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

6

813716C1

ARM

ASSEMBLY - 16 foot hitch, 56.5 inch

1шт.

7

810009C91

JACK

ASSEMBLY - hitch

1шт.

8

24592R1

SNAP RING,#250, Ext

Ring, Snap, , jack #250, Ext

1шт.

Выбрано товаров: 16
