Запчасти Case IH 310 (9-060) - HITCH, 12 FRONT DUPLEXED OR TRIPLEXED & 16 FRONT DUPLEXED MACHINES (09) - CHASSIS/ATTACHMENTS

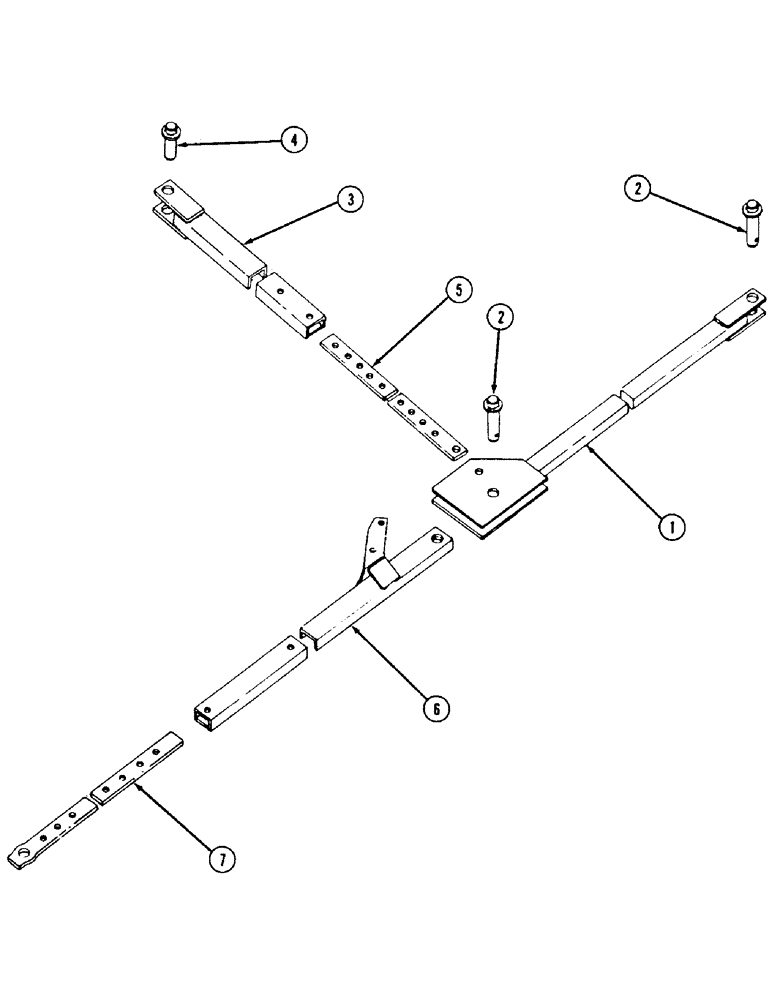

Схема запчастей Case IH 310 - (9-060) - HITCH, 12 FRONT DUPLEXED OR TRIPLEXED & 16 FRONT DUPLEXED MACHINES (09) - CHASSIS/ATTACHMENTS
4
6
7
3
2
1
2
5

Артикул

Название

Примечание

Количество

1

813745C1

BEAM

ASSEMBLY - 12 foot hitch, 115.05 inch

1шт.

1

813744C1

BEAM

ASSEMBLY - 16 foot hitch, 171.05 inch

1шт.

2

813707C1

PIN

- hitch beam

2шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

4шт.

21214R1

WASHER

- flat, 1-5/32 x 2 x 7/64 inch

4шт.

3

813740C1

STABILIZER

ASSEMBLY - hitch, 49.05 inch

1шт.

4

597043R1

PIN

ASSEMBLY - hitch stabilizer

1шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

5

597059R1

BAR

- hitch stabilizer, adjusting, 48.3 inch

1шт.

5

597060R1

BAR

- hitch stabilizer, adjusting, 68.3 inch

1шт.

597061R2

PIN

- headed, 5/8 x 2.2 inch

2шт.

599744R1

AXLE PIN

PIN - hair, internal

2шт.

23313R1

HEADED PIN,7/8" x 3 1/2"

PIN, HEADED, 7/8" x 3 1/2"

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

6

811435C2

ARM

ASSEMBLY - hitch steering, 45.5 inch

1шт.

7

597069R2

BAR

- extension, 47.0 inch

1шт.

597061R2

PIN

- headed, 5/8 x 2.2 inch

2шт.

1978738C1

HAIR PIN COTTER

internal

2шт.

Выбрано товаров: 18
