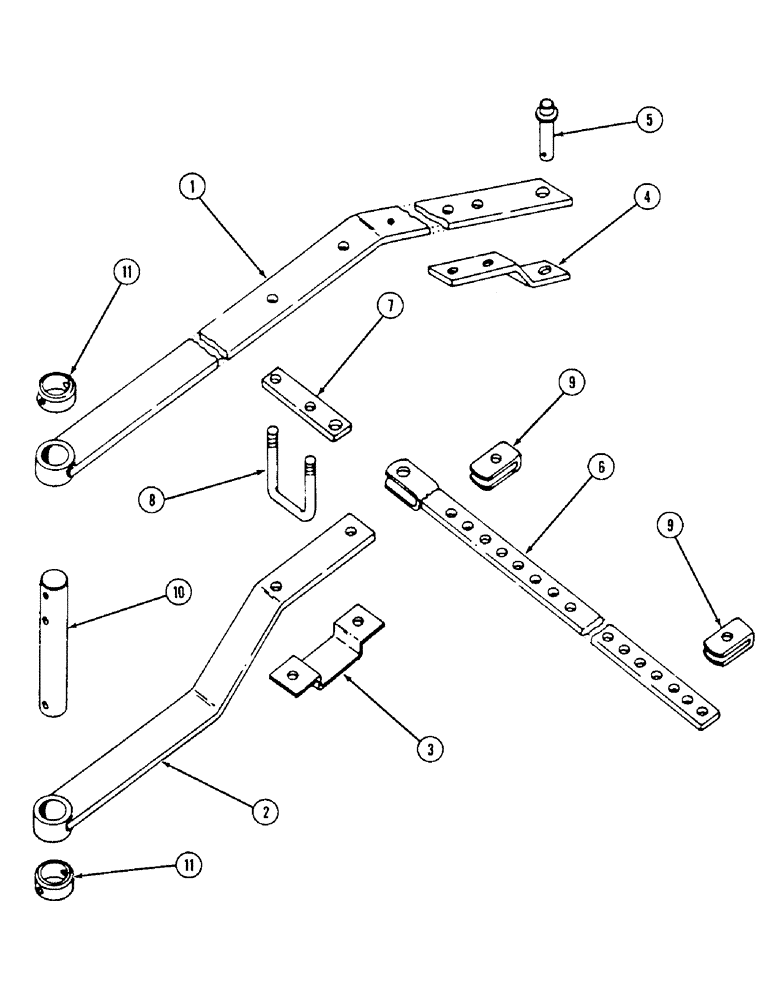

Запчасти Case IH 310 (9-054) - DUPLEX AND TRIPLEX HITCH STABILIZER (09) - CHASSIS/ATTACHMENTS

1

597087R1

BAR

ASSEMBLY - hitch connection, upper

1шт.

2

597090R1

BAR

ASSEMBLY - hitch connection, lower

1шт.

3

597092R1

CHANNEL

- hitch bar clamping

1шт.

113-902

BOLT,Hex, 1" - 8 x 3-1/2", Gr 5

2шт.

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

2шт.

4

597093R1

BRACE

- hitch connection

1шт.

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

2шт.

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

2шт.

5

597094R1

PIN

ASSEMBLY - hitch connection

1шт.

21214R1

WASHER

- flat, 1-5/32 x 2 x 7/64 inch

1шт.

6

597085R1

BAR

ASSEMBLY - stabilizer adjusting

1шт.

22096R1

HEADED PIN,3/4" x 2 1/4"

PIN - headed, 3/4 x 2-1/4 inch

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

7

597084R1

BAR

- connection, stabilizer

1шт.

8

597023R1

BOLT,U, 5/8" - 11 x 7.50"

U-BOLT - stabilizer bar

1шт.

425-1010

NUT,5/8"-11, G5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

9

597168R1

YOKE

- adjusting bar stop

2шт.

21849R1

PIN - 5/8 x 2-1/8 inch 5/8" x 2 1/8"

2шт.

432-1216

COTTER PIN,3/16" x 1"

2шт.

10

597097R1

BAR

- rear wheelbeam pivot 15 inch (Duplexed or triplexed machine)

1шт.

Q846

PIN,7/16" x 3 3/8"

- 7/16 x 3-3/8 inch

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

10

604738R1

BUSHING

SPACER - pivot bar

2шт.

Q846

PIN,7/16" x 3 3/8"

- 7/16 x 3-3/8 inch

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.
