Запчасти Case IH 310 (9-052) - PACKER HITCH (09) - CHASSIS/ATTACHMENTS

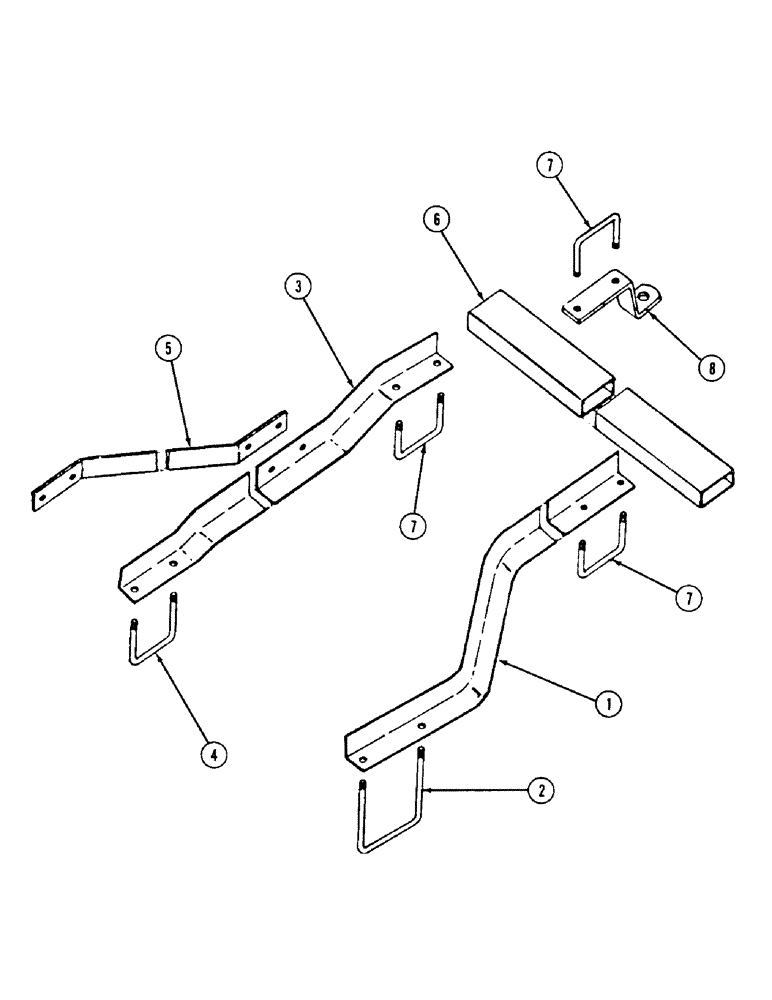

Схема запчастей Case IH 310 - (9-052) - PACKER HITCH (09) - CHASSIS/ATTACHMENTS
1
5
7
7
4
6
3
7
2
8

Артикул

Название

Примечание

Количество

1

597142R2

SUPPORT

- hitch tube, rear

1шт.

2

596905R1

BOLT,U, 5/8" - 11 x 9.63"

U BOLT - support clamping, (1 used on 12 foot)

2шт.

425-1010

NUT,5/8"-11, G5

(2 used on 12 foot) 5/8"-11, G5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (2 used on 12 foot) 5/8"

4шт.

3

597140R1

SUPPORT

- hitch tube, front

1шт.

4

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- support, clamping, 5/8 inch NC

4шт.

425-1010

NUT,5/8"-11, G5

(2 used on 12 foot) 5/8"-11, G5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (2 used on 12 foot) 5/8"

4шт.

597141R1

BRACE

- front support

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

113-696

BOLT - hex, 5/8 NC x 6-1/4 inch Hex, 5/8"-11 x 6 1/4", G5

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

597143R1

TUBE

- 12 foot Packer hitch

1шт.

6

597144R1

TUBE

- 16 foot Packet hitch

1шт.

7

597145R1

BOLT,U, 1/2" - 13 x 3 1/8"

U-BOLT - hitch tube clamping, (5 used on 12 foot)

7шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (10 used on 12 foot) 1/2"-13, G5

14шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (10 used on 12 foot) 1/2"

14шт.

597146R1

BRACE

- Packer hitch, (3 used on 12 foot)

4шт.

Выбрано товаров: 19
