Запчасти Case IH 310 (9-042) - FRONT FURROW WHEEL STEERING (09) - CHASSIS/ATTACHMENTS

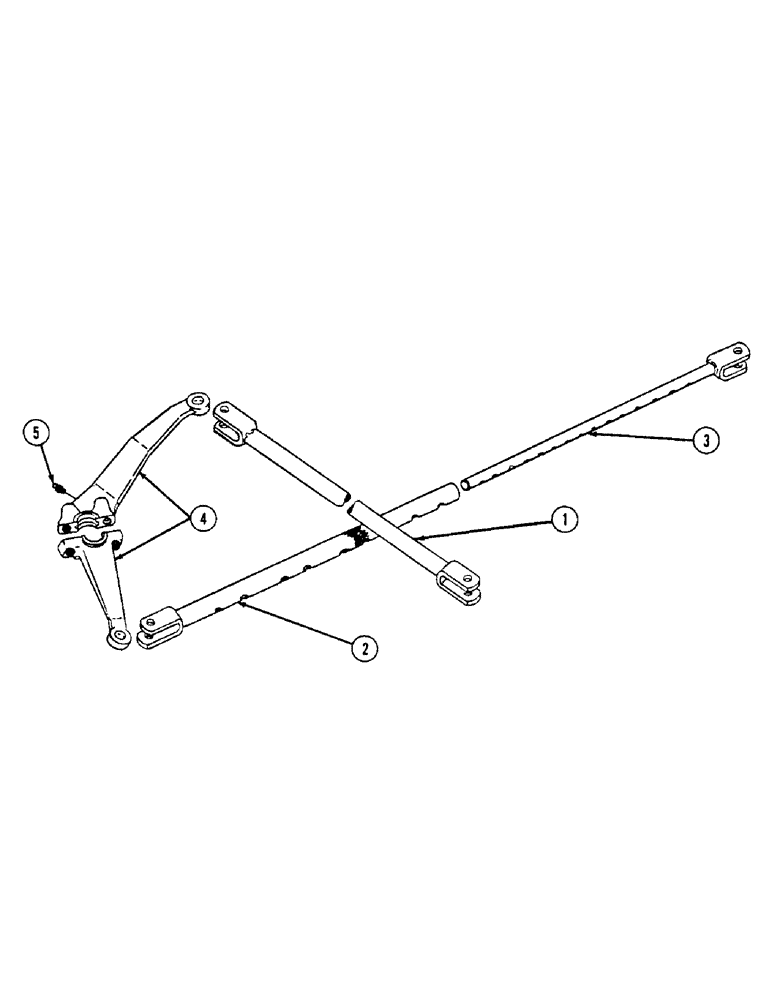

Схема запчастей Case IH 310 - (9-042) - FRONT FURROW WHEEL STEERING (09) - CHASSIS/ATTACHMENTS
2
5
3
4
1

Артикул

Название

Примечание

Количество

1

597070R1

ROD

ASSEMBLY - front wheel, tie, 75.2 inch

1шт.

22095R1

PIN

- headed, 3/4 x 3 inch

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

2

597074R1

TUBE

ASSEMBLY - hitch, steering, 65.5 inch

1шт.

22095R1

PIN

- headed, 3/4 x 3 inch

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

3

597079R1

ROD

ASSEMBLY - hitch, steering, 62.1 inch

1шт.

597078R1

PIN

- headed, special, 3/8 x 2-1/4 inch

2шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - cotter

2шт.

22095R1

PIN

- headed, 3/4 x 3 inch

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

4

597081R94

LEVER

ASSEMBLY - hitch, steering

1шт.

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

5

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

Выбрано товаров: 14
