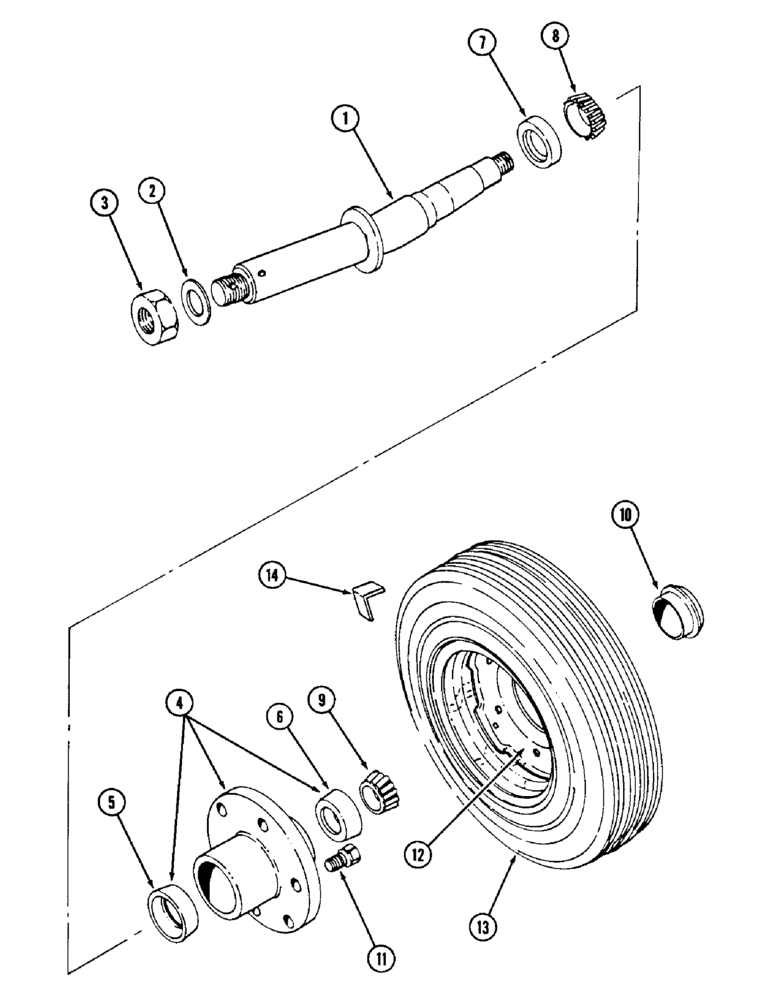

Запчасти Case IH 310 (9-038) - FRONT FURROW WHEEL (09) - CHASSIS/ATTACHMENTS

1

596831R1

AXLE

ASSEMBLY - front furrow wheel

1шт.

608700R1

WASHER

- flat, 1-9/32 x 2 x 3/64 inch

1шт.

23477R1

COTTER PIN,5/64" x 5/8"

WASHER - 2.156 x 3.000 x 0.067 inch

1шт.

95-81032

WASHER,29/32" x 2" x .179"

- flat, 29/32 x 2 x 5/32 inch

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted 7/8 inch NC

1шт.

2

604925R1

WASHER

- flat, 1.344 x 2.750 x 0.250 inch

1шт.

3

596834R1

BAR

NUT - hex, wheel axle adjuster

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

4

606468R11

HUB

ASSEMBLY - front furrow wheel

1шт.

5

663558R1

BEARING CUP

CUP - bearing, inner 2-57/64 inch OD

1шт.

6

651817R1

BEARING CUP

CUP - bearing, outer

1шт.

6

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

7

606556R91

OIL SEAL

SEAL - wheel hub oil

1шт.

8

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - bearing, inner 1-5/8 inch ID

1шт.

9

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, outer

1шт.

10

663906R1

CAP

- wheel hub

1шт.

11

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

- wheel

6шт.

12

598999R1

RIM

WHEEL - 10 x 5 inch LB burrow

1шт.

13

REF

INSTRUCTION

TIRE - 11L-15 6 PR I-1, rib tread, tubeless

1шт.

810769C1

VALVE

- tubeless tire, steel

1шт.

14

811382C1

PACKAGE

KIT - tire valve guard service (Consists of 12 guards and 1 set of instructions)

1шт.

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.
