Запчасти Case IH 310 (9-034) - DUAL REAR FURROW WHEEL, USE ON REAR OF SINGLE, DUPLEX OR TRIPLEX (09) - CHASSIS/ATTACHMENTS

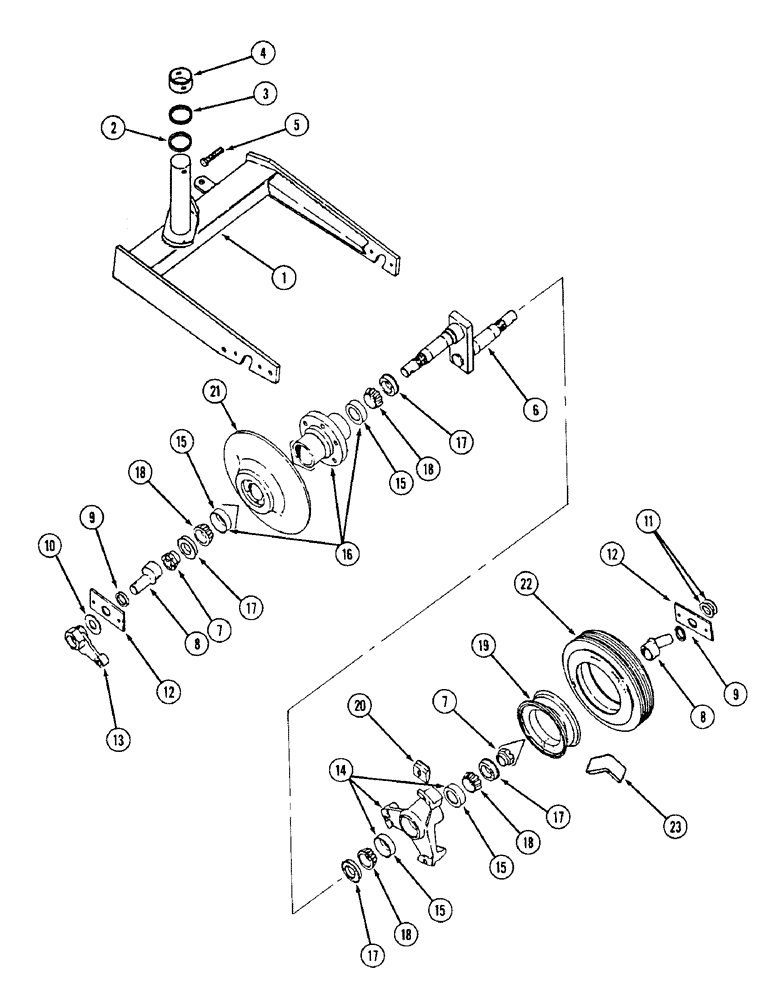

Схема запчастей Case IH 310 - (9-034) - DUAL REAR FURROW WHEEL, USE ON REAR OF SINGLE, DUPLEX OR TRIPLEX (09) - CHASSIS/ATTACHMENTS
18
17
22
4
2
15
17
18
3
15
9
11
6
5
10
7
1
14
17
9
23
7
21
19
16
13
15
8
12
8
18
17
18
12
20
15

Артикул

Название

Примечание

Количество

1

596870R1

FORK

ASSEMBLY - dual rear wheel

1шт.

2

521159R1

WASHER

- flat, 2-5/16 x 3 x 3/32 inch

2шт.

3

22188R1

WASHER

- 2.281 x 3.000 x 0.067 inch

1шт.

4

604738R1

BUSHING

SPACER - axle support, locking

1шт.

Q846

PIN,7/16" x 3 3/8"

- 7/16 x 3-3/8 inch

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

5

465645R1

BOLT - hex, 3/4 NC x 3-1/2 inch

1шт.

425-1012

NUT,3/4"-10, G5

1шт.

6

596878R1

AXLE

ASSEMBLY - dual rear wheel

1шт.

7

596881R1

NUT

- hex, slotted special, 1-1/2-12 inch

2шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

8

604728R1

EXTENSION

- axle

2шт.

616387R1

PIN,3/8" x 2", Coiled

3шт.

9

608700R1

WASHER

- flat, 1-9/32 x 2 x 3/64 inch

2шт.

10

195-2120

WASHER,1.28" ID x 2" OD x 0.24" Thk

- flat, 1-9/32 x 2 x 1/4 inch

2шт.

11

608700R1

WASHER

- flat, 1-9/32 x 2 x 3/64 inch

1шт.

12

604733R1

PLATE

BLOCK - fork locking

2шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

13

604727R1

BRACKET

CRANK - furrow wheel, locating

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

21401R1

HEADED PIN,3/4" x 2 3/4"

PIN - headed, 3/4 x 2-3/4 inch

1шт.

599744R1

AXLE PIN

PIN - hair, internal type

1шт.

14

596882R11

HUB

ASSEMBLY - transport wheel

1шт.

15

663558R1

BEARING CUP

CUP - inner bearing, 2-57/64 inch OD

4шт.

16

596883R11

HUB

ASSEMBLY - furrow wheel

1шт.

17

606556R91

OIL SEAL

SEAL - wheel hub oil

4шт.

18

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - bearing, inner, 1-5/8 inch ID

4шт.

19

604739R1

RIM

WHEEL - 15 x 5 KB, rear transport

1шт.

20

604725R1

CLAMP

- rear transport wheel

3шт.

114-405

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- hex, 1/2 NC x 1-3/4 inch

3шт.

178374R1

WASHER

- flat, 0.531 x 1.250 x 0.054 inch

3шт.

21

604726R1

WHEEL

- rear furrow

1шт.

NLS

NO LONGER SERVICED

BOLT - hex, 1/2 NC x 3-3/4 inch

6шт.

22

REF

INSTRUCTION

TIRE - 6.70-15 6 PR I-1 tubeless

1шт.

810769C1

VALVE

- tubeless tire, steel

1шт.

23

811382C1

PACKAGE

KIT - tire valve guard service (Consists of 12 guards and 1 set of instructions)

1шт.

Выбрано товаров: 37
