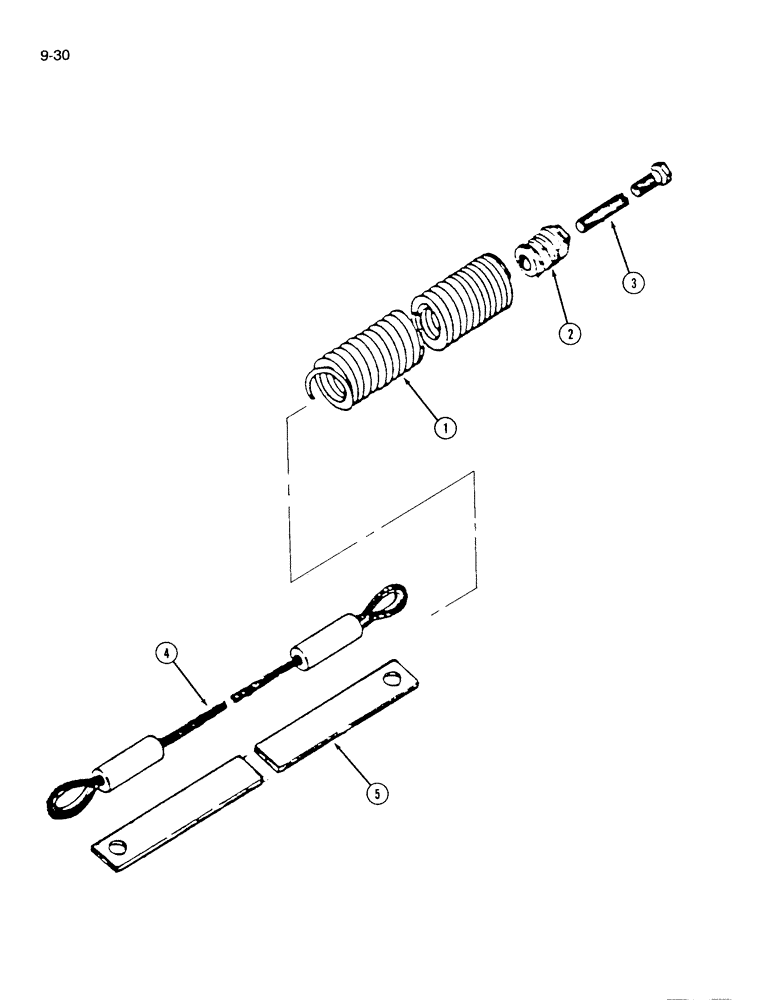

Запчасти Case IH 310 (9-030) - REAR FURROW WHEEL RETURN SPRING, SPECIAL (09) - CHASSIS/ATTACHMENTS

1

590259R1

SPRING

- rear wheel return

1шт.

2

590001R1

PLUG

- return spring

1шт.

3

612235R1

BOLT,Hex, 1/2" - 13 x 7"

- return spring, adjusting

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

4

597026R1

CABLE

- return spring, (for use with single rear furrow wheel)

1шт.

484623R1

ANGLE

WASHER - flat 0.656 x 1.500 x 0.105 inch

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

5

597027R1

BAR

- return spring, (for use with dual furrow wheel)

1шт.

21957R

PIN - headed, 5/8 x 2 inch

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.
