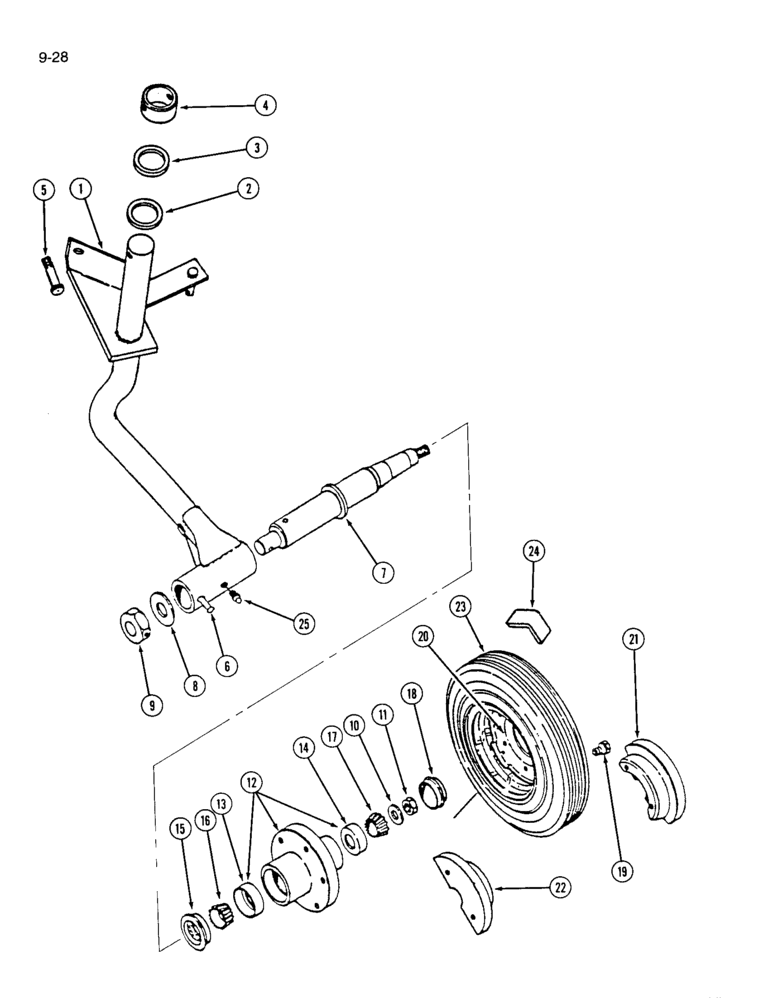

Запчасти Case IH 310 (9-028) - SINGLE REAR FURROW WHEEL (09) - CHASSIS/ATTACHMENTS

1

596863R1

SUPPORT

ASSEMBLY - rear wheel axle

1шт.

2

521159R1

WASHER

- flat, 2-5/16 x 3 x 3/32 inch

2шт.

3

22188R1

WASHER

- flat, 2.281 x 3.00 x 0.067 inch

1шт.

4

604738R1

BUSHING

SPACER - axle support, locking

1шт.

Q846

PIN,7/16" x 3 3/8"

- 7/16 x 3-3/8 inch

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

5

462645R1

BOLT,Hex, 3/4" - 10 x 3 1/2", Full Thd

- hex, 3/4 NC x 3-1/2 inch

1шт.

425-1012

NUT,3/4"-10, G5

1шт.

6

24478R1

HEADED PIN,5/8" x 3 1/4"

PIN - headed, 5/8 x 3-1/4 inch

1шт.

599744R1

AXLE PIN

PIN - hair, internal type

1шт.

7

596831R1

AXLE

ASSEMBLY - single rear wheel

1шт.

608700R1

WASHER

- flat, 1-9/32 x 2 x 3/64 inch

1шт.

195-120

WASHER,2 1/4" x 4 3/4" x .220"

- flat, 2-3/8 x 4-3/4 x 7/32 inch

1шт.

8

604925R1

WASHER

- flat, 1.344 x 2.750 x 0.250 inch

1шт.

9

596834R1

BAR

- furrow wheel, adjusting

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

10

95-81032

WASHER,29/32" x 2" x .179"

- flat, 29/32 x 2 x 5/32 inch

1шт.

11

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted 7/8 inch NC

1шт.

12

606468R21

HUB

ASSEMBLY - rear furrow wheel

1шт.

13

663558R1

BEARING CUP

CUP - bearing, inner, 2-57/64 inch OD

1шт.

14

651817R1

BEARING CUP

CUP - bearing, outer

1шт.

14

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

15

606556R91

OIL SEAL

SEAL - wheel hub, oil

1шт.

16

63557R91

CONE - bearing, inner, 1-5/8 inch ID

1шт.

17

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, outer

1шт.

18

663906R1

CAP

- wheel hub

1шт.

19

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

- wheel

6шт.

20

604700R91

RIM

WHEEL - rear furrow, 15 x 5 KB

1шт.

21

604753R1

WEIGHT

- rear wheel, small

2шт.

22

604754R1

WEIGHT

- rear wheel, large

2шт.

413-8128

BOLT,Hex, 1/2" - 13 x 8", Gr 5

- hex, 1/2 NC x 8 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

23

REF

INSTRUCTION

TIRE - 7.60 x 15, 6 PR I-1, tubeless

1шт.

810769C1

VALVE

- tubeless tire, steel

1шт.

24

811382C1

PACKAGE

KIT - tire valve guard service (Consists of 12 guards and 1 set of instructions)

1шт.

25

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.
