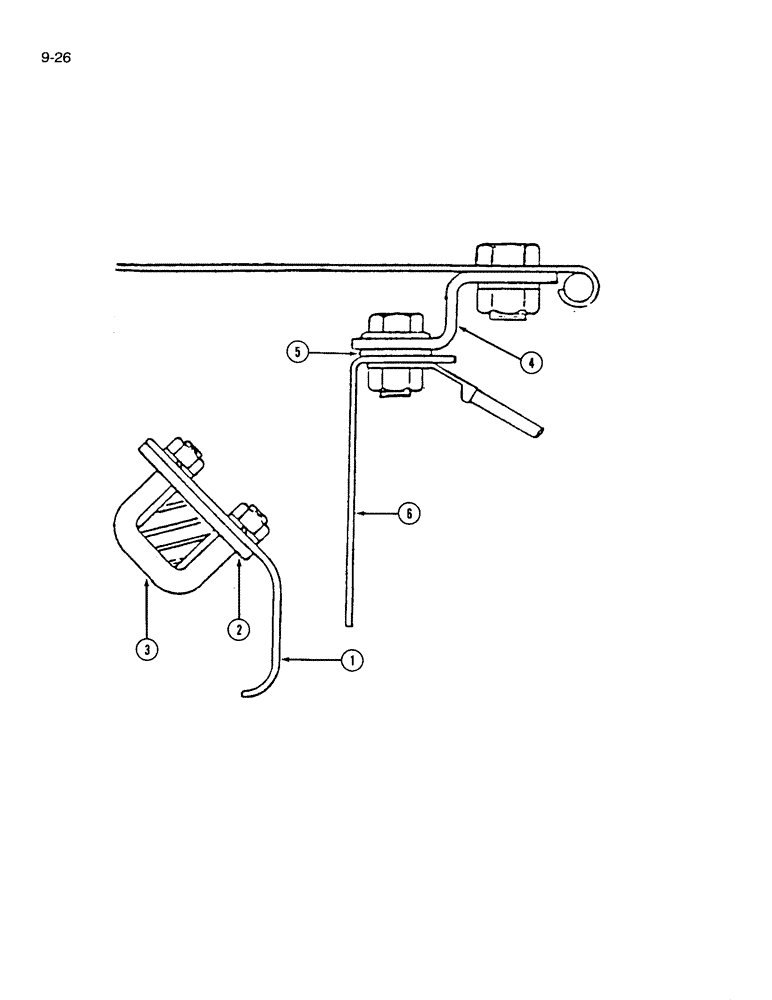

Запчасти Case IH 310 (9-026) - FEED SHAFT ROTATION INDICATOR (09) - CHASSIS/ATTACHMENTS

1

816791C1

CLIP

- indicator retaining

1шт.

2

816792C1

STRAP

BRACKET - indicator retaining

1шт.

3

11261R

U-BOLT

- indicator dip

1шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

816789C1

BRACKET

- indicator contact

1шт.

5

117960

GROMMET,5/16" ID x .719" x .188"

- rubber, No. 4

2шт.

6

816790C1

ANGLE

BRACKET - indicator contact

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

2шт.
