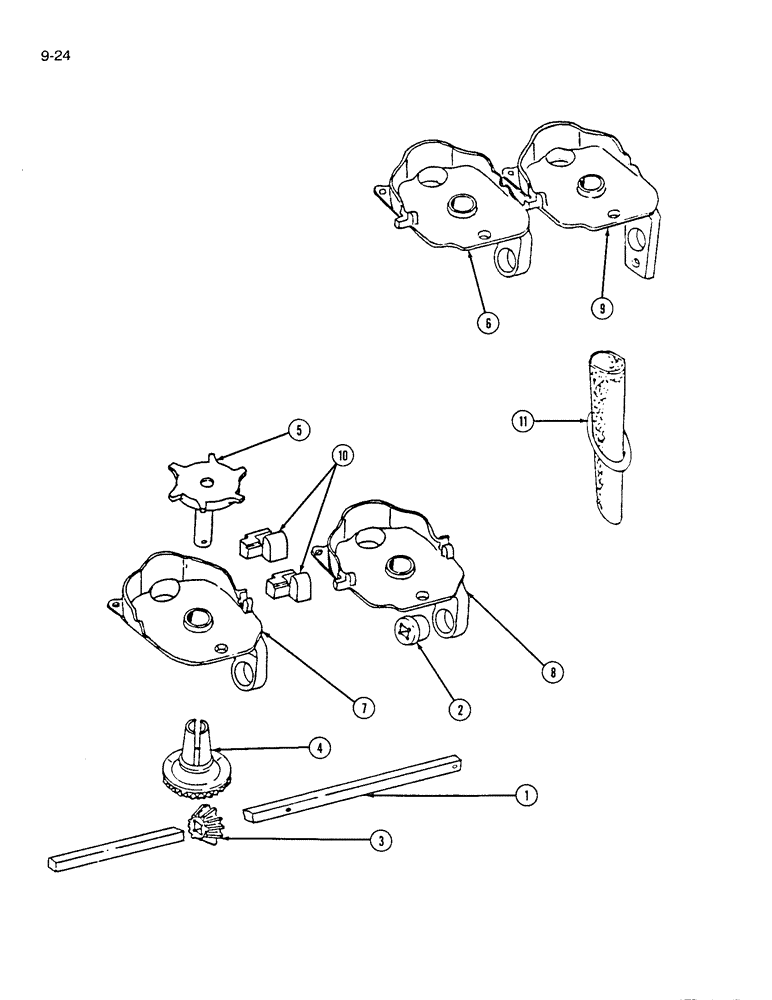

Запчасти Case IH 310 (9-024) - FERTILIZER FEED SHAFT (09) - CHASSIS/ATTACHMENTS

1

811450C1

BAR

- fertilizer feed shaft, (12 foot)

2шт.

1

811494C1

BAR

- fertilizer feed shaft, (16 foot)

2шт.

112050

PIN,4.76mm OD x 22.23mm L

- square end, straight 3/4 x 7/8 inch

2шт.

432-1216

COTTER PIN,3/16" x 1"

2шт.

M76123

WASHER,19/32" x 1 1/4" x .105", Sq Hole

- flat, 0.594 square x 1.250 x 0.090 inch

1шт.

2

603462R1

TRUNNION

TRUNION - bevel pinion, (24 used on 12 foot)

32шт.

3

603463R2

GEAR

- 12 tooth bevel pinion, (24 used on 12 foot)

32шт.

4

F282C

GEAR

- feed shaft bevel, (24 used on 12 foot)

32шт.

5

602554R11

DRIVE SPROCKET

WHEEL ASSEMBLY - star feed (Includes one N62414 pin) (24 used on 12 foot)

32шт.

N62414

PIN,3.96mm OD x 28mm L

- shear, (24 used on 12 foot)

32шт.

6

603451R2

PLATE

- bottom end, left

2шт.

7

603452R2

PLATE

- bottom end, right

2шт.

8

603453R2

PLATE

- bottom, intermediate, (16 used on 12 foot)

24шт.

9

603454R1

PLATE

- bottom, with hanger

4шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch, (32 used on 12 foot)

48шт.

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

Slotted Flat Hd, 1/4"-20 x 5/8" (16 used on 12 foot)

24шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, (48 used on 12 foot)

72шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (48 used on 12 foot) 1/4"

72шт.

10

815390C1

SPACER

- bottom plate, (16 foot)

4шт.

10

603457R1

SPACER

- bottom plate, (22 used on 12 foot)

26шт.

11

607289R2

TUBE,1.25" OD, 7" Length

- combined delivery, fertilizer, (24 used on 12 foot)

32шт.
