Запчасти Case IH 310 (9-018) - FERTILIZER DROP BOTTOM (09) - CHASSIS/ATTACHMENTS

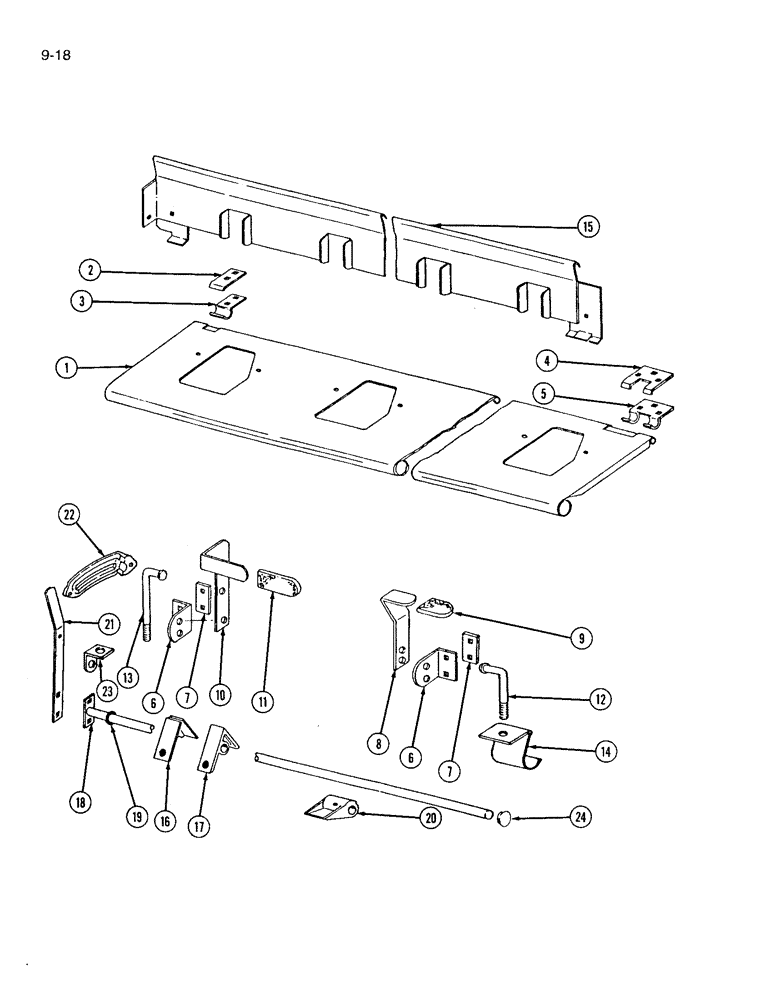

Схема запчастей Case IH 310 - (9-018) - FERTILIZER DROP BOTTOM (09) - CHASSIS/ATTACHMENTS
14
11
1
15
5
19
16
6
8
9
23
6
22
7
18
12
21
2
4
24
10
13
17
7
20
3

Артикул

Название

Примечание

Количество

1

816217C1

BOTTOM

ASSEMBLY - fertilizer drop, left, (12 foot)

1шт.

1

816218C1

BOTTOM

ASSEMBLY - fertilizer, drop, right, (12 foot)

1шт.

1

811484C1

BOTTOM

ASSEMBLY - fertilizer drop, (16 foot)

2шт.

2

604403R1

CLAMP

STOP - drop bottom hinge

1шт.

3

604404R1

CLAMP

HINGE - drop bottom, (8 used on 12 foot)

10шт.

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch, (16 used on 12 foot)

20шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5 (16 used on 12 foot)

20шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (16 used on 12 foot) 1/4"

20шт.

4

815373C1

STOP

- drop bottom hinge outer, (12 foot)

2шт.

5

815374C1

HINGE

- drop bottom outer, (12 foot)

2шт.

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

6шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

6

603498R1

ANGLE

- drop bottom lever, (8 used on 12 foot)

10шт.

7

603587R1

BAR

- lever angle reinforcing, (8 used on 12 foot)

10шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch (16 used on 12 foot)

20шт.

425-106

NUT,3/8"-16, Cl 5

- hex, 5/16 inch (16 used on 12 foot)

20шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (16 used on 12 foot) 5/16"

20шт.

8

815377C1

LEVER

- drop bottom short, (6 used on 12 foot)

8шт.

118059

RIVET,FH, 3/8" x 9/16"

- 3/8 x 9/16 inch, flat head, small, (6 used on 12 foot)

8шт.

9

815378C1

GRIP

- drop bottom short lever, (6 used on 12 foot)

8шт.

10

603501R1

LEVER

- drop bottom long

2шт.

118059

RIVET,FH, 3/8" x 9/16"

- 3/8 x 9/16 inch, flat head, small

2шт.

11

815379C1

GRIP

- drop bottom long lever

2шт.

12

603469R1

BOLT,3/8" - 16 x 3.3", Steel

- drop bottom, short, (6 used on 12 foot)

8шт.

13

603470R1

BOLT,3/8" - 16 x 5.1", Steel

- drop bottom, long

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

14

603497R1

CATCH

- drop bottom, (8 used on 12 foot)

10шт.

15

811417C1

PANEL

ASSEMBLY - fertilizer back, right (12 foot)

1шт.

15

811415C1

PANEL

ASSEMBLY - fertilizer back, left hand (12 foot)

1шт.

15

811490C1

PANEL

ASSEMBLY - fertilizer back (16 foot)

2шт.

16

607276R2

SUPPORT

BOLT - round head square neck, 1/4 NC x 1/2 inch (10 used on 12 foot)

14шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch (11 used on 12 foot)

14шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, (10 used on 12 foot)

14шт.

425-106

NUT,3/8"-16, Cl 5

(11 used on 12 foot) 3/8"-16, G5

14шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (10 used on 12 foot) 1/4"

14шт.

492-11038

LOCK WASHER,3/8"

(11 used on 12 foot) 3/8"

14шт.

17

603455R1

LEVER GUIDE

BEARING - gate rod center, (12 foot)

1шт.

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - round head square neck, 1/4 NC x 3/4 inch

1шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

18

811426C1

ROD

ASSEMBLY - gate, (12 foot)

2шт.

18

800531C1

ROD ASSEMBLY - gate, (16 foot)

2шт.

19

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- fertilizer gare rod

2шт.

20

816736C1

GATE ASSY

GATE - fertilizer feed, (24 used on 12 foot)

32шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch, (24 used on 12 foot)

32шт.

252552C1

NUT

- weld, 1/4 inch NC, (24 used on 12 foot)

32шт.

21

605116R1

LEVER

- fertilizer indicator

2шт.

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - round head square neck, 1/4 NC x 3/4 inch

4шт.

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - round head square neck, 5/16 NC x 1 inch

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

7500032

BUSHING

NUT - wing, 5/16 inch NC

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

22

604128R1

INDICATOR

- fertilizer feed left

1шт.

22

604129R1

INDICATOR

- fertilizer feed, right

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

4шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

23

Not used in this application

1шт.

24

Not used in this application

1шт.

Выбрано товаров: 61
