Запчасти Case IH 310 (9-006) - GRAIN AND FERTILIZER HOPPER UNIT (09) - CHASSIS/ATTACHMENTS

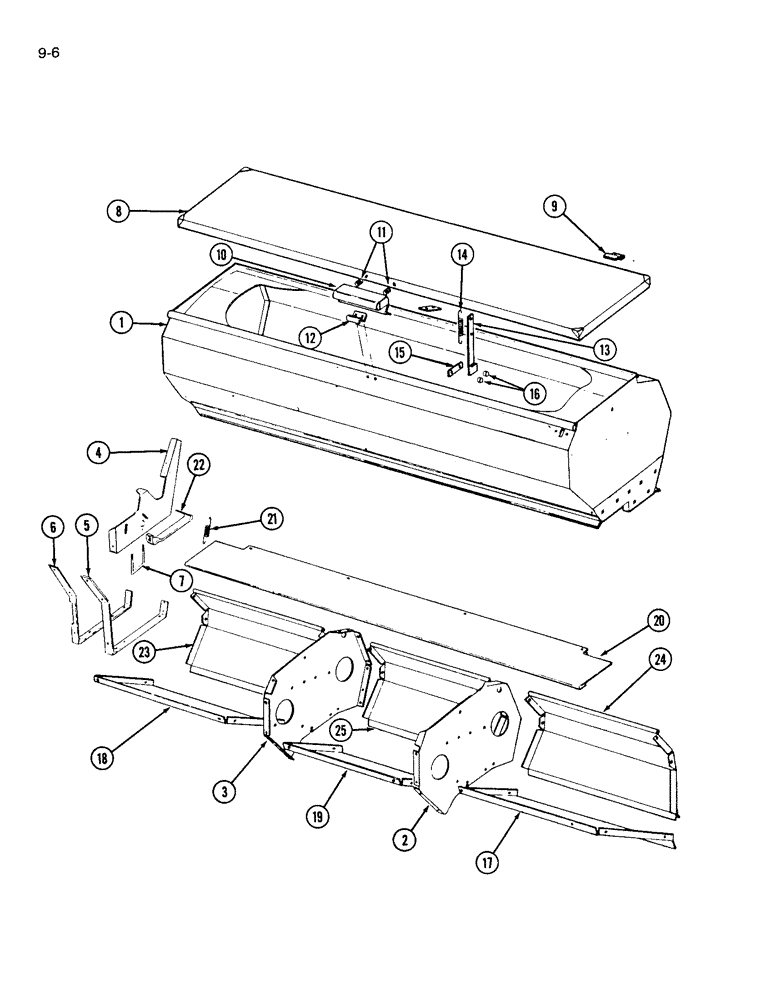

Схема запчастей Case IH 310 - (9-006) - GRAIN AND FERTILIZER HOPPER UNIT (09) - CHASSIS/ATTACHMENTS
10
17
1
12
25
7
14
2
20
24
16
19
9
22
15
11
18
13
21
8
6
4
5
3
23

Артикул

Название

Примечание

Количество

1

811571C91

HOPPER

- with decal, (12 foot)

1шт.

1

811581C91

HOPPER

- with decal, (16 foot)

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

- hex, 3/8 NC x 7/8 inch

4шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 5/16 NC x 1/2 inch, (3 used on 12 foot)

6шт.

434-68

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1/2", Gr 5

BOLT - round head square neck, 3/8 NC x 1/2 inch (12 used on 12 foot)

26шт.

2

816954C2

BAFFLE

- hopper, left (12 foot)

1шт.

3

816955C2

BAFFLE

- hopper, right (1 used on 12 foot)

2шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(17 used on 12 foot) Hex, 3/8"-16 x 3/4", G5, Full Thd

20шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 inch NC x 1/2 inch (12 foot)

2шт.

425-106

NUT,3/8"-16, Cl 5

(17 used on 12 foot) 3/8"-16, G5

20шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, (12 foot)

2шт.

492-11038

LOCK WASHER,3/8"

(17 used on 12 foot) 3/8"

20шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (12 foot) 1/4"

2шт.

4

814975C2

SUPPORT

ASSEMBLY - hopper, (4 used on 12 foot)

6шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, (16 used on 12 foot)

24шт.

425-106

NUT,3/8"-16, Cl 5

(16 used on 12 foot) 3/8"-16, G5

24шт.

492-11038

LOCK WASHER,3/8"

(16 used on 12 foot) 3/8"

24шт.

5

811442C1

BRACE

- hopper support (2 used on 12 foot)

4шт.

6

811516C1

BRACE

- hopper support

2шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, (8 used on 12 foot)

12шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/2 inch, (12 used on 12 foot)

18шт.

425-106

NUT,3/8"-16, Cl 5

(8 used on 12 foot) 3/8"-16, G5

12шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (12 used on 12 foot) 1/2"-13, G5

18шт.

492-11038

LOCK WASHER,3/8"

(8 used on 12 foot) 3/8"

12шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (12 used on 12 foot) 1/2"

18шт.

7

596905R1

BOLT,U, 5/8" - 11 x 9.63"

U BOLT - hopper support, (4 used on 12 foot)

6шт.

425-1010

NUT,5/8"-11, G5

(8 used on 12 foot) 5/8"-11, G5

12шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (8 used on 12 foot) 5/8"

12шт.

8

811455C1

COVER

ASSEMBLY - 12 foot hopper

1шт.

8

811488C1

COVER

ASSEMBLY - 16 foot hopper

2шт.

9

815173C1

HINGE

- cover, (7 used on 12 foot)

10шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

- machine, pan head slotted, 1/4 NC x 5/8 inch (14 used on 12 foot)

20шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, (14 used on 12 foot)

20шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (14 used on 12 foot) 1/4"

20шт.

10

815174C1

LATCH

- hopper cover, (1 used on 12 foot)

2шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch, (2 used on 12 foot)

4шт.

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, , (2 used on 12 foot) 5/16"-18, GC

4шт.

11

N32176

SPRING

- latch, (2 used on 12 foot)

4шт.

12

815175C1

CLIP

- latch, (1 used on 12 foot)

2шт.

411-48

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT - round head square neck, 1/4 NC x 1/2 inch, (2 used on 12 foot)

4шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, (2 used on 12 foot)

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (2 used on 12 foot) 1/4"

4шт.

13

815176C1

ARM

- cover hold open

2шт.

24660R1

CLEVIS PIN,5/16" x .719"

PIN - headed, 5/16 x 23/32 inch

2шт.

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

6шт.

14

398304R1

SPRING

- return

2шт.

15

815178C1

SPACER

SUPPORT - arm retaining

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

- hex, 3/8 NC x 7/8 inch

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

16

594536C1

BUSHING - retainer bar

4шт.

17

811556C1

PANEL

- grain partition, outer, left, (12 foot)

1шт.

17

811560C1

PANEL

- grain partition, outer, left, (16 foot)

2шт.

18

811557C1

PANEL

- grain partition, outer, right, (12 foot)

1шт.

18

811561C1

PANEL

- grain partition, outer, right, (16 foot)

2шт.

19

811553C1

PANEL

- grain partition, center, (12 foot)

1шт.

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(15 used on 12 foot) Hex, 3/8"-16 x 3/4", G5, Full Thd

26шт.

9627879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

(2 used on 12 foot) Hex, 1/2"-13 x 3/4", G5, Full Thd

4шт.

425-106

NUT,3/8"-16, Cl 5

(15 used on 12 foot) 3/8"-16, G5

26шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (2 used on 12 foot) 1/2"-13, G5

4шт.

492-11038

LOCK WASHER,3/8"

(15 used on 12 foot) 3/8"

26шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (2 used on 12 foot) 1/2"

4шт.

20

811402C1

COVER

ASSEMBLY - 12 foot fertilizer hopper

1шт.

20

811525C1

COVER

ASSEMBLY - 16 foot fertilizer hopper

2шт.

21

815891C1

SPRING

- fertilizer cover, (4 used on 12 foot)

6шт.

22

603538R1

BRACKET

BRACE - hopper center, (12 foot)

1шт.

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - round head square neck, 1/4 NC x 3/4 inch

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

23

811408C1

PANEL

- fertilizer partition, outer, right, (12 foot) (minimum fertilizer position)(illustrated)

1шт.

23

811499C1

PANEL

- fertilizer partition, outer, right, (16 foot) (minimum fertilizer position)(illustrated)

2шт.

23

811407C1

PANEL

- fertilizer partition, outer, right, (12 foot) (maximum fertilizer position)

1шт.

23

811535C1

PANEL

- fertilizer partition, outer, right, (16 foot) (maximum fertilizer position)

2шт.

24

811408C1

PANEL

- fertilizer partition, outer, left, (12 foot) (minimum fertilizer position)(illustrated)

1шт.

24

811499C1

PANEL

- fertilizer partition, outer, left, (16 foot) (minimum fertilizer position)(illustrated)

2шт.

24

811407C1

PANEL

- fertilizer partition, outer, left, (12 foot) (maximum fertilizer position)

1шт.

24

811535C1

PANEL

- fertilizer partition, outer, left, (16 foot) (maximum fertilizer position)

2шт.

25

811412C1

PANEL

- fertilizer partition, centre, (12 foot)

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(10 used on 12 foot) Hex, 3/8"-16 x 3/4", G5, Full Thd

16шт.

425-106

NUT,3/8"-16, Cl 5

(10 used on 12 foot) 3/8"-16, G5

16шт.

492-11038

LOCK WASHER,3/8"

(10 used on 12 foot) 3/8"

16шт.
