Запчасти Case IH 310 (9-004) - FRONT FURROW WHEEL, ADJUSTING (09) - CHASSIS/ATTACHMENTS

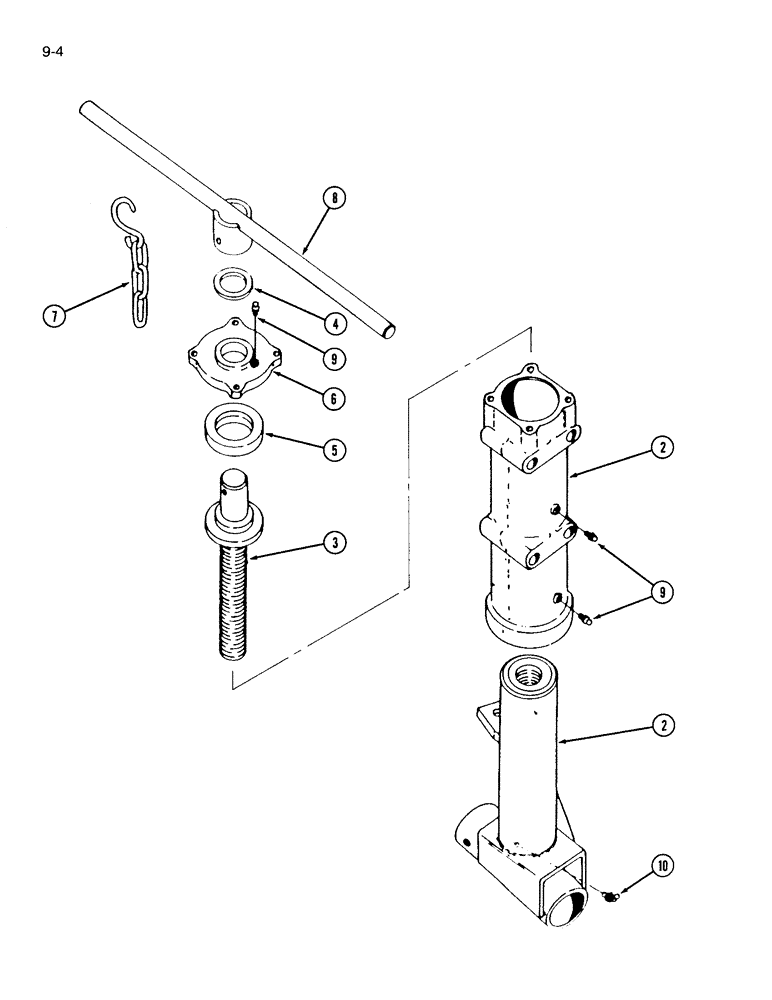

Схема запчастей Case IH 310 - (9-004) - FRONT FURROW WHEEL, ADJUSTING (09) - CHASSIS/ATTACHMENTS
10
9
3
9
8
2
6
5
7
4
2

Артикул

Название

Примечание

Количество

1

596820R3

POST

- front furrow wheel, adjusting

1шт.

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

2

811432C2

PIVOT

ASSEMBLY - front furrow wheel

1шт.

24478R1

HEADED PIN,5/8" x 3 1/4"

PIN - headed, 5/8 x 3-1/4 inch

1шт.

599744R1

AXLE PIN

PIN - hair, internal type

1шт.

3

596827R1

ADJUSTMENT SCREW

ASSEMBLY - wheel adjusting

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

4

608085R1

WASHER

- flat, 1-13/32 x 2 x 3/64 inch

1шт.

5

596829R1

BEARING

- thrust

1шт.

6

596830R1

CAP

- adjusting post

1шт.

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

3шт.

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

1шт.

495-81010

WASHER,.469" x 1 1/4" x .060"

- flat, 15/32 x 1-1/4 x 1/16 inch

1шт.

7

604704R91

HOOK

CHAIN ASSEMBLY - locking hook

1шт.

8

604690R11

CRANK

ASSEMBLY - adjusting

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

9

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

3шт.

10

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING - 90 degree short lube, 1/8 inch PTF

1шт.

Выбрано товаров: 19
