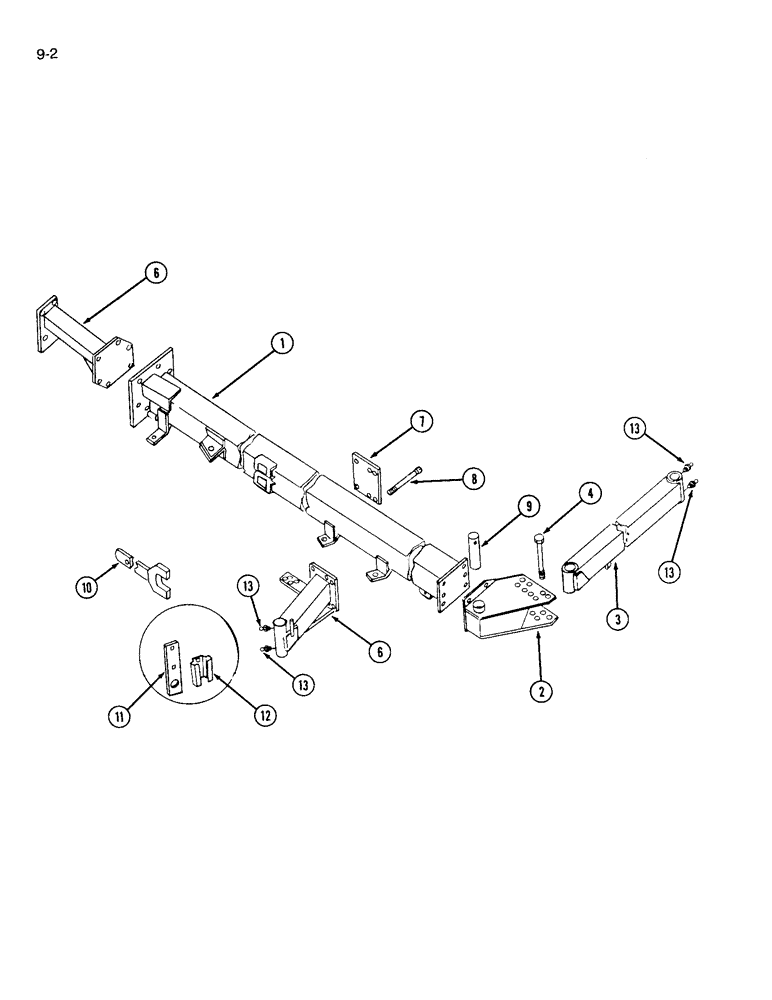

Запчасти Case IH 310 (9-002) - MAIN FRAME AND BRACKETS (09) - CHASSIS/ATTACHMENTS

1

811569C91

FRAME

ASSEMBLY - 12 foot main, Serial Range: (prior-1981)

1шт.

1

811574C91

FRAME

ASSEMBLY - 16 foot main, Serial Range: (prior-1981)

1шт.

1

811876C91

FRAME

- with decal, 12 foot main, (1981 and after)

1шт.

1

811877C91

FRAME

- with decal, 16 foot main, (1981 and after)

1шт.

2

596806R2

BRACKET

ASSEMBLY - rear wheel beam

1шт.

326-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

6шт.

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

6шт.

3

596810R2

BEAM

ASSEMBLY - rear furrow wheel

1шт.

599744R1

AXLE PIN

PIN - hair, internal type

1шт.

4

21466R1

BOLT,Hex, 1"-8 x 8 1/2", G5

- hex, 1 NC x 8-1/2 inch

2шт.

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

2шт.

5

596816R2

BRACKET

ASSEMBLY - front furrow wheel

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

6шт.

425-1012

NUT,3/4"-10, G5

6шт.

6

596835R3

BRACKET

ASSEMBLY - land wheel

1шт.

7

596836R2

PLATE

- bracket mounting

1шт.

8

413-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

- hex, 3/4 NC x 8-1/2 inch

6шт.

425-1012

NUT,3/4"-10, G5

6шт.

9

597096R1

BAR

- rear wheel pivot, single machine

1шт.

Q846

PIN,7/16" x 3 3/8"

- 7/16 x 3-3/8 inch

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

10

5996803R1

TOOL ASSEMBLY - gang

1шт.

11

598488R1

BAR

- SMV mounting

1шт.

12

398976R1

BRACKET

- SMV mounting

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.
