Запчасти Case IH 310 (8-18) - HYDRAULIC CYLINDER, 3.5 X 8 INCH, DOUBLE ACTING (08) - HYDRAULICS

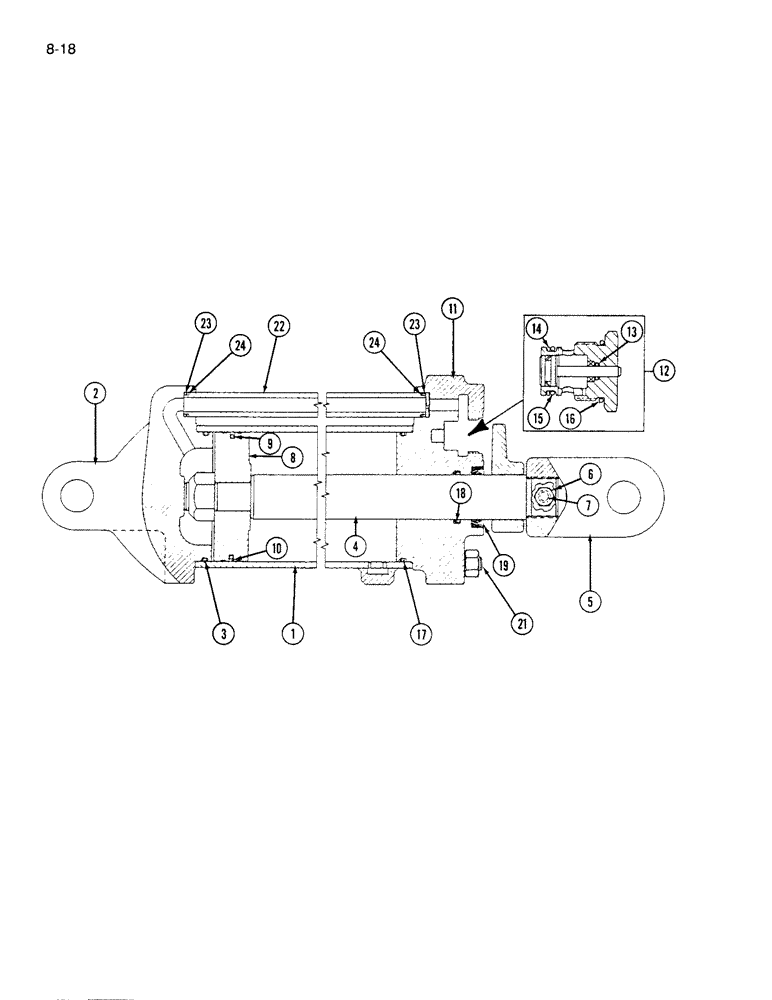

Схема запчастей Case IH 310 - (8-18) - HYDRAULIC CYLINDER, 3.5 X 8 INCH, DOUBLE ACTING (08) - HYDRAULICS
23
24
23
10
17
7
22
21
11
9
18
2
19
5
15
12
3
24
13
16
4
8
1
6
14

Артикул

Название

Примечание

Количество

1263474C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - hydraulic, 3.5 x 8 inch, 3000 PSI

1шт.

1

NSS

NOT SOLD SEPARAT

SLEEVE - hydraulic cylinder

1шт.

2

145354C1

HEAD

- cylinder rear

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - rear head, 3-1/4 x 3-1/2 inch, class 6

1шт.

order kit 79978C1

1шт.

Part of Seal and O-Ring Kit P/N 79978C1

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING - back-up

1шт.

order kit 79978C1

1шт.

Part of Seal and O-Ring Kit P/N 79978C1

1шт.

4

1272813C1

ROD

- piston

1шт.

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex lock, 7/8 inch NF, Grade 8

1шт.

5

1282366C1

RAM FORK

END - piston rod

1шт.

6

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

- hex, 3/8 NC x 7/8 inch

1шт.

7

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - piston rod end

1шт.

8

145422C1

PISTON

- hydraulic cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - piston , 3 x 3-3/16 inch, class 5

1шт.

order kit 79978C1

1шт.

Part of Seal and O-Ring Kit P/N 79978C1

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston O-ring

1шт.

order kit 79978C1

1шт.

Part of Seal and O-Ring Kit P/N 79978C1

1шт.

11

1255096C1

END

HEAD ASSEMBLY - hydraulic cylinder front

1шт.

12

1260968C91

VALVE

ASSEMBLY - limit stop

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 3/16 x 5/16 inch, class 6

1шт.

order kit 1272597C91

1шт.

Part of Valve and Transfer Tube Kit P/N 1272597C91

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER - stop limit back-up

1шт.

order kit 1272597C91

1шт.

Part of Valve and Transfer Tube Kit P/N 1272597C91

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - 11/16 x 7/8 inch, class 6

1шт.

order kit 1272597C91

1шт.

Part of Valve and Transfer Tube Kit P/N 1272597C91

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - 3/4 inch OD tube, class 6

1шт.

order kit 1272597C91

1шт.

Part of Valve and Transfer Tube Kit P/N 1272597C91

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - front head, 3-1/4 x 3-1/2 inch, class 6

1шт.

order kit 79978C1

1шт.

Part of Seal and O-Ring Kit P/N 79978C1

1шт.

17

NSS

NOT SOLD SEPARAT

RING - back-up

1шт.

order kit 79978C1

1шт.

Part of Seal and O-Ring Kit P/N 79978C1

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - urethane, cylinder piston rod

1шт.

order kit 79978C1

1шт.

Part of Seal and O-Ring Kit P/N 79978C1

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - piston rod wiper

1шт.

order kit 79978C1

1шт.

Part of Seal and O-Ring Kit P/N 79978C1

1шт.

20

224579C2

VALVE

- hydraulic cylinder trip

1шт.

1263435C91

ADJUSTMENT SCREW

1шт.

1266705C1

SQUARE NUT

- square, 5/16-18 inch

1шт.

21

145250C1

BOLT,5/8" - 11 x 345mm

ROD - cylinder tie

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

22

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

- cylinder return

1шт.

49211038

WASHER - plain, lock 3/8 inch

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - 9/16 x 3/4 inch, class 6

2шт.

order kit 1272597C91

1шт.

Part of Seal and O-Ring Kit P/N 79978C1

1шт.

24

NSS

NOT SOLD SEPARAT

WASHER - O-ring, backup

2шт.

order kit 79978C1

1шт.

Part of Seal and O-Ring Kit P/N 79978C1

1шт.

79978C1

SEAL KIT

KIT - seal and O-ring service, Includes: Ref. 3, 9, 10, 17, 18, 19, 23 and 24

1шт.

1272597C91

KIT

- valve and transfer tube service, Includes: Ref. 13, 14, 15 and 16

1шт.

Выбрано товаров: 62
