Запчасти Case IH 310 (8-14) - HYDRAULIC CYLINDER, 3.5 X 8 INCH, DOUBLE ACTING (08) - HYDRAULICS

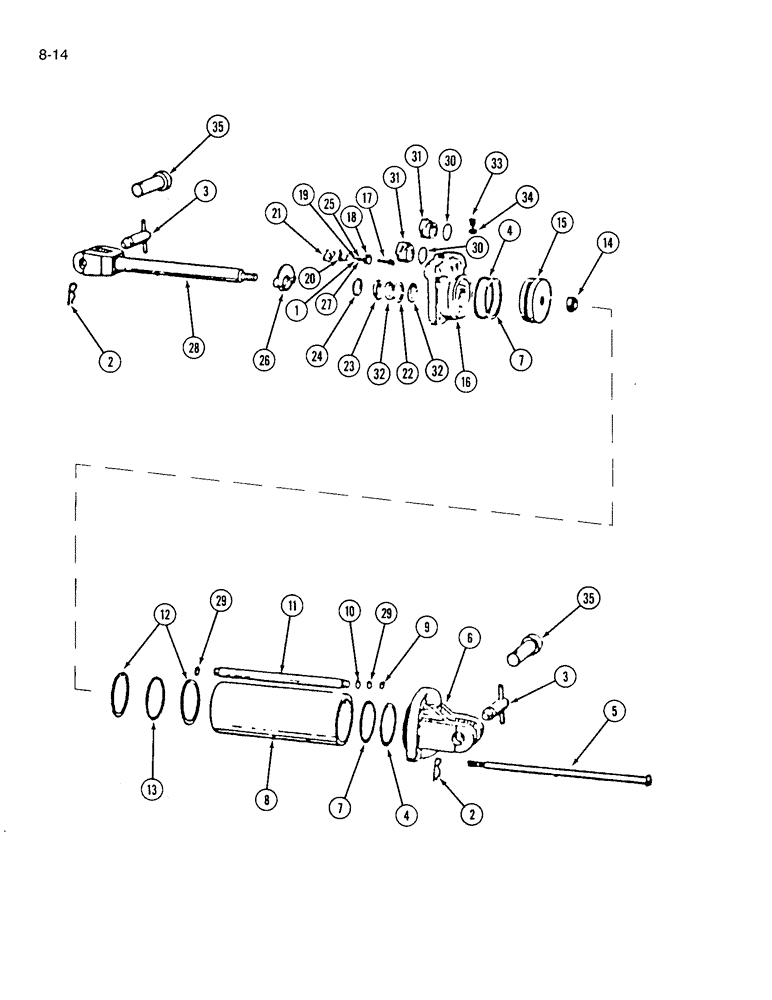

Схема запчастей Case IH 310 - (8-14) - HYDRAULIC CYLINDER, 3.5 X 8 INCH, DOUBLE ACTING (08) - HYDRAULICS
11
3
30
18
15
10
7
2
1
35
27
9
3
6
31
7
8
2
28
14
22
21
29
23
26
29
5
16
34
33
35
19
4
31
30
17
32
24
13
32
12
25
20
4

Артикул

Название

Примечание

Количество

403842R94

CYLINDER

ASSEMBLY - double acting, 3-1/2 x 8 inch (Order 1263474C91)(See Page 8-19)

1шт.

1

NSS

NOT SOLD SEPARAT

WASHER - O-ring back-up

1шт.

Part of Hydraulic Cylinder Seal Ring Kit P/N 527324R92

1шт.

2

520175R1

CLIP

PIN - cotter, hair, 3/16 inch diameter

2шт.

3

NSS

NOT SOLD SEPARAT

NOT USED IN THIS APPLICATION

1шт.

Part of Hydraulic Cylinder Seal Ring Kit P/N 527324R92

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER - head back-up

2шт.

Part of Hydraulic Cylinder Seal Ring Kit P/N 527324R92

1шт.

5

404022R1

ROD,5/8" - 11 x 14"

- ite

4шт.

425-1010

NUT,5/8"-11, G5

1шт.

6

547662R1

HEAD

- rear

1шт.

7

NSS

NOT SOLD SEPARAT

O-RNG - front and rear head, 3.234 x 3.512 x 0.210 inch

2шт.

Part of Hydraulic Cylinder Seal Ring Kit P/N 527324R92

1шт.

8

404021R1

SLEEVE - cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - O-ring back-up

2шт.

Part of Hydraulic Cylinder Seal Ring Kit P/N 527324R92

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston rod, 0.984 x 1.262 x 0.139 inch

1шт.

Part of Hydraulic Cylinder Seal Ring Kit P/N 527324R92

1шт.

11

404023R1

TUBE

- cylinder return

1шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - O-ring back-up

2шт.

Part of Hydraulic Cylinder Seal Ring Kit P/N 527324R92

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - piston, 3.100 x 3.520 x 0.021 inch

1шт.

Part of Hydraulic Cylinder Seal Ring Kit P/N 527324R92

1шт.

14

25126R1

LOCK NUT,1 1/8"-12, GC

NUT - hex, 1-1/8 inch NF

1шт.

15

404019R1

PISTON

1шт.

16

NSS

NOT SOLD SEPARAT

HEAD - cylinder front, (Order Cylinder 1263474C91)

1шт.

Part of Hydraulic Cylinder Seal Ring Kit P/N 527324R92

1шт.

17

404029R1

LOCK VALVE

VALVE ASSEMBLY - limit stop

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - limit stop valve housing, 0.612 x 0.818 x 0.103 inch

1шт.

order kit 527324R92

1шт.

Part of Hydraulic Cylinder Seal Ring Kit P/N 527324R92

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - limit stop valve housing, 0.176 x 0.316 x 0.070 inch

1шт.

Part of Hydraulic Cylinder Seal Ring Kit P/N 527324R92

1шт.

20

404024R91

HOUSING

ASSEMBLY - limit stop valve

1шт.

404026R1

BACK-UP RING

1шт.

21590R1

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

- 3/16 x 5/16 inch, class 6

1шт.

404027R1

RETAINER

- stop valve seal

1шт.

21

361009R1

PLATE

- limit stop valve retainer

1шт.

413-49

BOLT,Hex, 1/4" - 20 x 9/16", Gr 5

- hex, 1/4 NC x 9/16 inch

1шт.

22

119203C1

SEAL

SEAL - piston rod (Used with R94 cylinder, replaces 400744R1 and 4036225R1)

1шт.

22

400744R1

RING

- quad, (used with R93 cylinder and R2 front head)

1шт.

23

NSS

NOT SOLD SEPARAT

WIPER - piston rod, (see note)

1шт.

Part of Hydraulic Cylinder Seal Ring Kit P/N 527324R92

1шт.

24

383771R1

SEALING WASHER

RETAINER - piston rod wiper (Used with R93 cylinder and R1 front head)

1шт.

25

NSS

NOT SOLD SEPARAT

WASHER - limit stop valve housing O-ring

1шт.

Part of Hydraulic Cylinder Seal Ring Kit P/N 527324R92

1шт.

26

404034R1

CLAMP

ASSEMBLY - stroke limit

1шт.

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

- hex, 3/8 NF x 3/4 inch

1шт.

27

404027R1

RETAINER

- stop valve seal

1шт.

28

547661R1

ROD

ASSEMBLY - piston

1шт.

29

O-RING - rturn tube, 0.549 x 0.755 x 0.103 inch, (see note)

2шт.

30

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 5/16 x 3/32 inch

2шт.

31

9410360

PLUG

- hex, 7/8-14 inch O-ring boss

2шт.

32

403622R1

BACK-UP RING

WASHER - quad ring backup (Used with R93 cylinder and R1 front head)

2шт.

33

404033R1

PLUG

- front head

2шт.

34

O-RING - 15/32 x 5/8 x 5/64 inch

2шт.

35

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - clevis, 1 x 3-1/4 inch

2шт.

527324R92

KIT

- hydraulic cylinder seal ring, Includes Ref. 1, 3, 4, 7, 9, 10, 12, 13, 16, 18, 19, 23 and 25

1шт.
