Запчасти Case IH 310 (8-12) - HYDRAULIC CYLINDER, 3.5 X 8 INCH, DOUBLE ACTING (08) - HYDRAULICS

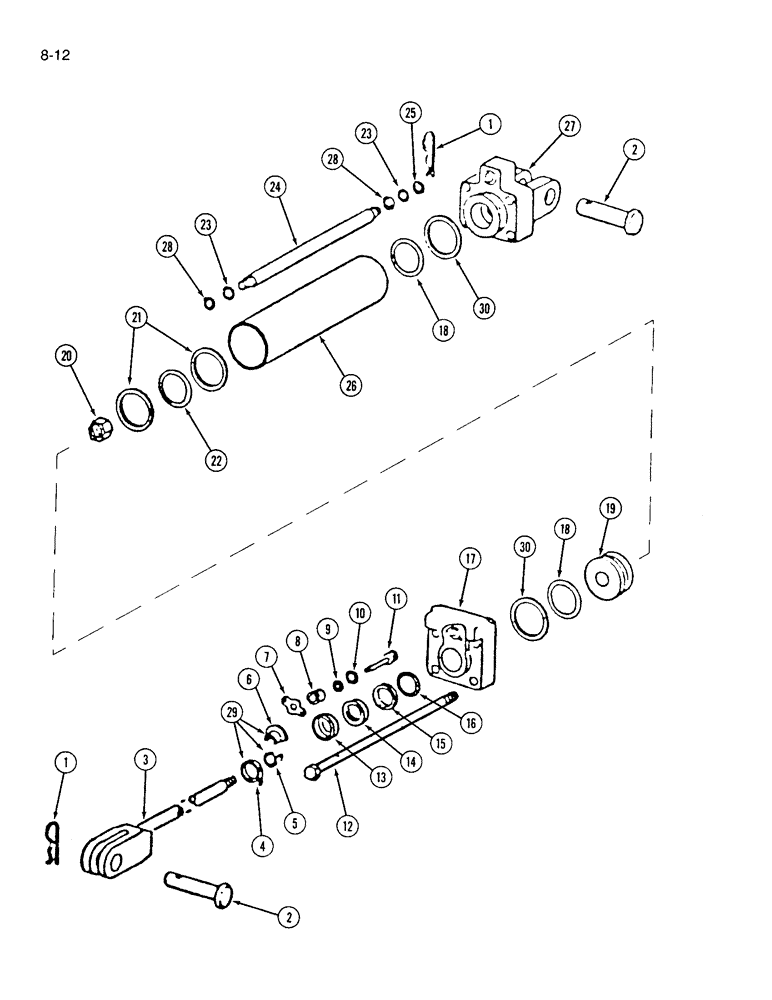

Схема запчастей Case IH 310 - (8-12) - HYDRAULIC CYLINDER, 3.5 X 8 INCH, DOUBLE ACTING (08) - HYDRAULICS
2
5
6
17
1
23
26
28
2
10
29
23
3
18
7
14
30
4
8
1
20
24
18
12
28
19
9
11
27
22
15
13
16
21
30
25

Артикул

Название

Примечание

Количество

371292R95

CYLINDER

ASSEMBLY - hydraulic, 3.5 x 8 inch, double acting (Order cylinder assembly 145352C91)(See Page 8-11)

1шт.

1

520175R1

CLIP

PIN - cotter, hair, 3/16 inch diameter

2шт.

2

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - clevis, 1 x 3-1/4 inch

2шт.

3

60784C91

ROD

ASSEMBLY - piston

1шт.

4

361085R91

CLAMP

ASSEMBLY - stroke limit collar

1шт.

5

360372R1

COLLAR

- stroke limit, plain half

1шт.

6

361010R1

COLLAR

- stroke limit, flanged half

1шт.

7

361009R1

PLATE

- limit stop valve retainer

1шт.

413-49

BOLT,Hex, 1/4" - 20 x 9/16", Gr 5

- hex, 1/4 NC x 9/16 inch

1шт.

8

361007R11

RETAINER

ASSEMBLY - limit stop valve (Includes one 404027R1)

1шт.

404024R1

RETAINER - stop valve seal

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 3/16 x 5/16 x 1/16 inch

1шт.

order kit 363138R94

1шт.

Part of Hydraulic Cylinder O-Ring Kit P/N 36318R94

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 5/8 x 13/16 x 3/32 inch

1шт.

order kit 363138R94

1шт.

Part of Hydraulic Cylinder O-Ring Kit P/N 36318R94

1шт.

11

361006R11

VALVE

ASSEMBLY - limit stop

1шт.

12

361004R1

BOLT,Hex, 1/2" - 20 x 13 7/16"

- cylinder tie

4шт.

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

4шт.

13

NSS

NOT SOLD SEPARAT

RETAINER - piston rod dust seal

1шт.

order kit 363138R94

1шт.

Part of Hydraulic Cylinder O-Ring Kit P/N 36318R94

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - piston rod dust

1шт.

order kit 363138R94

1шт.

Part of Hydraulic Cylinder O-Ring Kit P/N 36318R94

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - rod seal back-up

1шт.

order kit 363138R94

1шт.

Part of Hydraulic Cylinder O-Ring Kit P/N 36318R94

1шт.

16

NSS

NOT SOLD SEPARAT

SPRING - piston rod gland, (see note)

1шт.

order kit 363138R94

1шт.

Part of Hydraulic Cylinder O-Ring Kit P/N 36318R94

1шт.

17

60789C91

HEAD ASSEMBLY - cylinder front

1шт.

444687

PLUG,Hex Soc, 1/8"-27

2шт.

18

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 x 3-1/2 x 1/8 inch

1шт.

order kit 363138R94

1шт.

Part of Hydraulic Cylinder O-Ring Kit P/N 36318R94

1шт.

19

361003R1

HEAD

- piston

1шт.

20

9412368

NUT

- hex lock, 3/4 inch NF, Grade 8

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER - piston head back-up

2шт.

order kit 363138R94

1шт.

Part of Hydraulic Cylinder O-Ring Kit P/N 36318R94

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - 3-1/8 x 3-1/2 x 3/16 inch

1шт.

order kit 363138R94

1шт.

Part of Hydraulic Cylinder O-Ring Kit P/N 36318R94

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - 9/16 x 3/4 x 3/32 inch

2шт.

order kit 363138R94

1шт.

Part of Hydraulic Cylinder O-Ring Kit P/N 36318R94

1шт.

24

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

- cylinder return

1шт.

25

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

26

354051R1

BARREL,3.5035" ID, .429" OD, 10.26" Length

TUBE - hydraulic cylinder

1шт.

27

60782C1

HEAD

- cylinder rear

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER - O-ring back-up

2шт.

order kit 363138R94

1шт.

Part of Hydraulic Cylinder O-Ring Kit P/N 36318R94

1шт.

29

375426R91

COLLAR

ASSEMBLY - stroke limit, (Includes one 393503R1)

1шт.

393503R1

THUMB SCREW,5/16" - 24 x 5/8"

- thumb

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER - back-up

2шт.

order kit 363138R94

1шт.

Part of Hydraulic Cylinder O-Ring Kit P/N 36318R94

1шт.

36318R94

KIT - hydraulic cylinder O-ring service, Includes: Ref. 9, 10, 13 thru 16, 18, 21, 22, 23, 28 and 30

1шт.
