Запчасти Case IH 310 (8-10) - HYDRAULIC CYLINDER, 3.5 X 8 INCH, DOUBLE ACTING (08) - HYDRAULICS

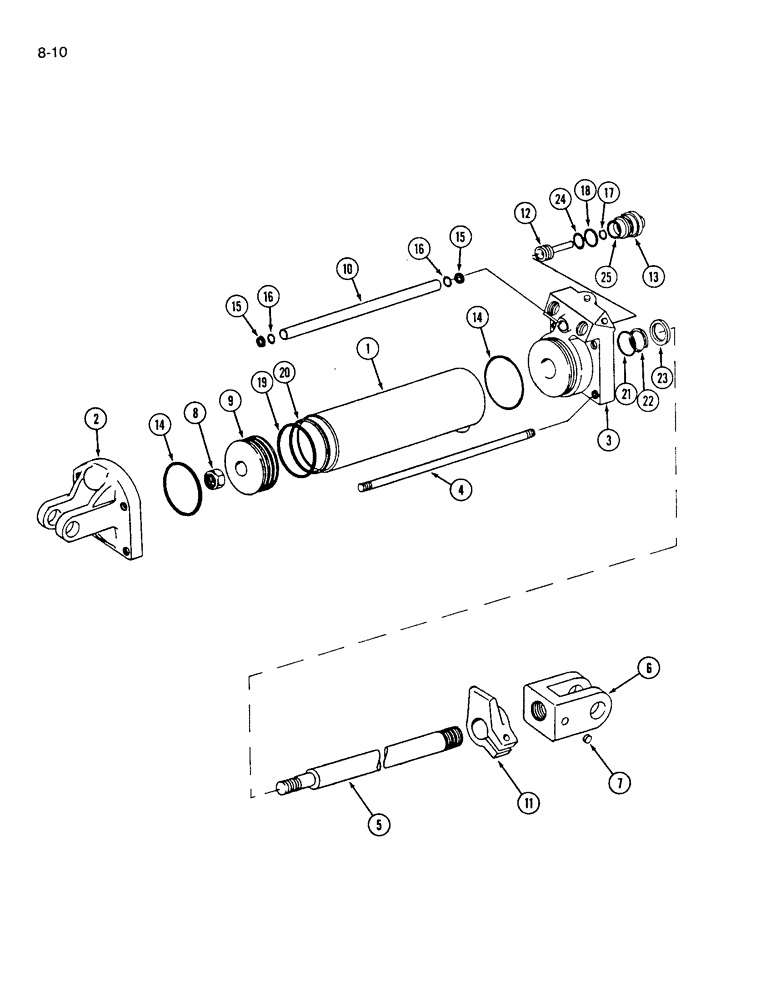

Схема запчастей Case IH 310 - (8-10) - HYDRAULIC CYLINDER, 3.5 X 8 INCH, DOUBLE ACTING (08) - HYDRAULICS
9
25
15
12
1
3
4
2
18
11
24
8
16
5
23
14
22
14
10
6
15
20
7
17
19
21
16
13

Артикул

Название

Примечание

Количество

145352C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - hydraulic, 3.5 x 8 inch, 2500 PSI

1шт.

1

SLEEVE - cylinder

1шт.

2

145354C1

HEAD

- cylinder rear

1шт.

3

1260880C1

END

- cylinder front

1шт.

4

145250C1

BOLT,5/8" - 11 x 345mm

ROD - cylinder tie

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

5

145500C1

PISTON ROD

ROD - cylinder position

1шт.

6

145233C1

CLEVIS,1/4" - 12

END - cylinder piston rod

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

- hex, 3/8 NC x 7/8 inch

1шт.

7

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - piston rod end

1шт.

8

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex lock, 7/8 inch NF, grade 8

1шт.

9

145422C1

PISTON

- hydraulic cylinder

1шт.

10

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

- cylinder return

1шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

11

224579C2

VALVE

- cylinder trip

1шт.

1263435C91

ADJUSTMENT SCREW

ASSEMBLY - L

1шт.

12

1260968C91

VALVE

ASSEMBLY - limit stop

1шт.

13

145359C1

RETAINER

FITTING ASSEMBLY - limit stop valve

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 x 3-1/2 inch, class 6, (see note)

2шт.

Part of Seal Repair Kit P/N 79980C1

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - 9/16 x 3/4 inch, class 6, (see note)

2шт.

Part of Seal Repair Kit P/N 79980C1

1шт.

16

NSS

NOT SOLD SEPARAT

WASHER, return tube back-up, (see note)

2шт.

Part of Seal Repair Kit P/N 79980C1

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - 3/16 x 5/16 inch, class 6, (see note)

1шт.

Part of Seal Repair Kit P/N 79980C1

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - 11/16 x 7/8 inch, class 6, (see note)

1шт.

Part of Seal Repair Kit P/N 79980C1

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - 3 x 3-3/16 inch, class 5, (see note)

1шт.

Part of Seal Repair Kit P/N 79980C1

1шт.

20

NSS

NOT SOLD SEPARAT

SPRING - piston seal, (see note)

1шт.

Part of Seal Repair Kit P/N 79980C1

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - cylinder piston, (see note)

1шт.

Part of Seal Repair Kit P/N 79980C1

1шт.

22

NSS

NOT SOLD SEPARAT

NOT USE IN THIS APPLICATION

1шт.

Part of Seal Repair Kit P/N 79980C1

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL - piston rod wiper, (see note)

1шт.

Part of Seal Repair Kit P/N 79980C1

1шт.

24

NSS

NOT SOLD SEPARAT

SPRING - limit stop back-up, (see note)

1шт.

Part of Seal Repair Kit P/N 79980C1

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - 3/4 inch OD tube, class 6, (see note)

1шт.

Part of Seal Repair Kit P/N 79980C1

1шт.

79980C1

SEAL KIT

- seal repair, Includes: Ref. 14 thru 25

1шт.

1272597C91

KIT

- valve and transfer tube

1шт.

Выбрано товаров: 44
