Запчасти Case IH 310 (8-08) - HYDRAULIC CYLINDER, 3.5 X 8 INCH, DOUBLE ACTING (08) - HYDRAULICS

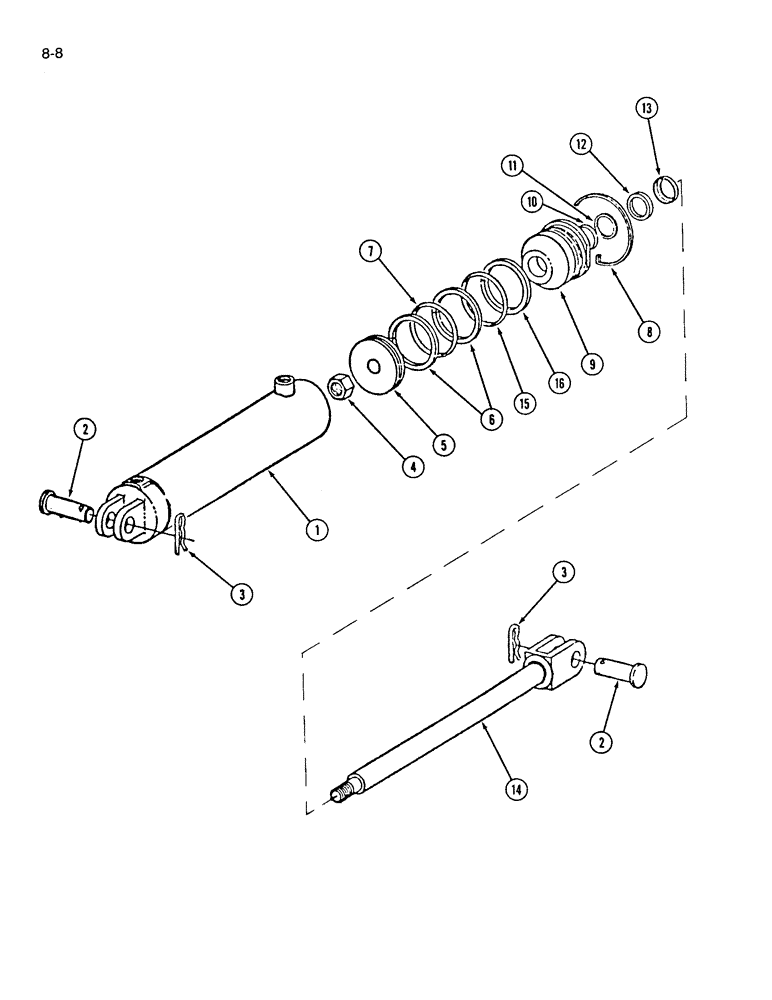

Схема запчастей Case IH 310 - (8-08) - HYDRAULIC CYLINDER, 3.5 X 8 INCH, DOUBLE ACTING (08) - HYDRAULICS
6
7
13
2
10
1
5
4
11
3
16
14
15
8
3
9
2
12

Артикул

Название

Примечание

Количество

61105C91

CYLINDER

ASSEMBLY - 3.5 x 8 inch, double acting without hydraulic stroke control (For tractors with hydraulic system rated up to 2500 PSI)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - hydraulic cylinder (Order 61105C91)

1шт.

2

810751C1

PIN

- headed, 1 x 3 inch

2шт.

3

520175R1

CLIP

PIN - cotter, hair, 3/16 inch diameter

2шт.

4

NSS

NOT SOLD SEPARAT

NUT - hex, lock, 7/8-14 inch (Order 547725R91)

1шт.

Part of Hydraulic Cylinder Seal Kit P/N 547725R91

1шт.

5

547724R1

PISTON

- cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER - back-up (Order 547725R91)

2шт.

Part of Hydraulic Cylinder Seal Kit P/N 547725R91

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - piston seal, 3-1/8 x 3-1/2 x 3/16 inch (Order 547725R91)

1шт.

Part of Hydraulic Cylinder Seal Kit P/N 547725R91

1шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - front head (Order 547725R91)

1шт.

Part of Hydraulic Cylinder Seal Kit P/N 547725R91

1шт.

9

60806C1

HEAD

- front

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston rod seal, 1-1/4 x 1-1/2 x 1/8 inch (Order 547725R91)

1шт.

Part of Hydraulic Cylinder Seal Kit P/N 547725R91

1шт.

11

NSS

NOT SOLD SEPARAT

WASHER - quad ring back-up (Order 547725R91)

1шт.

Part of Hydraulic Cylinder Seal Kit P/N 547725R91

1шт.

12

NSS

NOT SOLD SEPARAT

WIPER - piston rod (Order 547725R91)

1шт.

Part of Hydraulic Cylinder Seal Kit P/N 547725R91

1шт.

13

NSS

NOT SOLD SEPARAT

RETAINER - piston rod (Order 547725R91)

1шт.

Part of Hydraulic Cylinder Seal Kit P/N 547725R91

1шт.

14

547719R1

ROD

ASSEMBLY - piston

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - front end head, 3-1/4 x 3-1/2 x 1/8 inch (Order 547725R91)

1шт.

Part of Hydraulic Cylinder Seal Kit P/N 547725R91

1шт.

16

NSS

NOT SOLD SEPARAT

WASHER - back-up (Order 547725R91)

1шт.

Part of Hydraulic Cylinder Seal Kit P/N 547725R91

1шт.

547725R91

SEAL KIT

KIT - hydraulic cylinder seal service, Includes: Ref. 4, 6, 7, 8, 10, 11, 12, 13, 15 and 16

1шт.
