Запчасти Case IH 310 (8-06) - HYDRAULIC CONNECTIONS, FROM TRACTOR TO CYLINDER OF THIRD MACHINE, PRIOR TO 1982 SEASON (08) - HYDRAULICS

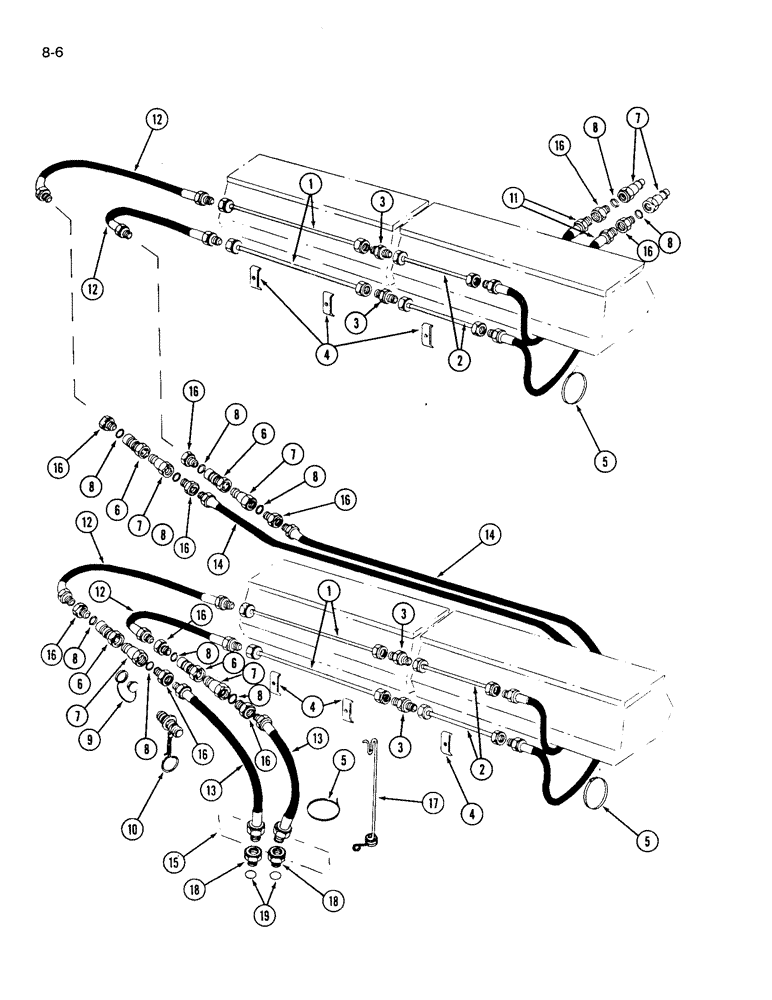

Схема запчастей Case IH 310 - (8-06) - HYDRAULIC CONNECTIONS, FROM TRACTOR TO CYLINDER OF THIRD MACHINE, PRIOR TO 1982 SEASON (08) - HYDRAULICS
12
12
18
16
6
1
16
8
16
7
8
1
16
7
12
3
5
6
13
19
4
5
4
8
7
16
18
5
8
3
12
16
7
8
10
17
11
9
16
6
16
8
2
2
6
13
7
3
4
8
8
16
14
15
16
8
8
3
14

Артикул

Название

Примечание

Количество

1

811254C11

TUBE,1" OD, 95" Length

ASSEMBLY - hydraulic, 95 inch

4шт.

2

597136R1

TUBE,1" OD, 54.7" Length

ASSEMBLY - hydraulic, extension 54.7 inch (16 foot)

4шт.

3

218-434

HYD CONNECTOR,3/4" - 16 Male JIC x 3/4" - 16 Male JIC

CONNECTOR - straight, 3/4-16 inch flare (16 foot)

4шт.

4

614323R2

CLAMP

- hydraulic tube, (9 used on 12 foot)

15шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16-18 x 1-1/4 inch, (1 per clamp) (Use on second machine, 3 used on 12 foot)

15шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

(1 per clamp) (Use on first machine, 3 used on 12 foot) Hex, 5/16"-18 x 2", G5

15шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch, (1 per bolt)

15шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (1 per bolt) 5/16"

15шт.

5

813579C1

CABLE TIE

STRAP - tie, tractor valve hose

3шт.

6

395150R91

COUPLING, QUICK, FEM

COUPLER ASSEMBLY - self sealing, female

4шт.

7

395149R1

QUICK MALE COUPLING

COUPLER - hose half, male

6шт.

7

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male, 7/8-14 thread self sealing type (For 66 series tractors)

6шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

10шт.

9

373220R1

PLUG

CAP - dust, plastic, (prior to June 1980)

4шт.

10

1954133C1

PLUG

PLUG ASSEMBLY - coupling, (June 1980 and after)

4шт.

11

814890C1

HOSE

ASSEMBLY - hydraulic, 3/8 ID x 240 inch

2шт.

12

814891C1

HOSE ASSY.

HOSE ASSEMBLY - hydraulic, 3/8 ID x 112 inch

4шт.

13

814893C1

HOSE

ASSEMBLY - hydraulic, 3/8 ID x 112 inch

2шт.

14

814892C1

HOSE ASSY.

HOSE ASSEMBLY - hydraulic, 3/8 ID x 175 inch

2шт.

15

145352C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - hydraulic, 3.5 x 8 inch, 2500 PSI (Replaces 271292R95 and 61105C91, See Pages 8-13 and 8-9)

1шт.

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - clevis, 1 x 3-1/4 inch

1шт.

520175R1

CLIP

PIN - cotter, hair, 3/16 inch diameter

1шт.

15

1263474C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - hydraulic, 3.5 x 8 inch, 3000 PSI (Replaces 403842R94)(See Page 8-15)

1шт.

16

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss 3/4"-16, 37º x 7/8"-14, O-Ring

10шт.

17

651793R2

SUPPORT

ROD - hose support

2шт.

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch, (1 per rod)

2шт.

425-1010

NUT,5/8"-11, G5

(1 per bolt) 5/8"-11, G5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (1 per bolt) 5/8"

2шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

2шт.

18

218-2059

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

Выбрано товаров: 31
