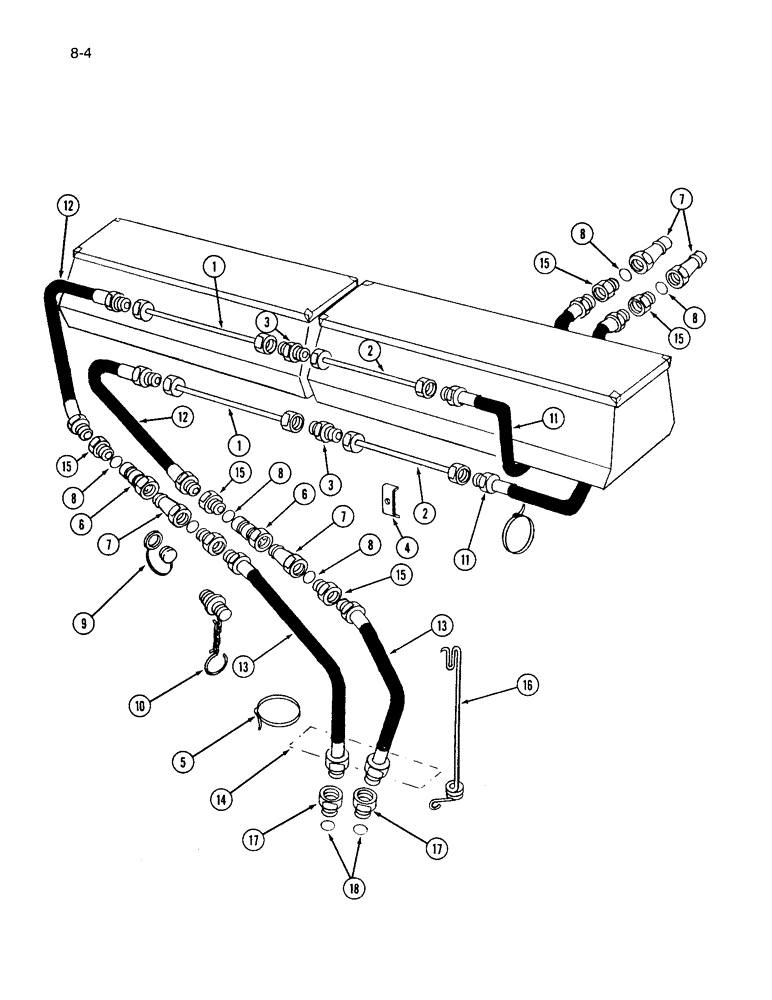

Запчасти Case IH 310 (8-04) - HYDRAULIC CONNECTIONS, FROM TRACTOR TO CYLINDER OF SECOND MACHINE (08) - HYDRAULICS

1

811254C11

TUBE,1" OD, 95" Length

ASSEMBLY - hydraulic, 95 inch

2шт.

2

597136R1

TUBE,1" OD, 54.7" Length

ASSEMBLY - hydraulic, extension 54.7 inch (16 foot)

2шт.

3

218-434

HYD CONNECTOR,3/4" - 16 Male JIC x 3/4" - 16 Male JIC

CONNECTOR - straight, 3/4-16 inch flare (16 foot)

2шт.

4

614323R2

CLAMP

- hydraulic tube, (3 used on 12 foot)

5шт.

413-250

BOLT - hex, 5/16-18 x 1-1/4 inch, (1 per clamp)

5шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch, (1 per bolt)

5шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (1 per bolt) 5/16"

5шт.

5

813579C1

CABLE TIE

STRAP - tie, tractor valve hose

2шт.

6

395150R91

COUPLING, QUICK, FEM

COUPLER ASSEMBLY - self sealing, female

2шт.

7

395149R1

QUICK MALE COUPLING

COUPLER - hose half, male

4шт.

7

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male, 7/8-14 thread self sealing type (For 66 series tractors)

4шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

6шт.

9

373220R1

PLUG

CAP - dust, plastic, (prior to June 1980)

2шт.

10

1954133C1

PLUG

PLUG ASSEMBLY - coupling, (June 1980 and after)

2шт.

11

814890C1

HOSE

ASSEMBLY - hydraulic, 3/8 ID x 240 inch

2шт.

12

814891C1

HOSE ASSY.

HOSE ASSEMBLY - hydraulic, 3/8 ID x 112 inch

2шт.

13

814893C1

HOSE

ASSEMBLY - hydraulic, 3/8 ID x 112 inch

2шт.

14

145352C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - hydraulic, 3.5 x 8 inch, 2500 PSI (Replaces 371292R95 and 61105C91)

1шт.

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - clevis, 1 x 3-1/4 inch

1шт.

520175R1

CLIP

PIN - cotter, hair, 3/16 inch diameter

1шт.

14

1263474C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - hydraulic, 3.5 x 8 inch, 3000 PSI (Replaces 403842R94)(See Page 8-19)

1шт.

15

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss 3/4"-16, 37º x 7/8"-14, O-Ring

6шт.

16

651793R2

SUPPORT

ROD - hose support

1шт.

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 inch x 7/64 inch

1шт.

17

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.
