Запчасти Case IH 310 (8-02) - HYDRAULIC CONNECTIONS, 12 AND 16 FOOT, FRONT MACHINE OF DUPLEX OR TRIPLEX, PRIOR TO 1982 (08) - HYDRAULICS

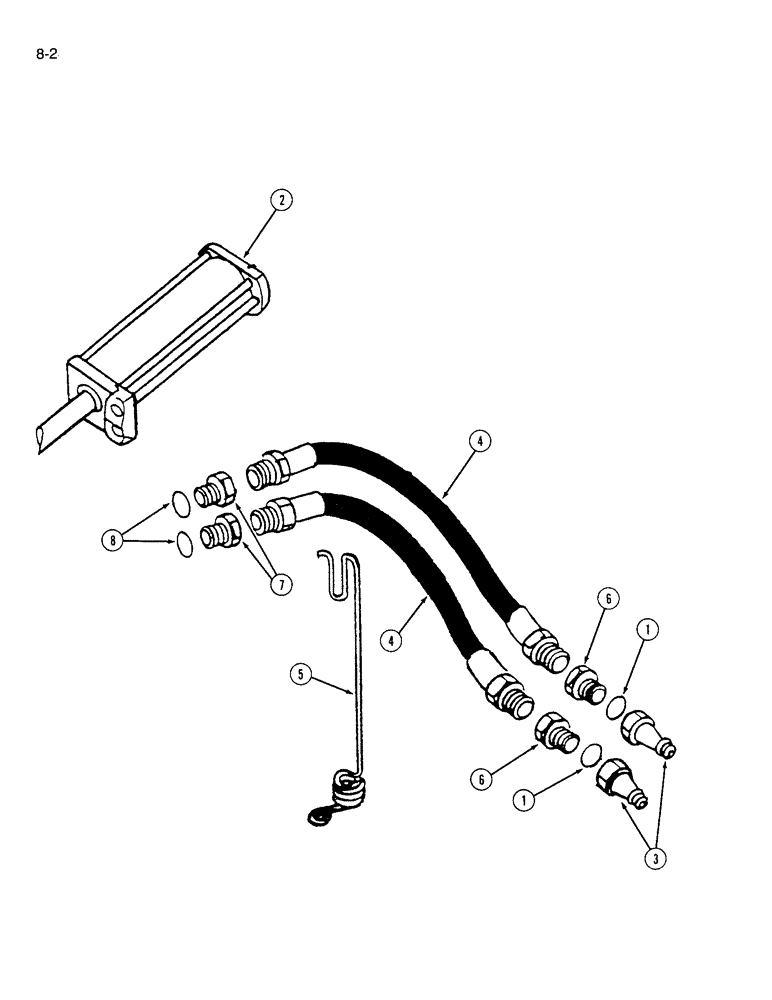

Схема запчастей Case IH 310 - (8-02) - HYDRAULIC CONNECTIONS, 12 AND 16 FOOT, FRONT MACHINE OF DUPLEX OR TRIPLEX, PRIOR TO 1982 (08) - HYDRAULICS
4
1
7
6
6
2
4
1
5
3
8

Артикул

Название

Примечание

Количество

1

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

2

145352C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - hydraulic, 3.5 x 8 inch, 2500 PSI (Replaces 371292R95 and 61105C91)

1шт.

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - clevis, 1 x 3-1/4 inch

1шт.

520175R1

CLIP

PIN - cotter, hair type, 3/16 inch diameter

1шт.

2

1263474C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - hydraulic, 3.5 x 8 inch, 3000 PSI (Replaces 403842C94)

1шт.

3

395149R1

QUICK MALE COUPLING

COUPLER - hose half, male

2шт.

3

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male, 7/8-14 thread self sealing type

2шт.

4

814889C1

HOSE

ASSEMBLY - hydraulic, 3/8 x 200 inch

2шт.

5

651793R2

SUPPORT

ROD - hose support

1шт.

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

1шт.

6

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

7

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

Выбрано товаров: 16
