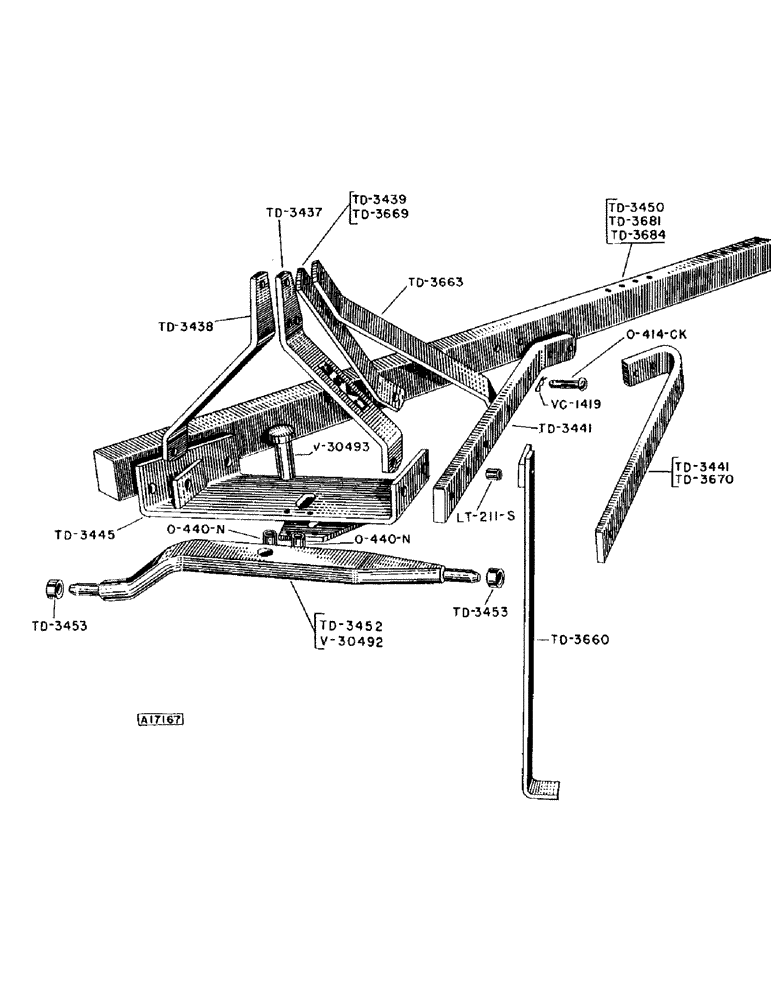

Запчасти Case IH 302 (06) - FRAME AND BEAMS, 1955 - 1957

TD3437

MAST - L.H. (Use T-16298)

1шт.

3/4" X 3" HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

1шт.

TD3438

MAST - R.H. (Use T-16297)

1шт.

3/4" X 2-1/2" HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

1шт.

3/4" X 3-1/2" HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

1шт.

TD3439

BRACE - mast beam, For 4 furrow plow R.H.

1шт.

TD3441

BAR - side, For 4 furrow plow (See TD3670)

1шт.

3/4" X 4-3/4" HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

2шт.

3/4" X 2-1/2" HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

1шт.

TD3445

PLATE - mast and pull bar anchor

1шт.

3/4" X 2" HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

1шт.

1/2" X 2-3/4" HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

2шт.

TD3450

BEAM - 4 furrow plow

1шт.

3/4" X 4-1/4" HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

2шт.

3/4" X 4-1/2" HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

1шт.

TD3452

BAR - pull (Rep. V30492 inter.)

1шт.

TD3453

COLLAR - pull bar

2шт.

1/4" X 3/4" COTTER PIN

2шт.

TD3660

STAND

1шт.

3/4" X 3-1/2" HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

1шт.

3/4" PLAIN WASHER

1шт.

TD3663

BRACE - mast frame L.H.

1шт.

TD3669

BRACE - mast beam, For 2 and 3 furrow plows R.H.

1шт.

TD3670

BAR - side, For 2 and 3 furrow plows (See TD3441)

1шт.

TD3681

BEAM - 2 furrow plow

1шт.

3/4" X 4-1/4" HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

1шт.

3/4" X 4-3/4" HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

2шт.

3/4" X 5-1/2" HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

1шт.

TD3684

BEAM - 3 furrow plow

1шт.

3/4" X 4-1/4" HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

2шт.

3/4" X 4-3/4" HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

1шт.

3/4" X 5-1/2" HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

1шт.

T16297

MAST - R.H.

1шт.

T16298

MAST - L.H.

1шт.

LT211S

BUSHING - stand pivot

1шт.

O414CK

PIN - stand pivot

1шт.

O440N

SPACER - mast anchor plate

2шт.

V30492

DECAL

BAR - pull (Use TD3452)

1шт.

V30493

DECAL

PIN - pull bar

1шт.

1-1/4" PLAIN WASHER

1шт.

1/4" X 1-3/4" COTTER PIN

1шт.

VC1419

X

COTTER - hair pin, stand pivot pin

1шт.
