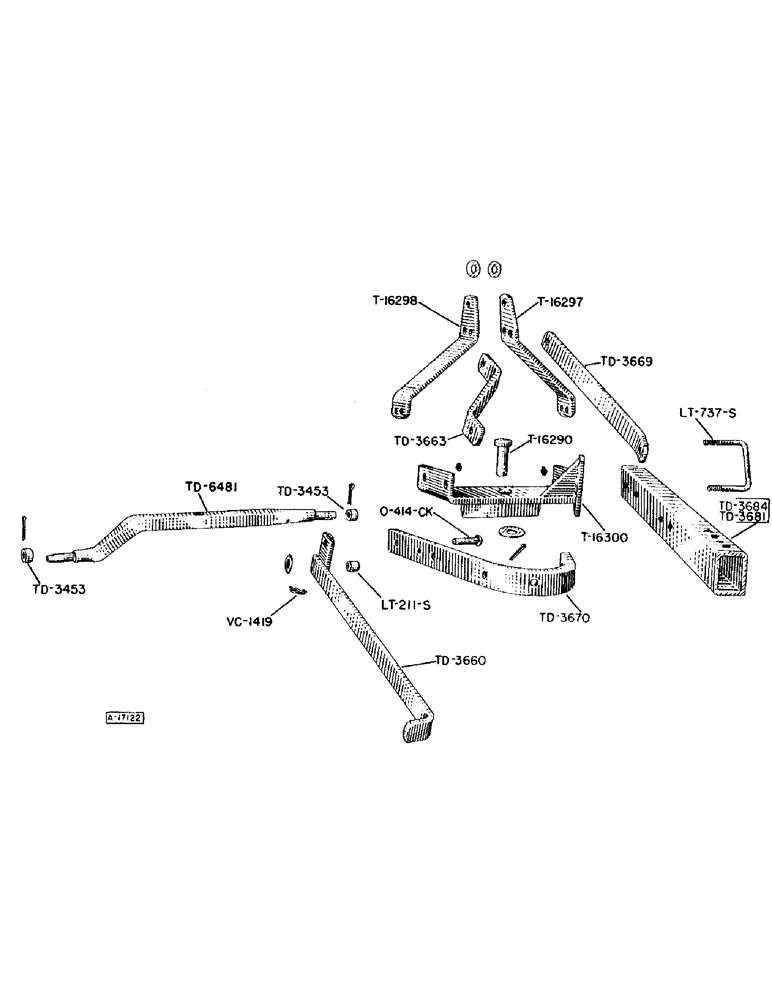

Запчасти Case IH 302 (04) - FRAME AND BEAMS, 1958 AND LATER, 301 AND 302

TD3453

COLLAR - pull bar (1-3/8" rd. x 3/4") (YR. 58-)

2шт.

1/4" X 1-3/4" COTTER PIN (301)

2шт.

1/4" X 1-3/4" COTTER PIN (302)

3шт.

TD3660

STAND - (YR. 58-)

1шт.

3/4" X 3-3/4" HEX. BOLT N.C. W/LOCKWASHER & NUT

1шт.

2" X 13/16" X 9 GA. WASHER

1шт.

1" X 9/16" X 16 GA. WASHER

2шт.

TD3663

BRACE - mast frame, L.H. (YR. 58-)

1шт.

3/4" X 2-1/2" HEX. BOLT N.C. W/LOCKWASHER & NUT

1шт.

TD3669

BRACE - mast beam, R.H. (YR. 58-)

1шт.

3/4" X 5-1/2" HEX. BOLT N.C. W/LOCKWASHER & NUT

1шт.

TD3670

BAR - side (YR. 58-)

1шт.

3/4" X 5" HEX. BOLT N.C. W/LOCKWASHER & NUT

1шт.

TD3681

BEAM - two furrow plow (YR. 58-) (301)

1шт.

TD3684

BEAM - three furrow plow (YR. 58-) (302)

1шт.

TD6481

BAR - pull (YR. 58-)

1шт.

T16290

PIN - pull bar (2" rd. x 4-3/32") (YR. 58-)

1шт.

1/4" X 1-3/4" COTTER PIN

1шт.

3" X 1-3/8" X 8 GA. WASHER

1шт.

T16297

MAST - R.H. (YR. 58-)

1шт.

3/4" X 2-1/2" HEX. BOLT N.C. W/LOCKWASHER & NUT

1шт.

3/4" X 3-1/2" HEX. BOLT N.C. W/LOCKWASHER & NUT

1шт.

2" X 13/16" X 9 GA. WASHER

1шт.

T16298

MAST - L.H. (YR. 58-)

1шт.

3/4" X 3-1/4" HEX. BOLT N.C. W/LOCKWASHER & NUT

1шт.

T16300

PLATE - mast and pull bar anchor (YR. 58-)

1шт.

3/4" X 4-1/4" HEX. BOLT N.C. W/LOCKWASHER & NUT

2шт.

1/4 - 28 STRAIGHT LONGTHREAD LINCOLN FITTING #5013

2шт.

O-414CK

PIN - stand pivot (YR. 58-)

1шт.

LT211S

BUSHING - stand pivot (YR. 58-)

1шт.

LT737S

"U" BOLT - (5/8" rd. x 15") (YR. 58-)

1шт.

5/8" LOCKWASHER & NUTS

2шт.

VC1419

X

COTTER - hair pin, stand pivot pin (YR. 58-)

1шт.
