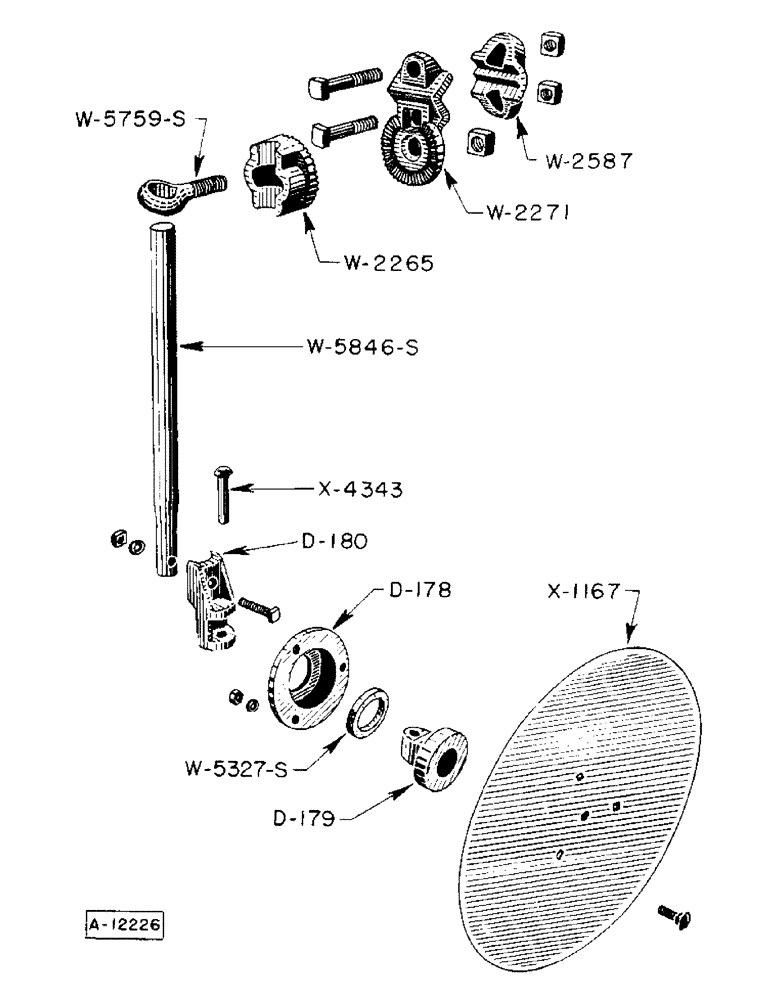

Запчасти Case IH 302 (19) - REVOLVING DISK SCRAPER QUANTITY USED PER UNIT

D178

CAP - retaining (YR. 53-)

1шт.

D179

HUB - (YR. 53-)

1шт.

D180

V-BELT

SWIVEL - standard (YR. 53-)

1шт.

3/8" X 1-3/4" HEX. HD. BOLT W/LOCKWASHER AND NUT

1шт.

W2265

ROSETTE - scraper, standard (YR. 53-)

1шт.

W2271

BRACKET - scraper, standard (YR. 53-)

1шт.

5/8" X 3-1/4" HEX. BOLT W/NUT

1шт.

5/8" X 3-1/2" HEX. HD. BOLT W/NUT

1шт.

W2587

CLAMP - scraper bracket (YR. 53-)

1шт.

W5327S

WASHER - felt, hub (2-1/8" O.D. x 1-1/2" I.D. x 1/4" thick) (YR. 53-)

1шт.

W5759S

EYEBOLT - scraper, standard (YR. 53-)

1шт.

3/4" HEX. NUT

1шт.

W5846S

STANDARD - scraper (1-1/8" rd. x 15-5/16") (YR. 53-)

1шт.

X1167

BLADE - scraper (13-1/2" dia. x 13 gauge) (YR. 53-)

1шт.

5/16" X 1" CARRIAGE BOLT W/LOCKWASHER AND NUT

3шт.

X4343

PIN - rivet (7/16" x 2-1/2" pan head) For D180 swivle (YR. 53-)

1шт.
