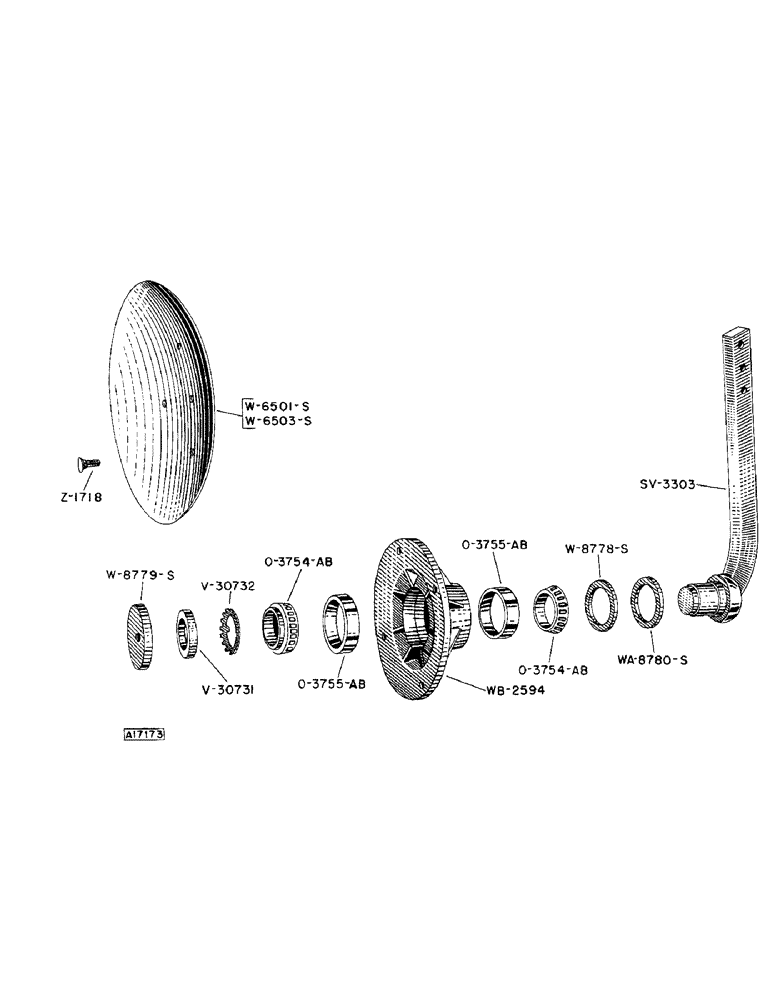

Запчасти Case IH 302 (16) - DISK STANDARD AND BEARING, 1954 - 1957, QUANTITY USED PER UNIT

O3754AB

X

CONE - (Timken #399A) bearing

2шт.

O3755AB

X

CUP - (Timken #394A) bearing

2шт.

SV3303

STANDARD

1шт.

V30731

X

LOCKNUT

1шт.

V30732

X

LOCKWASHER

1шт.

WB2594

SUPPORT - disk

1шт.

1/8" STR. LINCOLN FITTING #5000

1шт.

W6501S

DISK - 24" dia. 3/16" thick, 3-11/16" concavity, heat treated

1шт.

W6503S

DISK - 26" dia. 3/16" thick, 4" concavity, heat treated

1шт.

W8778S

WASHER - oil seal retainer

1шт.

W8779S

CAP - dust

1шт.

WA8780S

OIL SEAL

1шт.

Z1718

BOLT

- (1/2" x 1-3/4" #3 plow w/hex. nut) disk blade

4шт.
