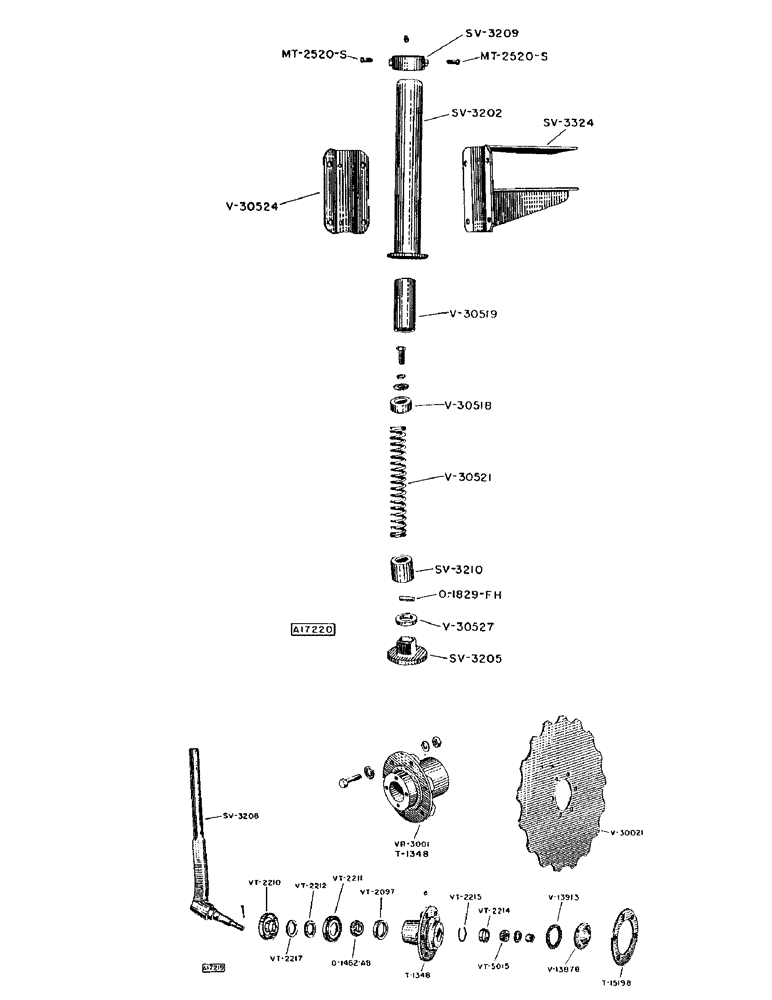

Запчасти Case IH 301 (12) - COULTER

T1348

HUB - (Rep. VR3001 inter.) (YR. 58-)

1шт.

1/8" P.T. STRAIGHT LINCOLN FITTING #5000

1шт.

5/8" X 2" N.C. HEX. BOLT W/LOCKWASHER AND NUT

6шт.

1/4" X 1/2" N.C. HEX. BOLT W/LOCKWASHER

1шт.

T15198

RING - hub flange (YR. 58-)

1шт.

O1462AB

X

CONE - outer bearing (Timken #14125A) (YR. 53-)

1шт.

VT2097

X

CUP - outer bearing (Timken #14276) (YR. 53-)

1шт.

VT2210

X

SHIELD - dust, coulter bearing (YR. 53-)

1шт.

VT2211

X

RETAINER - bearing felt (YR. 53-)

1шт.

VT2212

X

FELT - bearing seal (YR. 53-)

1шт.

VT2214

X

CUP - inner bearing (Timken #O9195) (YR. 53-)

1шт.

VT2215

X

SNAP RING - outer bearing retainer (YR. 53-)

1шт.

VT2217

X

CORK - bearing seal (YR. 53-)

1шт.

VT5015

X

CONE - inner bearing (Timken #O9067) (YR. 53-)

1шт.

O1829FH

X

ROLL PIN - (1/2" x 2") in coulter standard (YR. 53-)

1шт.

MT2520S

SET SCREW - sq. hd. cup point (1/2" x 1") in coulter collar (YR. 53-)

2шт.

SV3202

CYLINDER - coulter (YR. 53-)

1шт.

1/8" P.T. STRAIGHT LINCOLN FITTING #5000

1шт.

SV3205

CAP - coulter cylinder, lower (YR. 53-)

1шт.

3/8" X 1-1/2" N.C. HEX. BOLT W/LOCKWASHER AND NUT

4шт.

SV3208

STANDARD - coulter (YR. 53-)

1шт.

3/4" N.F. THICK SLOTTED NUT

1шт.

1/8" X 1/4" COTTER PIN

1шт.

5/8" X 1-3/4" N.C. HEX. BOLT W/LOCKWASHER (YR. 53-)

1шт.

SV3209

COLLAR - coulter (3" rd. x 1-1/2") (YR. 53-)

1шт.

SV3210

GUIDE - impact (YR. 53-)

1шт.

SV3324

BRACKET - mounting, coulter (YR. 53-)

1шт.

3/4" X 6" REG. HEX. BOLT W/LOCKWASHER AND NUT

2шт.

5/8" X 1-3/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

4шт.

V13878

CAP - hub (YR. 53-)

1шт.

V13913

X

GASKET - hub cap (YR. 53-)

1шт.

V30021

BLADE - notched 22" (YR. 53-)

1шт.

V30518

GUIDE - coulter standard (2-1/2" rd. x 1") (YR. 53-)

1шт.

V30519

COVER

SPACER - spring (YR. 53-)

1шт.

V30521

PITMAN

SPRING - compression (YR. 53-)

1шт.

V30524

PITMAN

CLAMP - coulter mounting bracket (YR. 53-)

1шт.

5/8" X 1-3/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

4шт.

V30527

GUIDE - impact (2-1/2" rd. x 3/8") (YR. 53-)

1шт.

VR3001

HUB - (Use T1348) (YR. 53-57)

1шт.
