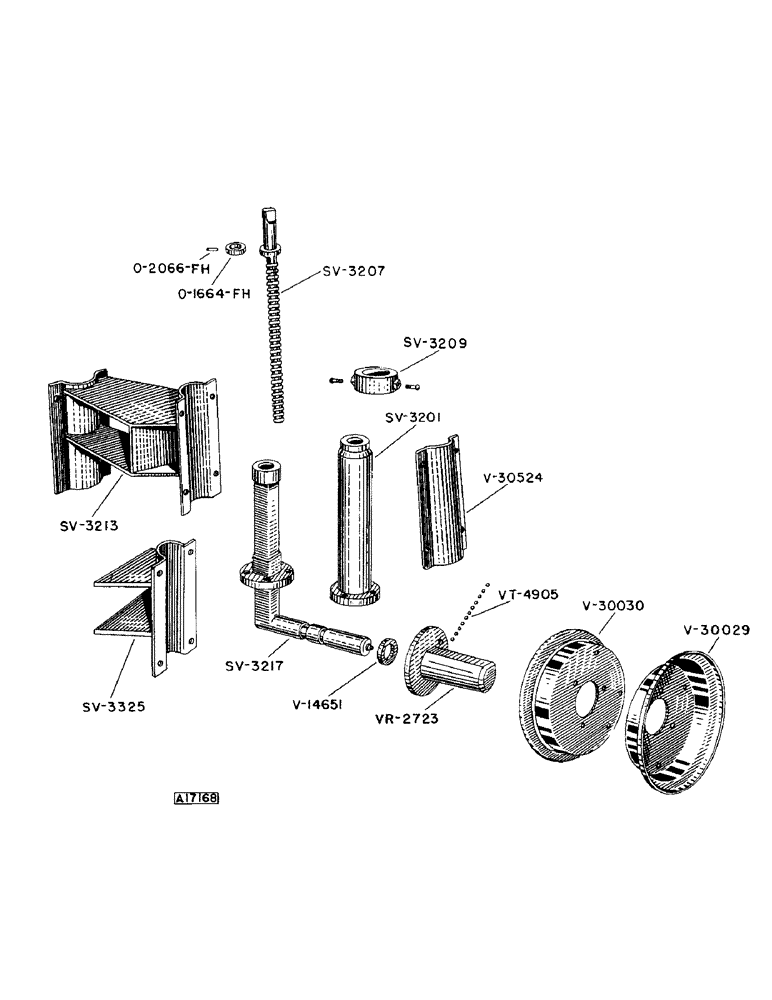

Запчасти Case IH 301 (11) - GAUGE WHEEL, 1953 - 1957, QUANTITY USED PER UNIT

VT4905

X

BALL - (5/16") - steel, For VR2723 hub

11шт.

O1664FH

COLLAR - stop, gauge wheel adjusting

1шт.

O2066FH

X

ROLL PIN - (3/16" x 1-3/4") gauge wheel stop collar

1шт.

SV3201

CYLINDER - gauge wheel

1шт.

3/8" X 1-1/2" N.C. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

4шт.

SV3207

SCREW - adjusting, gauge wheel

1шт.

SV3209

COLLAR - gauge wheel

1шт.

1/2" X 1" SQ. HD. CUP POINT SET SCREW

2шт.

SV3213

BRACKET - mounting, gauge wheel and coulter (Use SV3324 and SV3325)

1шт.

3/4" X 6-1/2" N.C. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

2шт.

SV3217

STANDARD - gauge wheel

1шт.

SV3325

BRACKET - mounting, gauge wheel

1шт.

3/4" X 6-1/2" N.C. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

2шт.

V14651

OIL SEAL - gauge wheel

1шт.

V30029

WIRE HARNESS

WHEEL - outside half (For 4.00 x 9 tire) Has hole for inner tube valve

1шт.

V30030

WHEEL - inside half (For 4.00 x 9 tire)

1шт.

3/8" X 3/4" N.C. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

3шт.

V30524

PITMAN

CLAMP - gauge wheel cylinder

1шт.

5/8" X 1-3/4" N.C. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

4шт.

VR2723

HUB - wheel

1шт.

7/16" X 1-1/4" CARRIAGE BOLT W/HEX. NUT AND LOCKWASHER

3шт.
