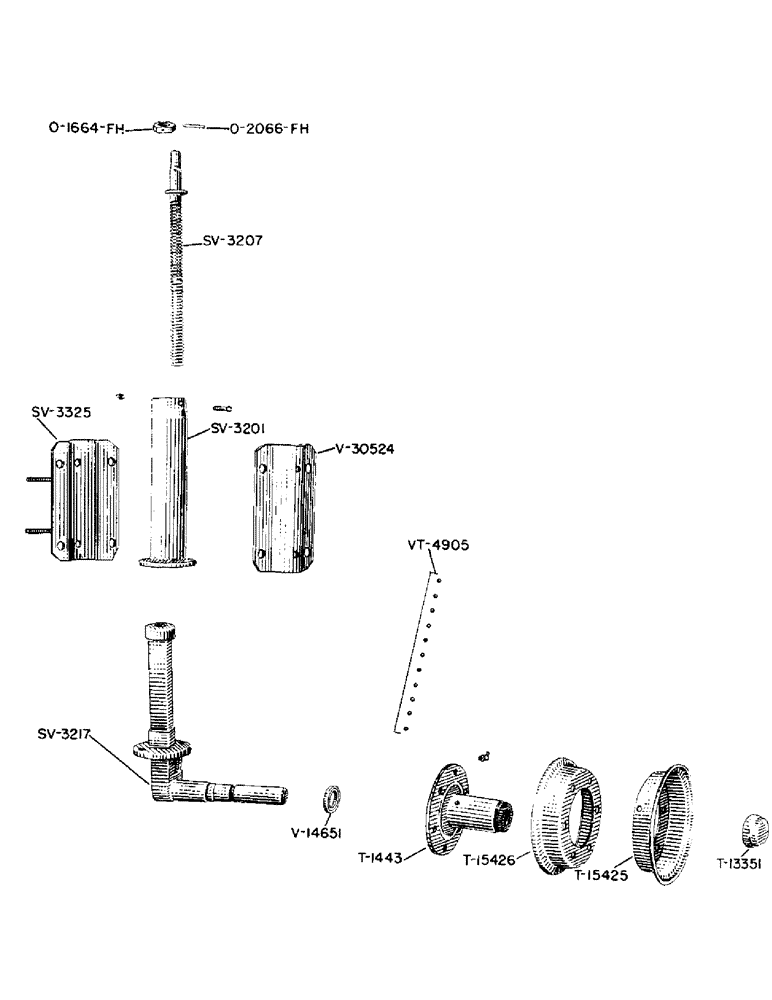

Запчасти Case IH 301 (10) - GAUGE WHEEL, 1958 AND LATER, QUANTITY USED PER UNIT

T1443

HUB - wheel (YR. 58-)

1шт.

1/8" X 45 DEGREE ANGLE LINCOLN FITTING #5200

1шт.

T13351

CAP - hub (YR. 58-)

1шт.

T15425

RIM HALF - w/valve hole for 4.00 x 9 tire (YR. 58-)

1шт.

1/2" X 1-1/4" HEX. BOLT N.F. W/LOCKWASHER & NUT

6шт.

T15426

RIM HALF - w/o valve hole for 4.00 x 9 tire (YR. 58-)

1шт.

VT4905

X

BALL - (5/16") - steel, For T1443 hub (YR. 58-)

11шт.

O1664FH

COLLAR - stop, gauge wheel adjusting (1-3/4" rd. x 5/8") (YR. 58-)

1шт.

O2066FH

X

ROLL PIN - (3/16" x 1-3/4") in adj. screw & nut (YR. 58-)

1шт.

SV3201

CYLINDER - gauge wheel (YR. 58-)

1шт.

3/8" X 1-1/2" N.C. HEX. BOLT W/LOCKWASHER & NUT

4шт.

1/8" STRAIGHT LINCOLN FITTING #5000

1шт.

3/8" X 1-1/4" SQ. HD. SET SCREW

1шт.

SV3207

SCREW - adjusting, gauge wheel (YR. 58-)

1шт.

SV3217

STANDARD - gauge wheel (YR. 58-)

1шт.

SV3325

BRACKET - mounting, gauge wheel (YR. 58-)

1шт.

5/8" X 1-3/4" N.C. HEX. BOLT W/LOCKWASHER & NUT

4шт.

V14651

OIL SEAL - gauge wheel (YR. 58-)

1шт.

V30524

PITMAN

CLAMP - gauge wheel cylinder (YR. 58-)

1шт.
