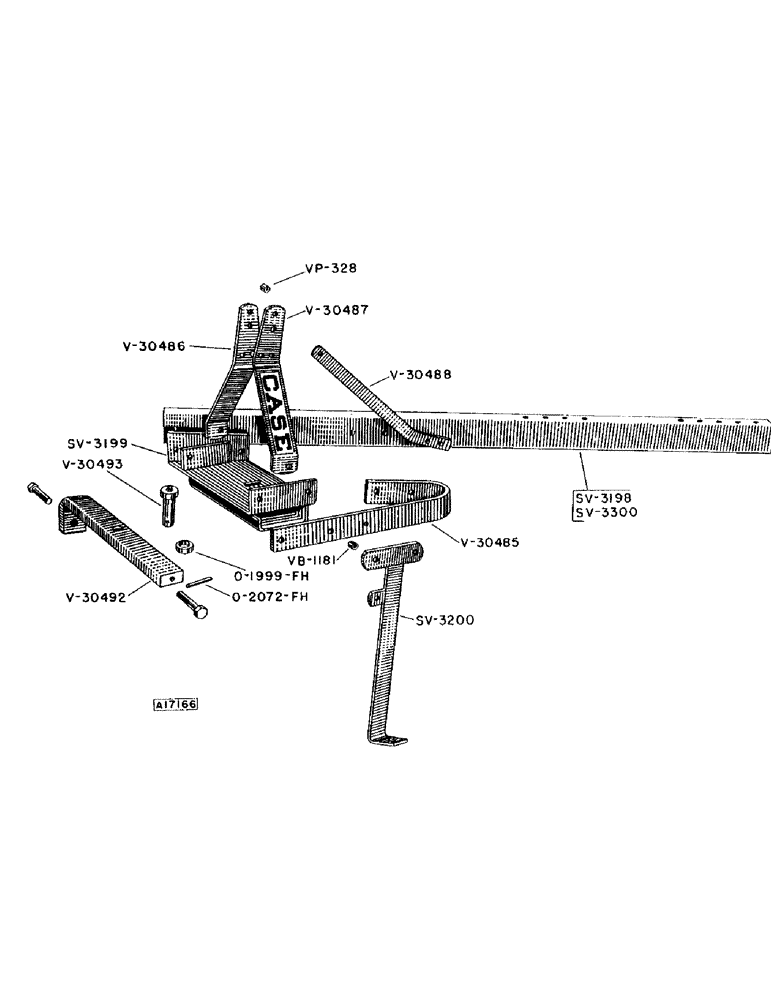

Запчасти Case IH 301 (08) - FRAME AND BEAMS, 1953 - 1954, 301 AND 302

TD3452

BAR - pull (Replaces V30492 interchangeable)

1шт.

O1999FH

COLLAR - stop

1шт.

O2072FH

X

ROLL PIN - (1/4" x 2") O1999FH stop collar

1шт.

SV3198

BEAM - three furrow plow (302)

1шт.

5/8" X 4" N.C. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER (302)

1шт.

5/8" X 4-1/2" N.C. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER (302)

1шт.

5/8" X 5" N.C. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER (302)

2шт.

SV3199

PLATE - mast and pull bar anchor

1шт.

5/8" X 2-3/4" N.C. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

1шт.

5/8" STD. WASHER

1шт.

SV3200

STAND

1шт.

SV3300

BEAM - two furrow plow (301)

1шт.

5/8" X 4" N.C. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER (301)

1шт.

5/8" X 4-1/2" N.C. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER (301)

1шт.

5/8" X 5" N.C. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER (301)

2шт.

V30485

DECAL

BAR - side

1шт.

3/8" X 2" N.C. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

1шт.

V30486

DECAL

MAST - R.H.

1шт.

5/8" X 1-3/4" N.C. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

1шт.

V30487

DECAL

MAST - L.H.

1шт.

5/8" X 2-3/4" N.C. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

1шт.

5/8" X 3" N.C. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

1шт.

V30488

DECAL

BRACE - mast

1шт.

V30492

DECAL

BAR - pull (Use TD3452)

1шт.

7/8" X 4" N.C. HEX. HD. CAP SCREW

2шт.

7/8" N.C. HEX. NUT

1шт.

V30493

DECAL

PIN - pivot, pull bar

1шт.

1/8" STR. LINCOLN FITTING #5000

1шт.

VB1181

BUSHING - stand pivot

1шт.

VP328

SPACER - mast

1шт.
