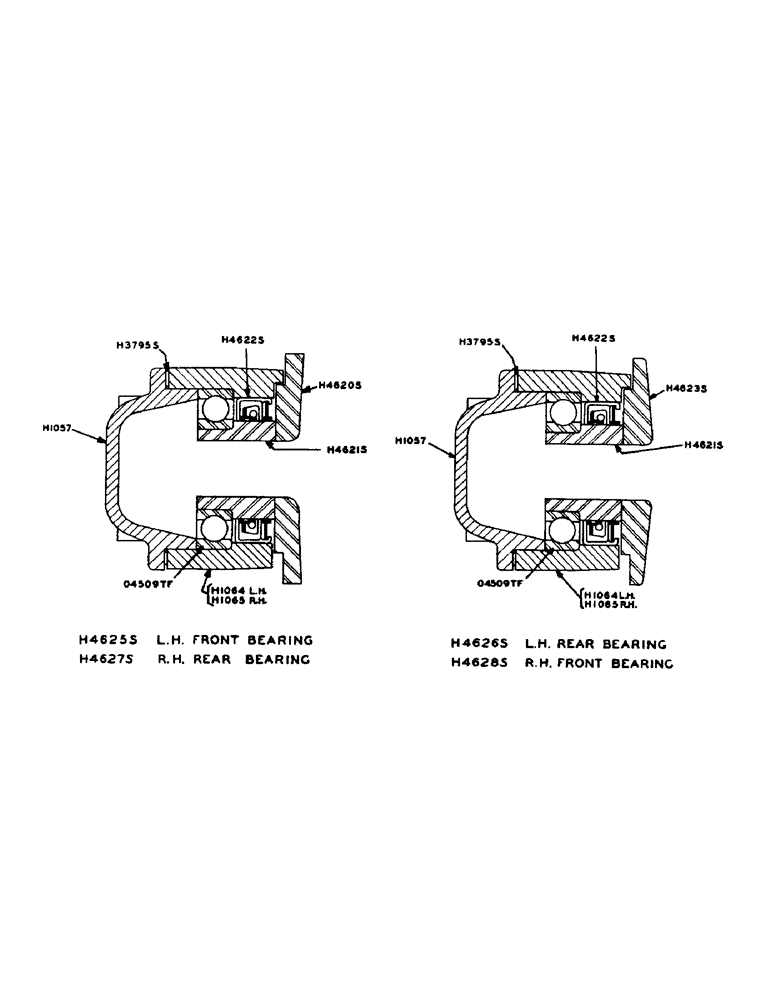

Запчасти Case IH 300-SERIES (13) - GANG SHAFTS

H1057

CAP

- bearing

8шт.

H1063

SPACER

SPOOL - disk spacer (6'0" only)

12шт.

H1063

SPACER

SPOOL - disk spacer (6'9" only)

16шт.

H1063

SPACER

SPOOL - disk spacer (7'6" only)

18шт.

H1063

SPACER

SPOOL - disk spacer (8'3" only)

20шт.

H1064

HOUSING

- bearing, L.H.

4шт.

1/8" str. Lincoln fitting #5000

4шт.

H1065

HOUSING

- bearing, R.H.

4шт.

1/8" 30 degree Lincoln fitting #5100

4шт.

H2594S

DISC

DISK - 22" notched (6'0" only)

16шт.

H2594S

DISC

DISK - 22" notched (6'9" only)

18шт.

H2594S

DISC

DISK - 22" notched (7'6" only)

20шт.

H2594S

DISC

DISK - 22" notched (8'3" only)

22шт.

H3690S

DISK - 24" regular (6'0" only)

16шт.

H3690S

DISK - 24" regular (6'9" only)

18шт.

H3690S

DISK - 24" regular (7'6" only)

20шт.

H3690S

DISK - 24" regular (8'3" only)

22шт.

H3791S

X

NUT - gang shaft

8шт.

3/16 x 1-1/2" cotter

8шт.

H3793S

WASHER

- gang shaft nut

8шт.

H3795S

RING, LOCKING

LOCKWASHER - bearing cap

8шт.

H3906S

SHAFT - gang (6 blades) (8'3" only)

2шт.

H3960S

SHAFT - gang (4 blades) (6'0" only)

4шт.

H3960S

SHAFT - gang (4 blades) (6'9" only)

2шт.

H3961S

SHAFT

- gang (5 blades) (6'9" only)

2шт.

H3961S

SHAFT

- gang (5 blades) (7'6" only)

4шт.

H3961S

SHAFT

- gang (5 blades) (8'3" only)

2шт.

H4373S

SHIM,.0598" Thk

Disk spacer .0598" Thk

1шт.

H4620S

WASHER

- thrust, concave

4шт.

H4621S

SLEEVE

- bearing

8шт.

H4622S

SEAL

- bearing (National #210295)

4шт.

H4623S

WASHER

- thrust, convex (6'0" only)

16шт.

H4623S

WASHER

- thrust, convex (6'9" only)

18шт.

H4623S

WASHER

- thrust, convex (7'6" only)

20шт.

H4623S

WASHER

- thrust, convex (8'3" only)

22шт.

H4625S

BEARING

- gang shaft, housing and bearing complete, front, L.H.

2шт.

H4626S

BEARING

- gang shaft, housing and bearing complete, rear, L.H.

2шт.

H4627S

BEARING

- gang shaft, housing and bearing complete, rear, R.H.

2шт.

H4628S

BEARING

- gang shaft, housing and bearing complete, front, R.H.

2шт.

11544K

DISK - 26" regular (6'0" only)

16шт.

11544K

DISK - 26" regular (6'9" only)

18шт.

11544K

DISK - 26" regular (7'6" only)

20шт.

11544K

DISK - 26" regular (8'3" only)

22шт.

04509TF

BEARING - gang shaft (ND#3208)

8шт.

V16012

SHIM

DISK - 24" notched (6'0" only)

16шт.

V16012

SHIM

DISK - 24" notched (6'9" only)

18шт.

V16012

SHIM

DISK - 24" notched (7'6" only)

20шт.

V16012

SHIM

DISK - 24" notched (8'3" only)

22шт.

V16013

GASKET

DISK - 26" notched (6'0" only)

16шт.

V16013

GASKET

DISK - 26" notched (6'9" only)

18шт.

V16013

GASKET

DISK - 26" notched (7'6" only)

20шт.

V16013

GASKET

DISK - 26" notched (8'3" only)

22шт.

X4801

DISK - 22" regular (6'0" only)

16шт.

X4801

DISK - 22" regular (6'9" only)

18шт.

X4801

DISK - 22" regular (7'6" only)

20шт.

X4801

DISK - 22" regular (8'3" only)

22шт.
