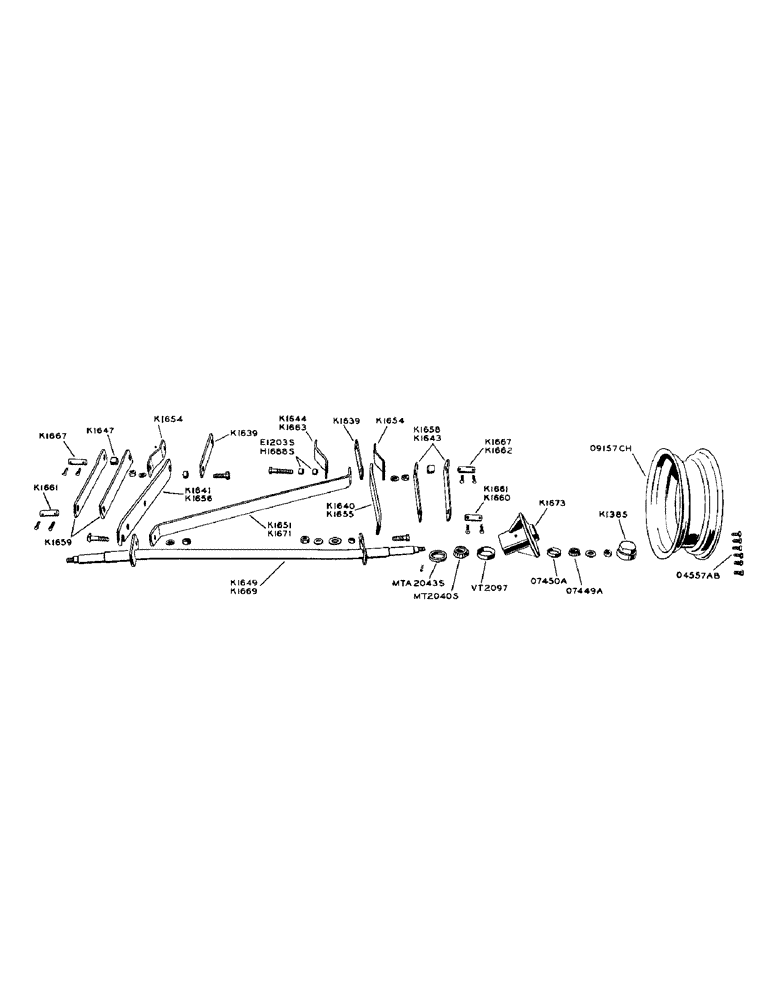

Запчасти Case IH 300-SERIES (10) - WHEELS AND WHEEL FRAME

K1385

CAP - wheel hub

2шт.

K1639

BRACE - drag link

2шт.

K1640

LINK - drag, R.H. wheel (6'0", 6'9" only)

1шт.

3/4" x 3-1/2" N.C. hex. bolt w/nut and lockwasher (6'0", 6'9" only)

1шт.

K1641

LINK - drag, L.H. wheel (6'0", 6'9" only)

1шт.

3/4" x 2-1/4" N.C. hex. bolt w/nut and lockwasher (6'0", 6'9" only)

1шт.

K1643

LINK - drag link to cross shaft arm, R.H. (6'0", 6'9" only)

2шт.

K1644

BRACE - sway bar to frame (6'0", 6'9" only)

1шт.

K1647

BUSHING - for K1643, K1658 and K1659 links

2шт.

K1649

AXLE (6'0", 6'9" only)

1шт.

3/4" x 2" N.C. hex. bolt w/nut and lockwasher (6'0", 6'9" only)

1шт.

3/4" x 2-1/2" N.C. hex. bolt w/nut and lockwasher (6'0", 6'9" only)

1шт.

3/4" N.C. slotted hex. nut (6'0", 6'9" only)

2шт.

3/16" x 1" cotter (6'0", 6'9" only)

2шт.

13/16" std. plain washer (6'0", 6'9" only)

1шт.

K1651

BAR - sway (6'0", 6'9" only)

1шт.

K1654

BRACE - drag link

2шт.

K1655

LINK - drag, R.H. wheel (7'6", 8'3" only)

1шт.

3/4" x 4" N.C. hex. bolt w/nut and lockwasher (7'6", 8'3" only)

1шт.

K1656

LINK - drag, L.H. wheel (7'6", 8'3" only)

1шт.

3/4" x 2-1/4" N.C. hex. bolt w/nut and lockwasher (7'6", 8'3" only)

1шт.

K1658

LINK - drag link to cross shaft arm, R.H. (7'6", 8'3" only)

2шт.

K1659

LINK - drag link to cross shaft arm, L.H.

2шт.

K1660

PIN - links to drag link, R.H. lower (7'6", 8'3" only)

1шт.

3/8" x 1-1/2" cotter (7'6", 8'3" only)

2шт.

K1661

PIN - links to drag link, lower (6'0", 6'9" only)

1шт.

K1661

PIN - links to drag link, lower (7'6", 8'3" only)

1шт.

3/8" x 1-1/2" cotter (6'0", 6'9" only)

4шт.

3/8" x 1-1/2" cotter (7'6", 8'3" only)

2шт.

K1662

PIN - links to cross shaft arm, R.H. (7'6", 8'3" only)

1шт.

3/8" x 1-1/2" cotter (7'6", 8'3" only)

2шт.

K1663

BRACE - sway bar to frame (7'6", 8'3" only)

1шт.

K1667

PIN - links to cross shaft arm, upper (6'0", 6'9" only)

2шт.

K1667

PIN - links to cross shaft arm, upper (7'6", 8'3" only)

1шт.

3/8" x 1-1/2" cotter (6'0", 6'9" only)

4шт.

3/8" x 1-1/2" cotter (7'6", 8'3" only)

2шт.

K1669

AXLE (7'6", 8'3" only)

1шт.

3/4" x 2" N.C. hex. bolt w/nut and lockwasher (7'6", 8'3" only)

1шт.

3/4" x 2-1/2" N.C. hex. bolt w/nut and lockwasher (7'6", 8'3" only)

1шт.

3/4" N.C. slotted hex. nut (7'6", 8'3" only)

2шт.

13/16" std. plain washer (7'6", 8'3" only)

1шт.

3/16" x 1" cotter (7'6", 8'3" only)

1шт.

K1671

BAR - sway (7'6", 8'3" only)

1шт.

K1673

HUB - wheel

2шт.

1/8" 67-1/2 degrees Lincoln fitting #5300

2шт.

K1789

SPACER - drag link to axle mounting, R.H.

1шт.

07449A

CONE - outer bearing (Timken #07098)

2шт.

07450A

CUP - outer bearing (Timken #07204)

2шт.

04557AB

BOLT - hub

12шт.

09157CH

WHEEL - 15 x 5 type K

2шт.

E1203S

BUSHING - drag link braces (6'0", 6'9" only)

3шт.

H1688S

BUSHING - drag link braces (7'6", 8'3" only)

3шт.

MT2040S

X

CONE - inner bearing (Timken #14136A)

2шт.

MTA2043S

OIL SEAL

SEAL - oil wheel bearings

2шт.

VT2097

X

CUP - inner bearing (Timken #14276)

2шт.
