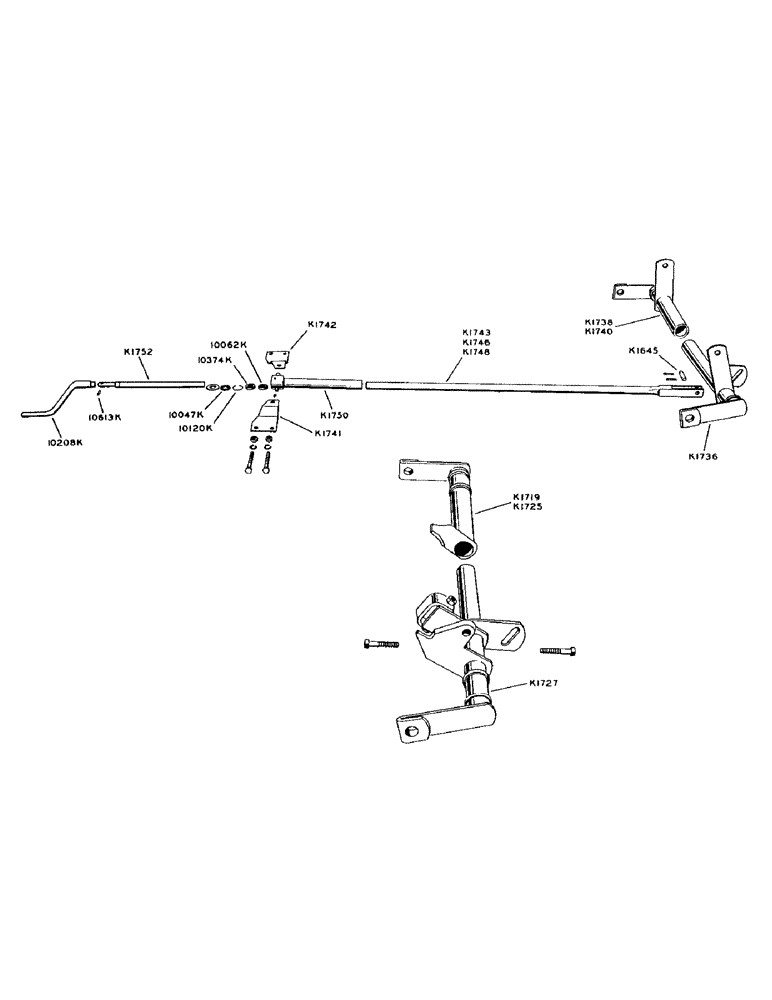

Запчасти Case IH 300-SERIES (08) - DEPTH CONTROL

K1719

SHAFT - control, L.H. section (6'0, 6'9" only)

1шт.

K1725

SHAFT - control, L.H. section (7'6", 8'3" only)

1шт.

K1727

SHAFT - control R.H. section

1шт.

3/4" x 3-1/2" N.C. sq. hd. cup point set screw

2шт.

K1645

PIN - adjusting tube to control shaft, mechanical

2шт.

1/4" x 1-1/4" cotter, mechanical

4шт.

K1736

SHAFT - control, R.H. section, mechanical

1шт.

K1738

SHAFT - control, L.H. section (6'0", 6'9" only), mechanical

1шт.

K1740

SHAFT - control, L.H. section (6'0", 6'9" only), mechanical

1шт.

K1741

BRACKET - crank mounting, R.H., mechanical

2шт.

K1742

LARGE PLATE

BRACKET - crank mounting, L.H., mechanical

2шт.

5/8" x 4-1/2" N.C. hex. bolt w/nut and lockwasher, mechanical

4шт.

K1743

TUBE - control, L.H., mechanical

1шт.

K1746

TUBE - control, R.H. (6'0", 6'9" only), mechanical

1шт.

K1748

TUBE - control, R.H. (7'6", 8'3" only), mechanical

1шт.

K1750

HOUSING - control tube thrust bearing, mechanical

2шт.

1/8" str. Lincoln fitting #5000, mechanical

2шт.

K1752

SCREW - adjusting, mechanical

2шт.

10047K

WASHER - felt, thrust bearing, mechanical

2шт.

10062K

BEARING - thrust, adjusting screw, mechanical

2шт.

10120K

SNAP RING - bearing retainer, mechanical

2шт.

10208K

CRANK - adjusting, mechanical

2шт.

1" std. plain washer, mechanical

2шт.

10374K

WASHER - thrust bearing, mechanical

2шт.

10613K

PIN - groove (5/16" x 1-1/4"), adjusting crank, mechanical

2шт.
