Запчасти Case IH 300-SERIES (15) - DISK BLADE SCRAPERS

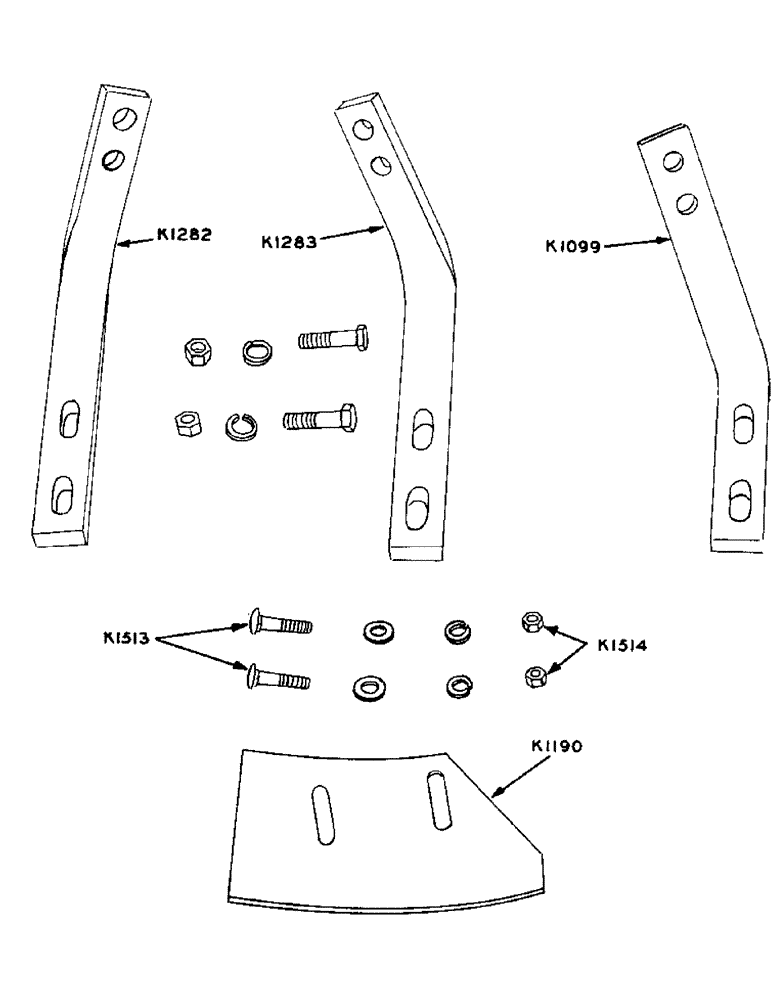

Схема запчастей Case IH 300-SERIES - (15) - DISK BLADE SCRAPERS

№

Артикул

Название

Примечание

Количество

K1099

ARM - scraper, front frame (Special) (6'0", 6'9" only)

1шт.

1/2" x 1-3/4" N.C. hex. bolt w/nut and lockwasher (6'0", 6'9" only)

2шт.

K1190

BLADE - scraper (6'0" only)

16шт.

K1190

BLADE - scraper (6'9" only)

18шт.

K1190

BLADE - scraper (7'6" only)

20шт.

K1190

BLADE - scraper (8'3" only)

22шт.

K1282

ARM - scraper, front frame, L.H. (6'0" only)

8шт.

K1282

ARM - scraper, front frame, L.H. (6'9" only)

9шт.

K1282

ARM - scraper, front frame, L.H. (7'6" only)

10шт.

K1282

ARM - scraper, front frame, L.H. (8'3" only)

11шт.

1/2" x 1-3/4" N.C. hex. bolt w/nut and lockwasher (6'0" only)

16шт.

1/2" x 1-3/4" N.C. hex. bolt w/nut and lockwasher (6'9" only)

18шт.

1/2" x 1-3/4" N.C. hex. bolt w/nut and lockwasher (7'6" only)

20шт.

1/2" x 1-3/4" N.C. hex. bolt w/nut and lockwasher (8'3" only)

22шт.

K1283

ARM - scraper, rear frame, R.H. (6'0" only)

7шт.

K1283

ARM - scraper, rear frame, R.H. (6'9" only)

8шт.

K1283

ARM - scraper, rear frame, R.H. (7'6" only)

10шт.

K1283

ARM - scraper, rear frame, R.H. (8'3" only)

11шт.

1/2" x 1-3/4" N.C. hex. bolt w/nut and lockwasher (6'0" only)

14шт.

1/2" x 1-3/4" N.C. hex. bolt w/nut and lockwasher (6'9" only)

16шт.

1/2" x 1-3/4" N.C. hex. bolt w/nut and lockwasher (7'6" only)

20шт.

1/2" x 1-3/4" N.C. hex. bolt w/nut and lockwasher (8'3" only)

22шт.

K1513

BOLT - 3/8" x 1-1/2" carr., galvanized (6'0" only)

32шт.

K1513

BOLT - 3/8" x 1-1/2" carr., galvanized (6'9" only)

36шт.

K1513

BOLT - 3/8" x 1-1/2" carr., galvanized (7'6" only)

40шт.

K1513

BOLT - 3/8" x 1-1/2" carr., galvanized (8'3" only)

44шт.

1" x 7/16" x #14 plain washer (6'0" only)

32шт.

1" x 7/16" x #14 plain washer (6'9" only)

36шт.

1" x 7/16" x #14 plain washer (7'6" only)

40шт.

1" x 7/16" x #14 plain washer (8'3" only)

44шт.

3/8" lockwasher (6'0" only)

32шт.

3/8" lockwasher (6'9" only)

36шт.

3/8" lockwasher (7'6" only)

40шт.

3/8" lockwasher (8'3" only)

44шт.

K1514

NUT - 3/8" hex. galvanized (6'0" only)

32шт.

K1514

NUT - 3/8" hex. galvanized (6'9" only)

36шт.

K1514

NUT - 3/8" hex. galvanized (7'6" only)

40шт.

K1514

NUT - 3/8" hex. galvanized (8'3" only)

44шт.
