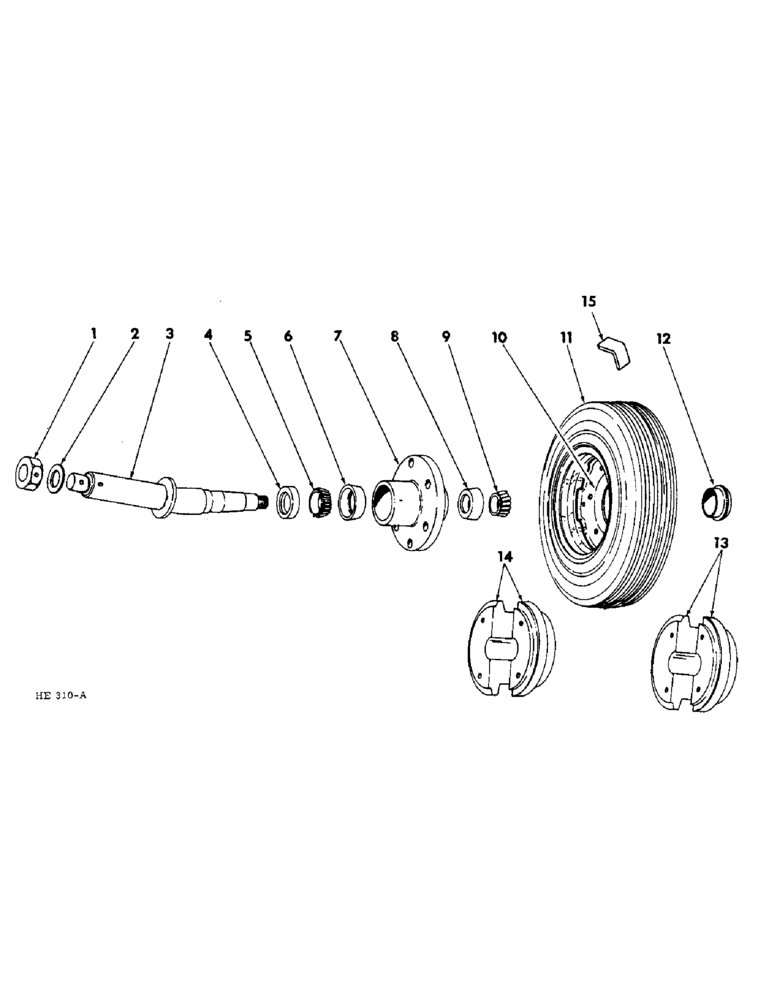

Запчасти Case IH 300 (08) - FRONT FURROW WHEEL

1

596834R1

BAR

furrow wheel adjusting

1шт.

.

616387R1

PIN,3/8" x 2", Coiled

1шт.

2

604925R1

WASHER

1-11/32 x 2-3/4 x 1/4 ga

1шт.

3

596831R1

AXLE

ASSY., front furrow wheel

1шт.

.

21749R1

WASHER

1-9/32 x 2-1/2 x 16

1шт.

.

23447R1

WASHER

2-5/32 x 3 x 14 ga

1шт.

.

619373R1

WASHER

29/32 x 2 x 7 ga pln

1шт.

.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 hex-slt jam

1шт.

.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

4

606556R91

OIL SEAL

SEAL, wheel hub oil

1шт.

5

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, wheel hub inner bearing

1шт.

6

663558R1

BEARING CUP

CUP, wheel hub inner bearing

1шт.

7

606468R11

HUB

front furrow wheel, Includes 651817R1 & 663558R1 cups

1шт.

8

651817R1

BEARING CUP

CUP, wheel hub outer bearing

1шт.

8

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

9

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel hub outer bearing

1шт.

10

481344R91

WHEEL

14 x 8 kb furrow

1шт.

10

598999R1

RIM

WHEEL, 15 x 10 lb furrow

1шт.

.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

6шт.

11

TIRE & TUBE, 9.5-14 6 ply rib tread code I-1 for use w/481344R91 wheel

1шт.

11

TIRE & TUBE, 11.L-15 6 ply rib tread code I-1 for use w/598999R1 wheel

1шт.

12

663906R1

CAP

wheel hub

1шт.

13

597020R1

WEIGHT, 14 inch wheel outer, Special

2шт.

.

189315

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

1/2-13 x 6-1/2 hex hd

4шт.

.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

14

597020R1

WEIGHT, 14 inch wheel inner, Special

2шт.

.

21526R1

BOLT, 1/2-13 x 11 hex hd

4шт.

.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

15

811382C1

PACKAGE

tire valve guard service, Consists of

1шт.

.

GUARDS (NSS)

12шт.

.

INSTRUCTION (NSS)

1шт.
