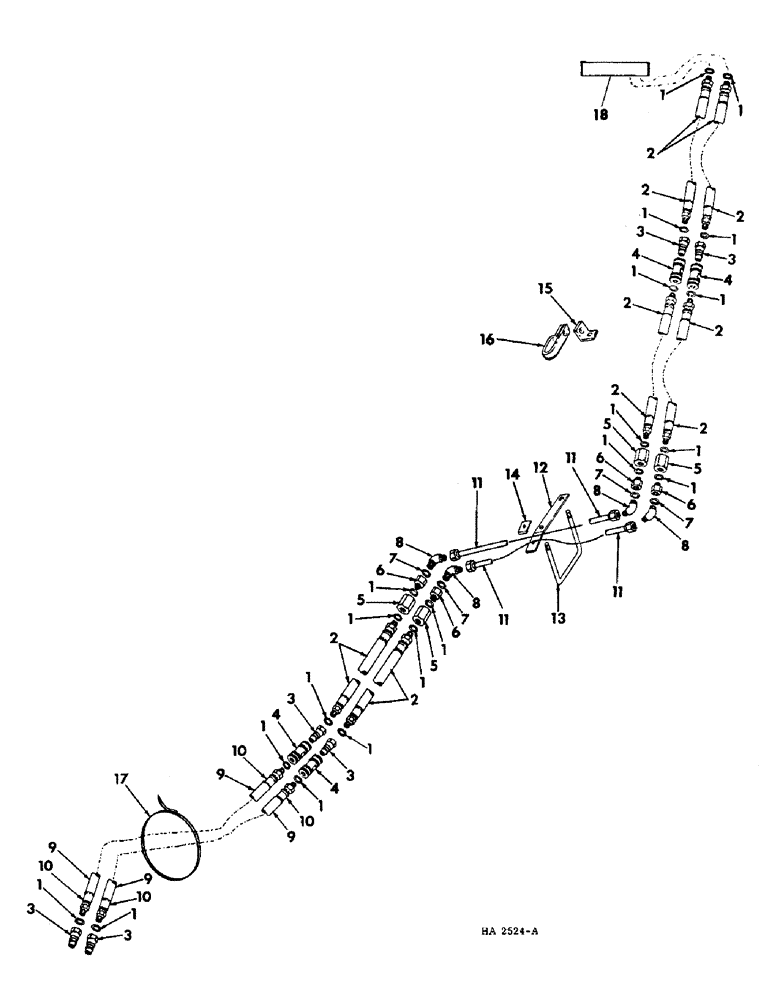

Запчасти Case IH 300 (66) - HYDRAULIC CONNNECTIONS, THIRD MACHINE

1

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hyd connecting

20шт.

2

372437R91

HOSE

1/2 x 112 inch hyd

6шт.

3

395149R1

QUICK MALE COUPLING

COUPLER, hyd hose male

6шт.

4

395150R91

COUPLING, QUICK, FEM

COUPLER, hyd hose female

4шт.

5

584802R1

CONNECTOR, ELEC

UNION, hyd hose adaptor

4шт.

6

407045R1

FITTING

UNION, hyd tube reducer

4шт.

7

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

elbow

4шт.

8

9411105

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

hyd adj str thd 45 deg

4шт.

9

HOSE, 1/2 x 410 inch for 12 ft. machine

2шт.

HOSE, 1/2 x 465 inch for 16 ft. machine, For service order the required length of 1/2 inch one wire braid from bulk stock no. 407117R1 or 1/2 inch two wire braid from bulk stock no. 407120R1 with two 7/8-14 straight thread o-ring boss male fixed couplings 997974R1

1шт.

10

997974R1

FITTING,7/8" x 14 Male ORB, 1/2" Hose ID

COUPLING, quick crimp

4шт.

11

597135R1

TUBE, 1/2 x 114 in length hyd connecting, 12 & 16 ft. second machine 1" OD, 114" Length

2шт.

11

597136R1

TUBE,1" OD, 54.7" Length

1/2 x 54.7 in length hyd connecting, 16 ft. second machine

2шт.

9403216

HYD CONNECTOR,3/4"-16, 37 Degree

UNION, hyd tube extension, 16 ft. second machine

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

tube union

4шт.

12

597137R1

BAR

SUPPORT, hyd conn tube

2шт.

13

596905R1

BOLT,U, 5/8" - 11 x 9.63"

U-BOLT, support clamping

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

14

614323R2

CLAMP

hyd connection tube

2шт.

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

97865H

WASHER

.281 x .875 x .054

2шт.

15

598489R1

ANGLE

clamp support

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

97865H

WASHER

.281 x .875 x .054

1шт.

16

126262H1

CLAMP, hyd tube 1 used 12 ft., 2 used 16 ft.

1шт.

17

816502C1

STRAP

TIE, hose

6шт.

18

CYLINDER ASSY., remote control, For service parts refer to remote control hydraulic cylinder

1шт.
