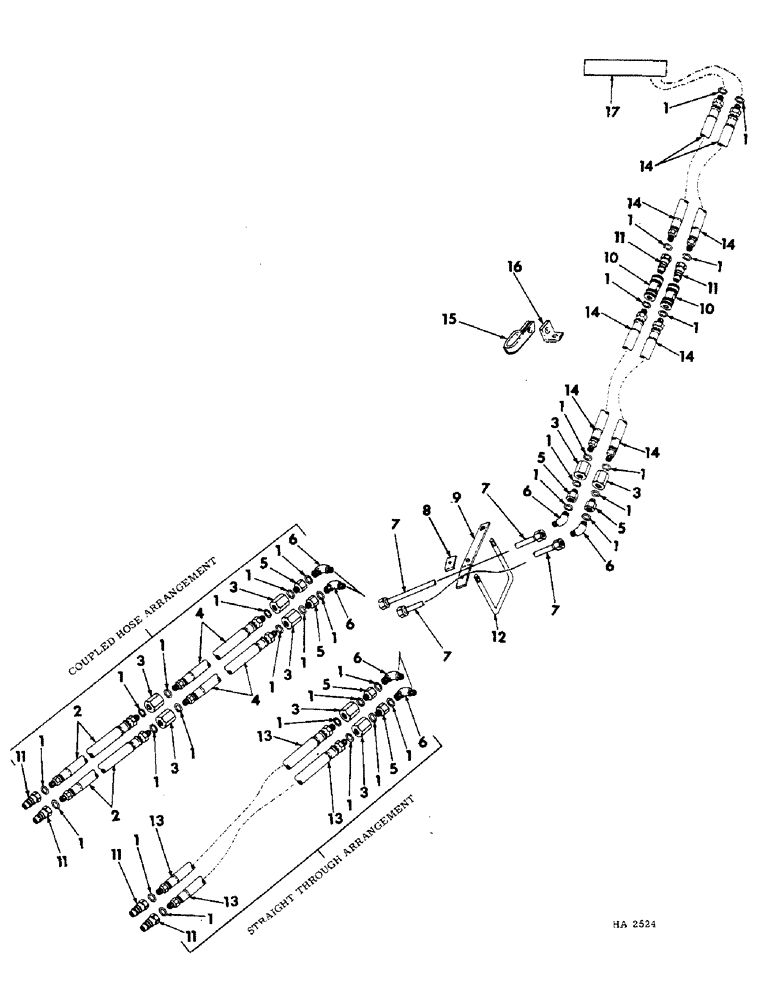

Запчасти Case IH 300 (64) - HYDRAULIC CONNNECTIONS, SECOND MACHINE

1

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING, hyd hose & reducer

8шт.

2

372437R91

HOSE

1/2 x 112 inch hyd

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hose

4шт.

3

584802R1

CONNECTOR, ELEC

UNION, hyd hose adaptor

4шт.

4

461165R91

HOSE, 1/2 x 66 inch hyd

2шт.

5

407045R1

FITTING

UNION, hyd tube reducer

4шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

reducer union

4шт.

6

9411105

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

hyd adj str thd 45 deg

4шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

elbow

4шт.

7

597135R1

TUBE, 1/2 x 114 in length hyd connecting, 12 & 16 ft. front machine 1" OD, 114" Length

2шт.

7

597136R1

TUBE,1" OD, 54.7" Length

1/2 x 54.7 in length hyd connecting, 8 & 16 ft. front machine

2шт.

9403216

HYD CONNECTOR,3/4"-16, 37 Degree

UNION, hyd tube extension, 16 ft. front machine

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

tube union, 16 ft. front machine

4шт.

8

614323R2

CLAMP

hyd connecting tube, 2 used 8 ft., 3 used 12 & 16 ft. front machine, For use on machines w/identification plate 300C1111 or 300C1112, 2 used 12 & 16 ft. machines w/identification plate 300C1113

1шт.

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

(1 per clamp) Hex, 1/4"-20 x 1 1/2", G5

1шт.

97865H

WASHER

9/32 x 7/8 x 16 ga, 1 per clamp

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 per clamp 1/4"-20, G5

1шт.

9

597137R1

BAR

SUPPORT, hyd connecting tube, 2 used 8 ft., 3 used 12 & 16 ft. front machine, For use on machines w/identification plate 300C1111 or 300C1112, 2 used 12 & 16 ft. machines w/identification plate 300C1113

1шт.

10

395150R91

COUPLING, QUICK, FEM

COUPLER, hyd hose female

2шт.

11

395149R1

QUICK MALE COUPLING

COUPLER, hyd hose male

4шт.

12

596905R1

BOLT,U, 5/8" - 11 x 9.63"

U-BOLT, tube support clamping, 2 used 8 ft. 3 used 12 & 16 ft. front machine, For use on machines w/identification plate 300C1111 or 300C1112, 2 used 12 & 16 ft. machines w/identification plate 300C1113

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex, 2 per bolt

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 2 per bolt 5/8"

1шт.

13

478706R91

HOSE ASSY.

HOSE, 1/2 x 175 inch hyd

1шт.

14

372437R91

HOSE

1/2 x 112 inch hyd

4шт.

15

126262H1

CLAMP, hyd tube, 1 used 12 ft., 2 used 16 ft. machine w/identification plate 300C1113

1шт.

16

598489R1

ANGLE

clamp support, For use on machines w/identification plate 300C1113

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

97865H

WASHER

.281 x .875 x .054

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

17

CYLINDER ASSY., remote control, For service parts refer to remote control hydraulic cylinder

1шт.
