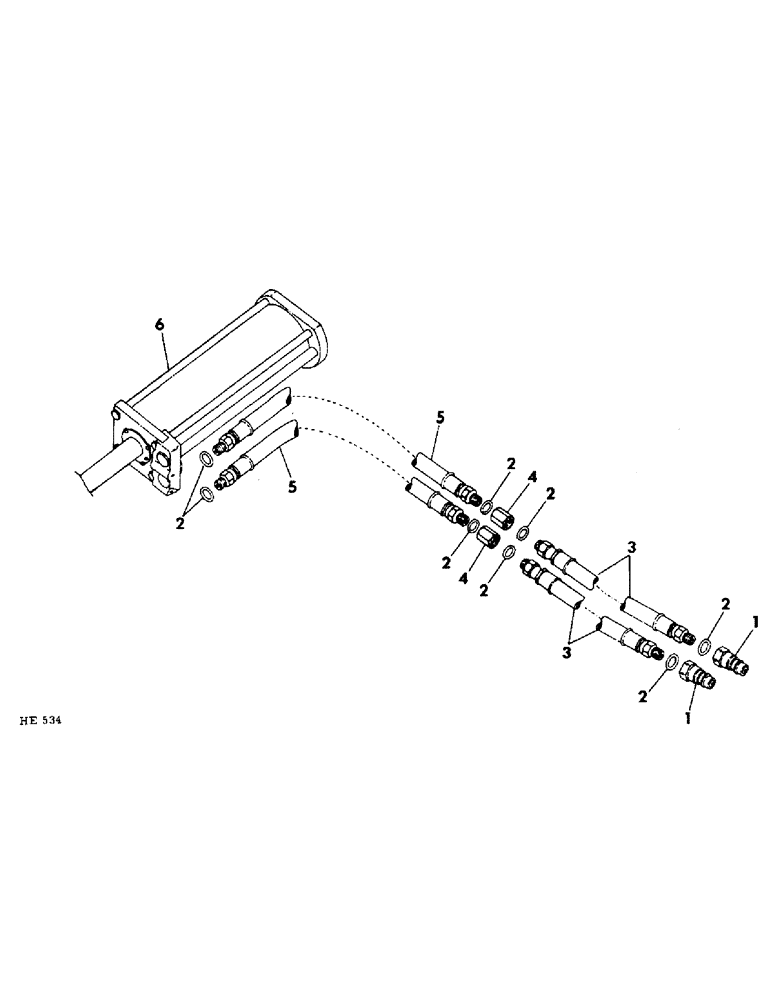

Запчасти Case IH 300 (63) - HYDRAULIC CONNNECTIONS, ALTERNATE FIRST MACHINE

1

395149R1

QUICK MALE COUPLING

COUPLER, hyd hose male

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hyd hose

8шт.

3

372437R91

HOSE

1/2 x 112 in hyd

2шт.

4

584802R1

CONNECTOR, ELEC

UNION, hyd hose adapter

2шт.

5

461165R91

HOSE, 1/2 x 66 inch long hyd

2шт.

6

371292R95

CYLINDER

ASSY., 3-1/2 x 8 hyd, For use with tractors up to 2500 P.S.I. hydraulic system, Optional w/61105C91 cylinder, For service parts refer to remote control hydraulic cylinder

1шт.

6

61105C91

CYLINDER

ASSY., 3-1/2 x 8 hyd w/o stroke control, For use with tractors up to 2500 P.S.I. hydraulic system 1974 and since, Optional w/371292R95 cylinder, For service parts refer to remote control hydraulic cylinder

1шт.

6

546719R91

CYLINDER

ASSY., 3-1/2 x 8 hyd w/o stroke control, For use with tractors up to 2500 P.S.I. hydraulic system 1972 to 1974, For service order 1, 61105C91 cylinder, For service parts refer to remote control hydraulic cylinder

1шт.

6

403842R93

CYLINDER ASSY., 3-1/2 x 8 hyd, For use with tractors up to 3000 P.S.I. hydraulic system, For service parts refer to remote control hydraulic cylinder

1шт.
