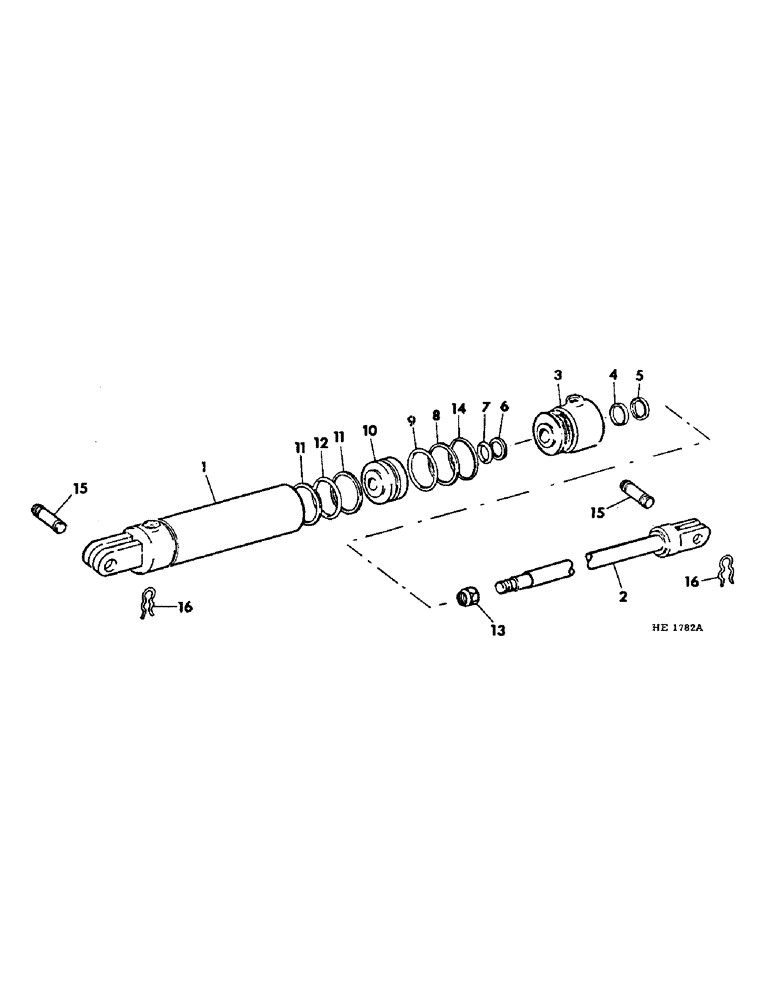

Запчасти Case IH 300 (60) - REMOTE CONTROL HYDRAULIC CYLINDER 3-1/2 X 8

546719R91

CYLINDER

ASSY., remote control hydraulic consists of all parts listed for service order 1, 61105C1 cylinder

1шт.

1

547711R1

BODY ASSY., hyd cyl

1шт.

2

547719R1

ROD

ASSY., piston

1шт.

3

547722R1

HEAD

hyd cyl front

1шт.

4

386421R1

WASHER

wiper felt

1шт.

5

386423R1

WASHER,33.27mm ID x 41.38mm OD x 0.76mm Thk

retainer

1шт.

6

546279R1

WASHER

back-up

1шт.

7

386422R1

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

1-1/4 x 1-1/2 x 1/8 piston seal

1шт.

8

404015R1

BACK-UP RING

WASHER, back-up

1шт.

9

343940R1

O-RING,3.234" ID x 0.139" Width

3-1/4 x 3-1/2 x 18 front head

1шт.

10

547724R1

PISTON

hyd cyl

1шт.

11

375936R1

BACK-UP RING

WASHER, back-up

2шт.

12

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 x 3/16 piston

1шт.

13

9413974

LOCK NUT,7/8"-14, GB

NUT, 7/8-14 lock

1шт.

14

405002R1

RING

RETAINER, front head

1шт.

15

547659R1

PIN

cyl pivot

2шт.

16

547660R1

RETAINER

spring

4шт.

547725R91

SEAL KIT

PACKAGE, hyd cyl seal ring, Consists of

1шт.

9413974

LOCK NUT,7/8"-14, GB

NUT

1шт.

343940R1

O-RING,3.234" ID x 0.139" Width

1шт.

386422R1

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

1шт.

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

1шт.

405002R1

RING

RETAINER

1шт.

386421R1

WASHER

1шт.

386423R1

WASHER,33.27mm ID x 41.38mm OD x 0.76mm Thk

1шт.

404015R1

BACK-UP RING

WASHER

1шт.

546279R1

WASHER

1шт.

375936R1

BACK-UP RING

WASHER

2шт.
