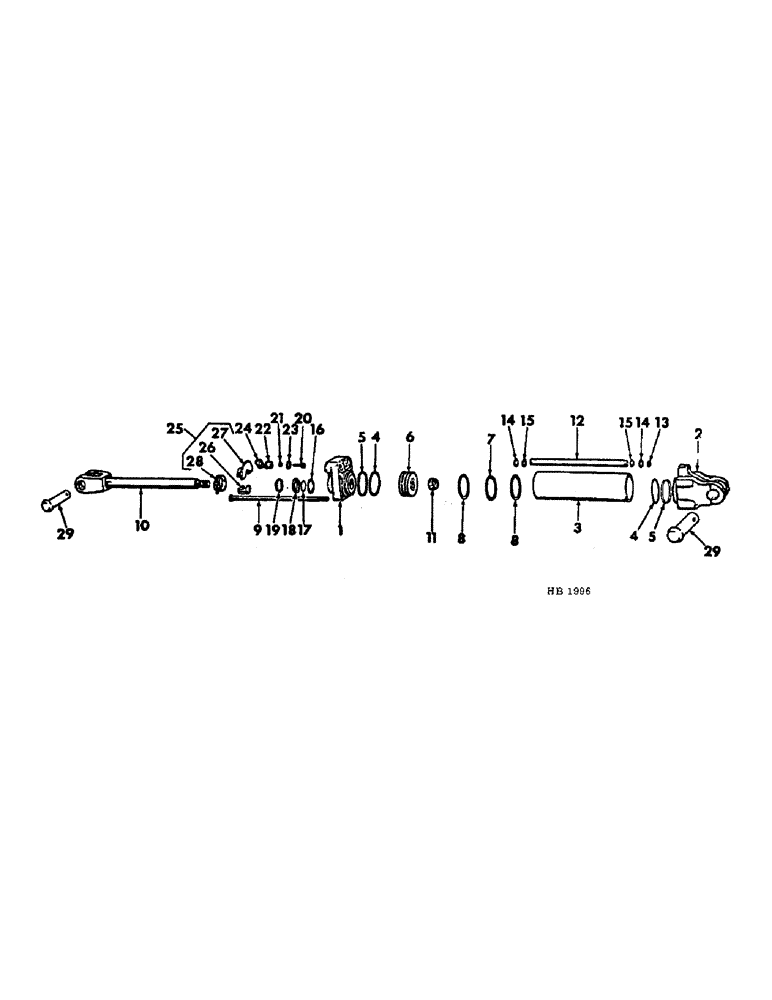

Запчасти Case IH 300 (59) - REMOTE CONTROL HYDRAULIC CYLINDER 3-1/2 X 8

371292R95

CYLINDER

ASSY., 3-1/2 x 8 hyd remote control, Consists of all parts listed below unless otherwise noted

1шт.

1

60786C91

HEAD

ASSY., cylinder front

1шт.

444687

PLUG,Hex Soc, 1/8"-27

Head Hex Soc, 1/8"-27

2шт.

2

60782C1

HEAD

cylinder rear

1шт.

3

354051R1

BARREL,3.5035" ID, .429" OD, 10.26" Length

TUBE, hyd cyl

1шт.

4

343940R1

O-RING,3.234" ID x 0.139" Width

3-1/4 x 3-1/2 x 1/8

2шт.

5

404015R1

BACK-UP RING

WASHER, back-up

2шт.

6

361003R1

HEAD

piston

1шт.

7

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 x 3/16 piston

1шт.

8

375936R1

BACK-UP RING

WASHER, piston head back-up

2шт.

9

361004R1

BOLT,Hex, 1/2" - 20 x 13 7/16"

cylinder tie

4шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex

4шт.

10

60784C91

ROD

ASSY., piston

1шт.

11

9412368

NUT

3/4 hex lock

1шт.

12

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

cyl return

1шт.

13

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32 return tube

2шт.

15

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

return tube o-ring back-up

2шт.

16

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

cyl gland

1шт.

17

383669R1

BACK-UP RING

rod seal back-up

1шт.

18

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, piston rod dust

1шт.

19

354049R1

RETAINER

dust seal

1шт.

20

361006R11

VALVE

ASSY., limit stop

1шт.

21

21590R1

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

3/16 x 5/16 x 1/16

1шт.

22

361007R11

RETAINER

ASSY., limit stop valve

1шт.

23

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

24

361009R1

PLATE

limit stop valve retainer

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

1/4-20 x 9/16 hex-hd

2шт.

25

375426R91

COLLAR

ASSY., stroke limit, Consists of

1шт.

360372R1

COLLAR

1шт.

361010R1

COLLAR

1шт.

361085R91

CLAMP

1шт.

393503R1

THUMB SCREW,5/16" - 24 x 5/8"

1шт.

26

360372R1

COLLAR

stroke limit, Plain half

1шт.

393503R1

THUMB SCREW,5/16" - 24 x 5/8"

thumb

1шт.

27

361010R1

COLLAR

stroke limit, Flanged half

1шт.

28

361085R91

CLAMP

stroke limit collar

1шт.

29

61571C1

PIN

cyl pivot

2шт.

520175R1

CLIP

PIN., q.a. cotter

2шт.

363138R94

PACKAGE

KIT, cyl seal ring service, Consists of items 4, 5, 7, 8, 14, 15, 16, 17, 18, 19, 21 and 23

1шт.
