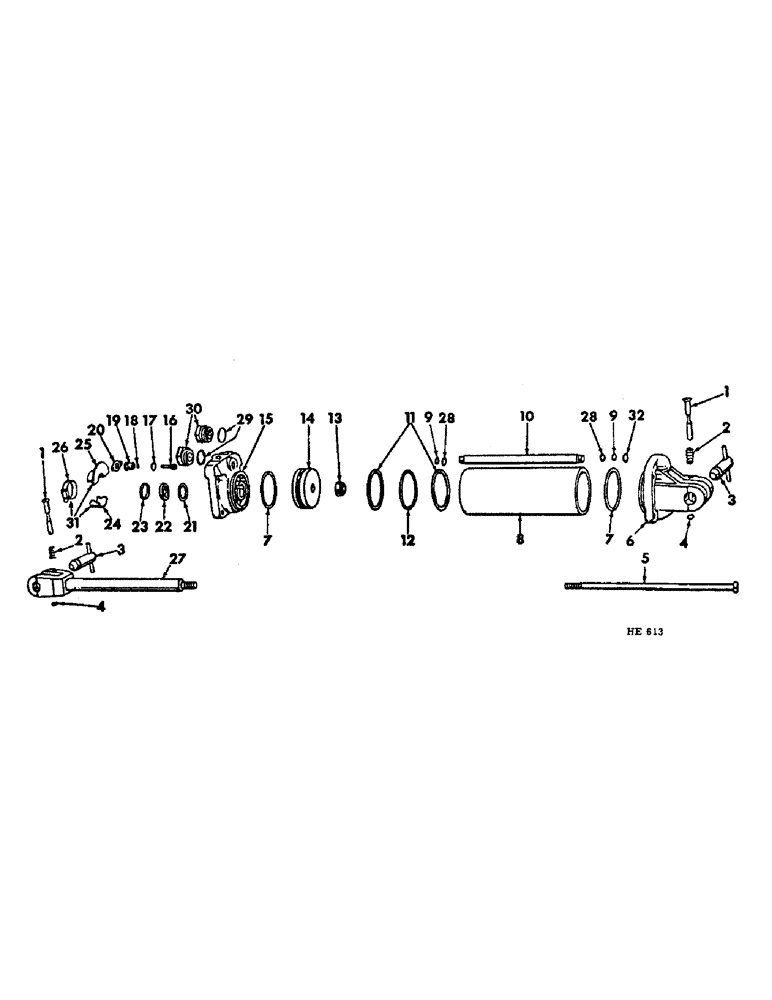

Запчасти Case IH 300 (58) - REMOTE CONTROL HYDRAULIC CYLINDER 3-1/2 X 8

371292R94

CYLINDER

ASSY., 3-1/2 x 8 hyd remote control, Consists of all parts listed below unless otherwise noted, For service order 371292R95 cylinder

1шт.

1

352369R2

PIN

lock

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

2

352370R1

SPRING

lock pin

2шт.

3

352231R11

PIN

cylinder pivot

2шт.

4

354837R1

WASHER

lock pin

2шт.

5

361004R1

BOLT,Hex, 1/2" - 20 x 13 7/16"

cylinder tie

4шт.

120371

NUT,1/2"-20, G5

4шт.

6

371298R3

HEAD

cylinder rear end, For service order 1, 60782C1 head, 1, 404015R1 washer, 1, 61571C1 pin and 1, 520175R1 pin

1шт.

7

343940R1

O-RING,3.234" ID x 0.139" Width

3-1/4 x 3-1/2 x 1/8

2шт.

8

354051R1

BARREL,3.5035" ID, .429" OD, 10.26" Length

TUBE, cylinder

1шт.

9

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

o-ring back-up

2шт.

10

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

cylinder return

1шт.

25-118

NUT,1/2"-20, G5

WASHER, 3/8 lock

1шт.

11

375936R1

BACK-UP RING

WASHER, piston head back-up

2шт.

12

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 x 3/16

1шт.

13

385054R1

NUT

3/4-16 piston rod lock

1шт.

14

361003R1

HEAD

piston

1шт.

15

371297R11

HEAD (CYLINDER)

HEAD ASSY., cylinder front end, For service order 1, 60786C91 head assy., 1, 383669R1 washer, and 1, 404015R1 washer

1шт.

16

361006R11

VALVE

limit stop

1шт.

17

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

18

21590R1

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

3/16 x 5/16 x 1/16

1шт.

19

361007R11

RETAINER

limit stop valve

1шт.

20

361009R1

PLATE

limit stop valve retainer

2шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

1/4-20 x 9/16 hex-hd

2шт.

21

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

cylinder gland

1шт.

22

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, piston rod dust

1шт.

23

354049R1

RETAINER

piston rod dust seal

1шт.

24

360372R1

COLLAR

stroke limit-plain half

1шт.

393503R1

THUMB SCREW,5/16" - 24 x 5/8"

thumb

1шт.

25

361010R1

COLLAR

stroke limit-flanged half

1шт.

26

361085R91

CLAMP

stroke limit collar

1шт.

27

361005R13

ROD

& YOKE, piston, For service order 1, 60784 rod & yoke, 1, 615571R1 pin and 1, 520175R1 pin

1шт.

28

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

O RING, 9/16 x 3/4 x 3/32

2шт.

29

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING, 3/4 x 15/16 x 3/32

2шт.

30

9410360

PLUG

cylinder head

2шт.

31

375426R91

COLLAR

ASSY., stroke limit, Consists of

1шт.

360372R1

COLLAR

1шт.

361010R1

COLLAR

1шт.

361085R91

CLAMP

1шт.

393503R1

THUMB SCREW,5/16" - 24 x 5/8"

1шт.

32

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

363138R94

PACKAGE

seal service, Consists of items 7, 9, 11, 12, 17, 18, 21, 22, 23, and 28

1шт.
