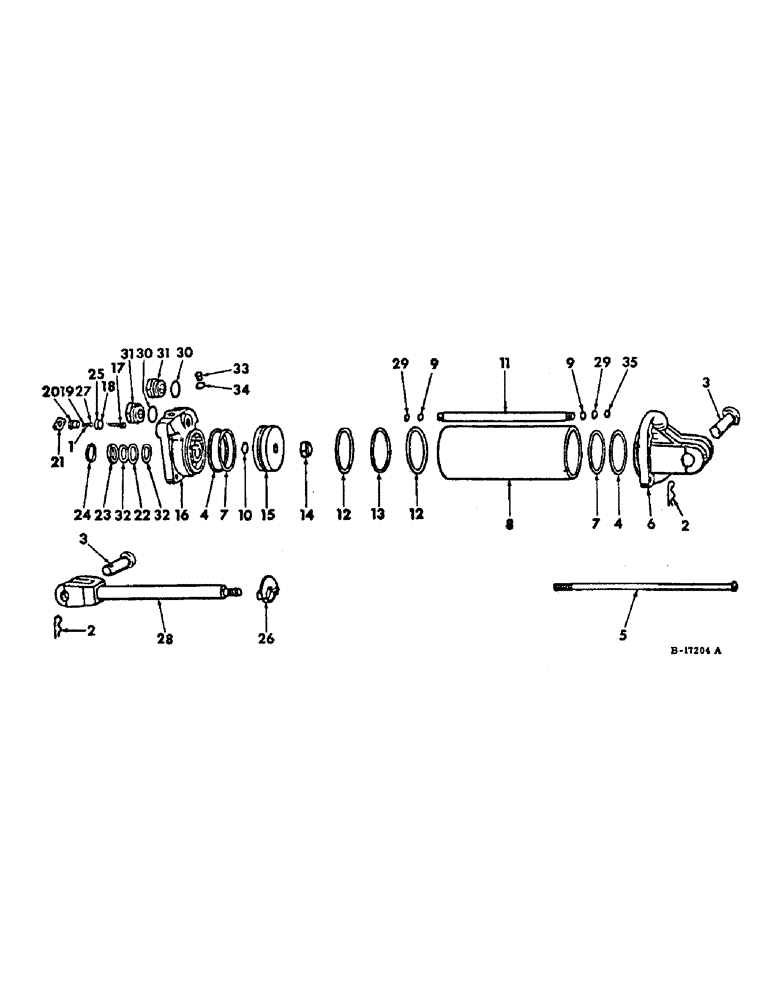

Запчасти Case IH 300 (57) - REMOTE CONTROL HYDRAULIC CYLINDER 3-1/2 X 8

403842R93

CYLINDER ASSY., 3-1/2 x 8 hyd remote control, Consists of all parts listed below unless otherwise noted

1шт.

1

404026R1

BACK-UP RING

o-ring back-up

1шт.

2

520175R1

CLIP

PIN, q.a. cotter

2шт.

3

61571R1

PIN, cylinder pivot

2шт.

4

404015R1

BACK-UP RING

WASHER, o-ring

2шт.

5

404022R1

ROD,5/8" - 11 x 14"

tie

4шт.

25528R1

NUT,5/8"-11, G8

5/8-11 hex

8шт.

6

404020R1

HEAD

rear, For service on 403842R91 cylinders order 1, 547662R1 head and 1, 61571C1 pin

1шт.

6

547662R1

HEAD

rear, For service on 403842R92 & R93 cylinders

1шт.

7

343940R1

O-RING,3.234" ID x 0.139" Width

3-1/4 x 3-1/2 x 1/8

2шт.

8

404021R1

SLEEVE, cylinder

1шт.

9

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

o-ring back-up

2шт.

10

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1 x 1-1/4 x 1/8 piston

1шт.

11

404023R1

TUBE

cylinder return

1шт.

12

375936R1

BACK-UP RING

WASHER, o-ring back-up

2шт.

13

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 x 1/8 piston

1шт.

14

25126R1

LOCK NUT,1 1/8"-12, GC

NUT, 1-1/8 hex

1шт.

15

404019R1

PISTON

1шт.

16

404014R1

HEAD

cylinder front

1шт.

17

404029R1

LOCK VALVE

VALVE ASSY., limit stop

1шт.

18

606271C1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

5/8 x 13/16 x 3/32 housing

1шт.

19

21590R1

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

3/16 x 5/16 x 1/16 limit stop

1шт.

20

404024R91

HOUSING

ASSY., limit stop valve, Includes items 1, 19 & 27

1шт.

21

361009R1

PLATE

limit stop valve retainer

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

1/4-20 x 9/16 hex-hd

2шт.

22

400744R1

RING

quad

1шт.

23

383770R1

WASHER

WIPER, piston rod

1шт.

24

383771R1

SEALING WASHER

RETAINER, piston rod wiper

1шт.

25

404028R1

BACK-UP RING

limit stop valve housing o-ring back-up

1шт.

26

404034R1

CLAMP

stroke limit

1шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

5/16-24 x 3/4 hex-hd

1шт.

27

404027R1

RETAINER

limit stop valve o-ring

1шт.

28

404016R1

ROD

piston for service on 403842R91 cylinder order 1, 547661R1 rod and 1, 61571C1 pin

1шт.

28

547661R1

ROD

piston for service on 403842R92 & 93 cylinders

1шт.

29

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32 cylinder tube

2шт.

30

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32 plug

2шт.

31

9410360

PLUG

7/8-14 str thd o-ring boss

2шт.

32

403622R1

BACK-UP RING

WASHER, quad ring back-up

2шт.

33

404033R1

PLUG

front head

2шт.

34

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

35

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

527324R91

STRIPPER PACKAGE

PACKAGE, seal service, Consists of items 1, 4, 7, 9, 10, 12, 13, 18, 19, 22, 23, 25, 29, 32 and 34

1шт.
