Запчасти Case IH 300 (55) - LAND MEASURE, FEEDSHAFT DRIVEN, 1967 TO 1973

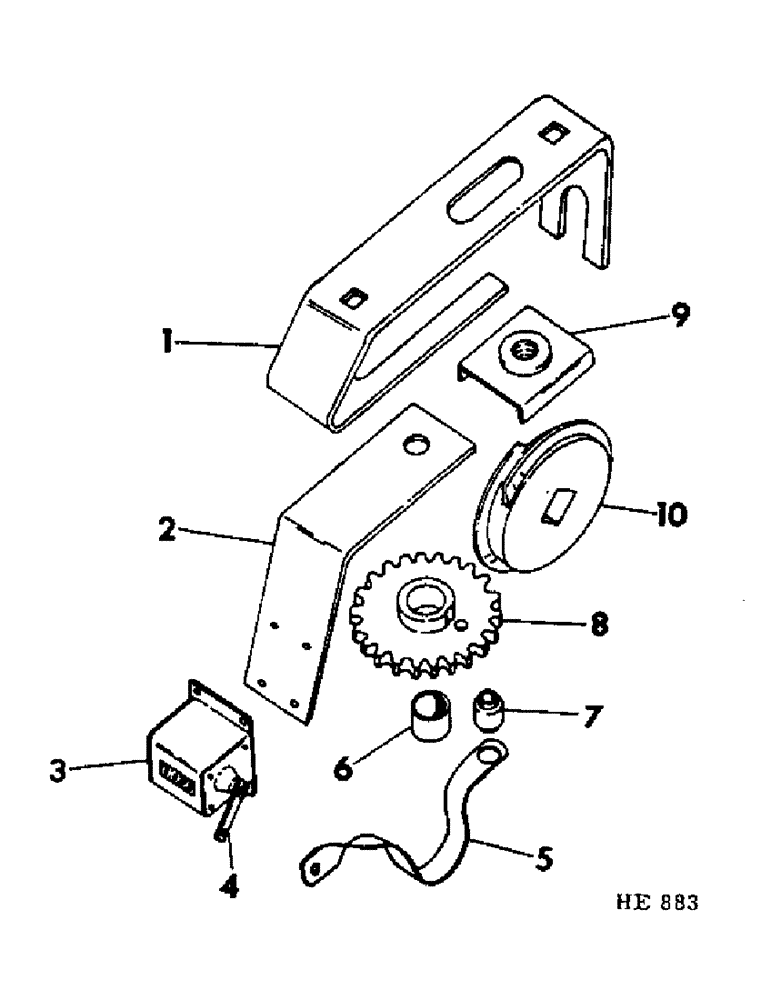

Схема запчастей Case IH 300 - (55) - LAND MEASURE, FEEDSHAFT DRIVEN, 1967 TO 1973
1
5
7
8
6
3
4
10
9
2

Артикул

Название

Примечание

Количество

1

596933R1

BRACKET

land measure

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 crg

2шт.

9413952

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 hex lock

2шт.

2

596935R1

SUPPORT, land measure counter, For use on machines built prior to March 1969 season

1шт.

2

599560R1

BRACKET

SUPPORT, land measure counter, For use on machines built March 1969 season and since

1шт.

3

609535R91

COUNTER

land measure, Includes 1, 816878C1 arm w/screw

1шт.

145-351

RIVET,But Hd, 1/8" x 7/16"

1/8 x 7/16 brs b-hd small

4шт.

4

816878C1

ARM

W/SCREW, land measure counter

1шт.

5

609536R1

SPRING

land measure counter, For use on machines built prior to March 1969 season

1шт.

17058R1

PIN, 3/32 x 3/8 cotter

1шт.

5

598970R1

SPRING

land measure counter, For use on machines built March 1969 season and since

1шт.

17058R1

PIN, 3/32 x 3/8 cotter

1шт.

6

599705R1

SPACER

land measure gear

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex hd

1шт.

611346R1

WASHER

.406 x .875 x .054

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

609534R2

SPACER

counter spring

1шт.

132852

SCREW,Sl Rnd Hd, #10 - 24 x 1 1/4"

#10-24 x 1-1/4 slt rd hd

1шт.

607893R1

WASHER

.203 x .500 x .054

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

8

596941R1

GEAR

28T land measure, 8 ft. machine

1шт.

8

596942R1

GEAR

35T land measure, 12 ft. machine, For service order 1, 815185C1 gear

1шт.

8

815185C1

GEAR

34T land measure, 12 ft. machine

1шт.

8

596941R1

GEAR

28T land measure, 16 ft. machine

1шт.

9

596936R1

SUPPORT

ASSY., gear

1шт.

10

596914R1

GEAR

WORM, land measure gear, 2 used 12 & 16 ft. machine

1шт.

10

604420R1

GEAR

WORM, land measure gear, 8 ft. machine

1шт.

Выбрано товаров: 28
